TRANSPORT ATION MAJOR RE LOCATION 34.56 Technical Reference Manual Chapter Issue 7 Oct 06 Figure 34-21 T ransit Bracket and Screw Location Rear Chase T ransit Bracket Paste Dispenser T ransit Screw View on Right Hand Und…
TRANSPORTATION
MAJOR RELOCATION
Chapter Issue 7 Oct 06 Technical Reference Manual 34.55
Figure 34-20 Transit Bracket and Screw Location
Rear Transit Bracket
Front Transit Bracket
Squeegee Transit Screws
Print Carriage Transit Screw
Camera Transit Screws
(rotary drive only)
TRANSPORTATION
MAJOR RELOCATION
34.56 Technical Reference Manual Chapter Issue 7 Oct 06

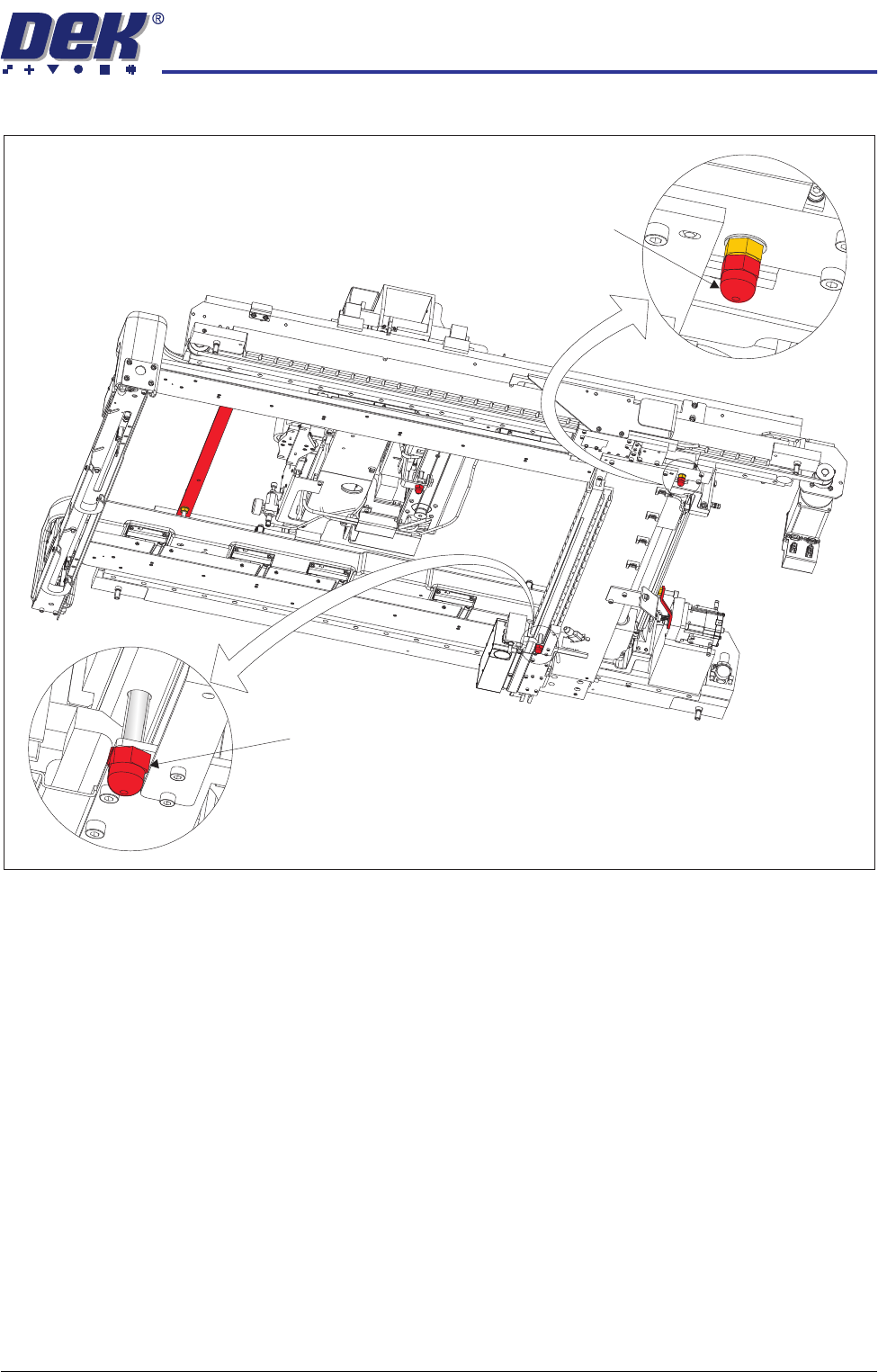

Figure 34-21 Transit Bracket and Screw Location
Rear Chase Transit Bracket
Paste Dispenser Transit Screw
View on Right Hand Underside
TRANSPORTATION
MAJOR RELOCATION
Chapter Issue 7 Oct 06 Technical Reference Manual 34.57
Figure 34-22 Transit Bracket and Screw Location (Camera Linear Drive)
View on Right Hand Underside
Camera Transit Screw
Camera Transit Screw
