TRANS PORTATION MAJOR RELO CATION Chapter Issue 7 Oct 06 Technical Reference Manual 34.91 6. Connect bo th curly air li nes to th e self-seal pneumatic connector s situated either si de of the ProFlow print head mechanis…
TRANSPORTATION
MAJOR RELOCATION
34.90 Technical Reference Manual Chapter Issue 7 Oct 06

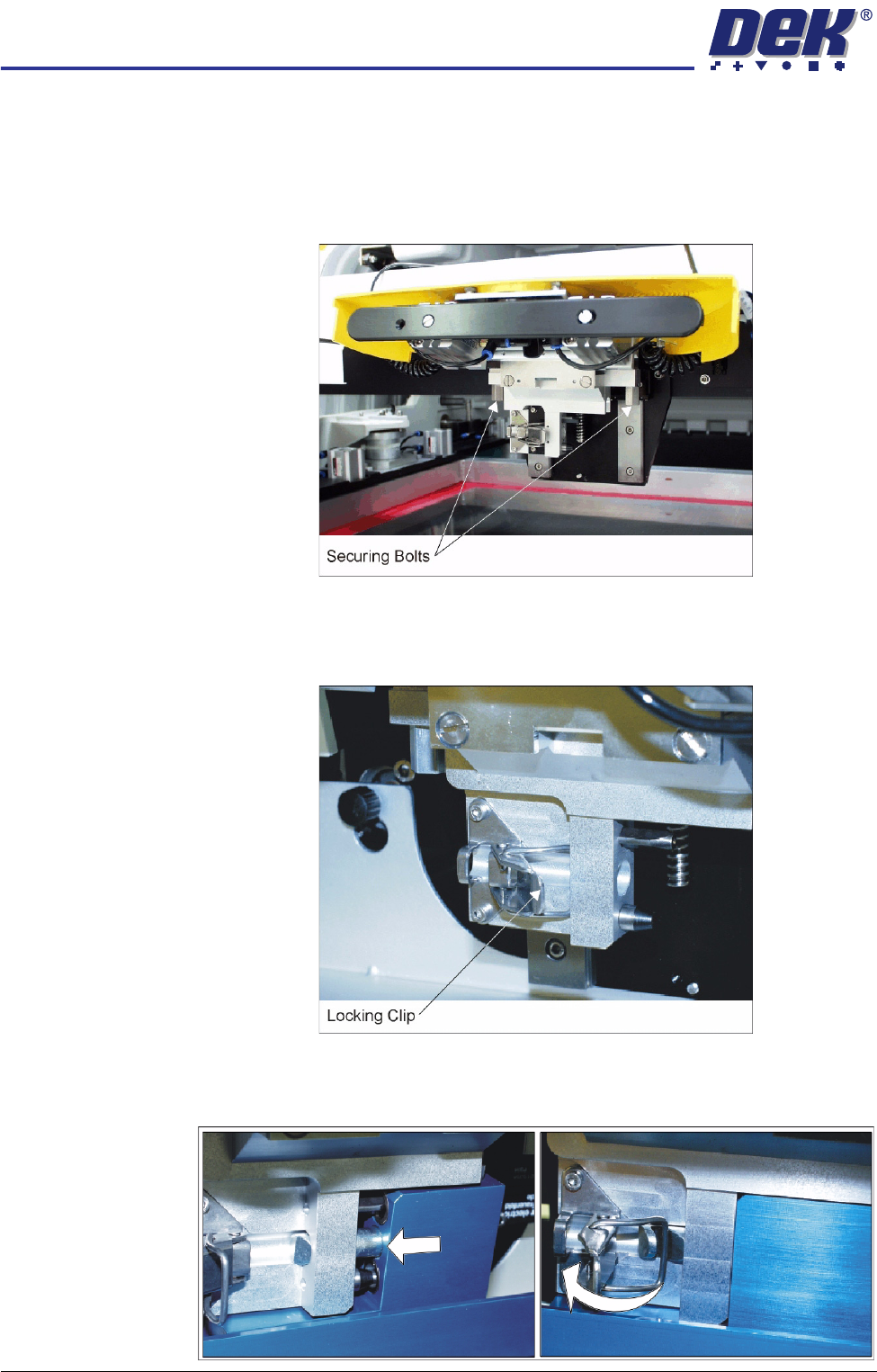

3. Fit the pressure mechanism part of the ProFlow unit to the ProFlow print-
head mechanism bearing block by means of the two securing bolts. Tighten
using a 5mm Allen key.
NOTE
Unit shown in unlatched position to identify bolts.
4. Ensure that the locking clip on the pressure mechanism is pressed over to
the right and clicks into place, as shown in the figure below. This ensures
that the locking clip is in the correct position to secure the transfer head.
5. Locate and fit the ProFlow transfer head unit to the pressure mechanism by
means of the two locating dowels. Slide the unit onto the pressure mecha-
nism. Once the unit is slid fully home, it is secured by closing the locking clip.
TRANSPORTATION
MAJOR RELOCATION
Chapter Issue 7 Oct 06 Technical Reference Manual 34.91
6. Connect both curly air lines to the self-seal pneumatic connectors situated
either side of the ProFlow printhead mechanism, figure in Step 7 refers.
7. Fit the electrical connection 9SK61 ProFlow Paste Level Sensor from the
ProFlow unit into the connector (9PL61) located on the left hand side of the
ProFlow, on the print carriage, figure in Step 2 refers.
NOTE
If Time to Go is an option, an amplifier is connected to 9PL61 and the
connection is made to 9PL62 on the amplifier.
CAUTION
ELECTRICAL CONNECTION.
This electrical connection informs the
machine of ProFlow fitment and must always be connected whilst the
ProFlow unit is fitted otherwise damage may occur if machine is run.
External Solvent
Tank

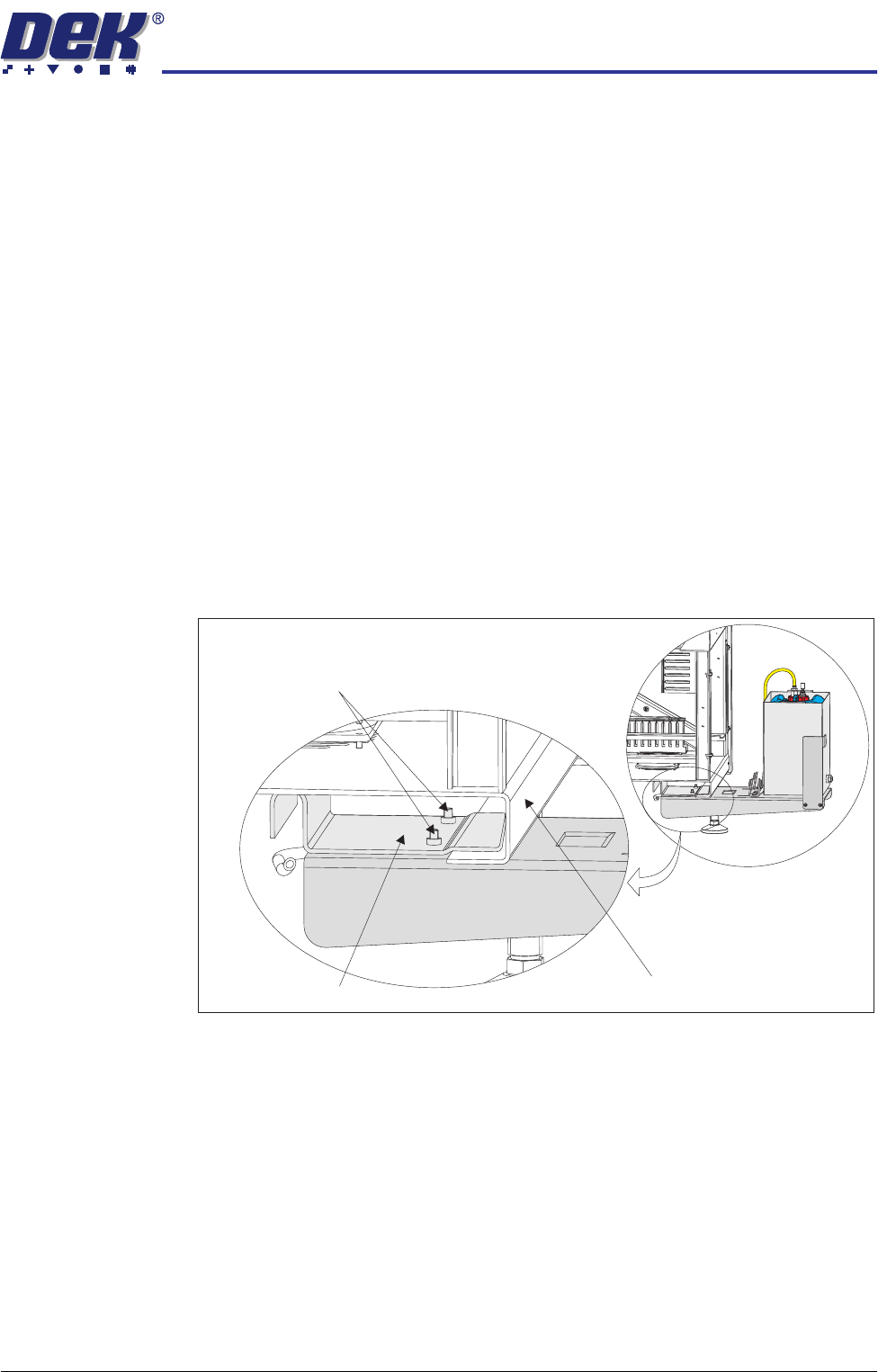

To connect the external solvent tank carry out the following:
1. Remove the rear panel using the maintenance key.
2. Place the external solvent tank on the floor beneath its intended location,
either at the rear or either side of the machine.
3. Supporting its weight, lift the external solvent tank and locate the mounting
bracket on the machine frame.
4. Tighten the two M6 cap head securing screws.
5. Place a full solvent container into the external solvent tank.
6. Remove the cap from the solvent container.
7. Fit the combined cap and 4mm tubing to the solvent container.
Securing Screws
Machine Frame Cross Section
Mounting Bracket
TRANSPORTATION
MAJOR RELOCATION
34.92 Technical Reference Manual Chapter Issue 7 Oct 06

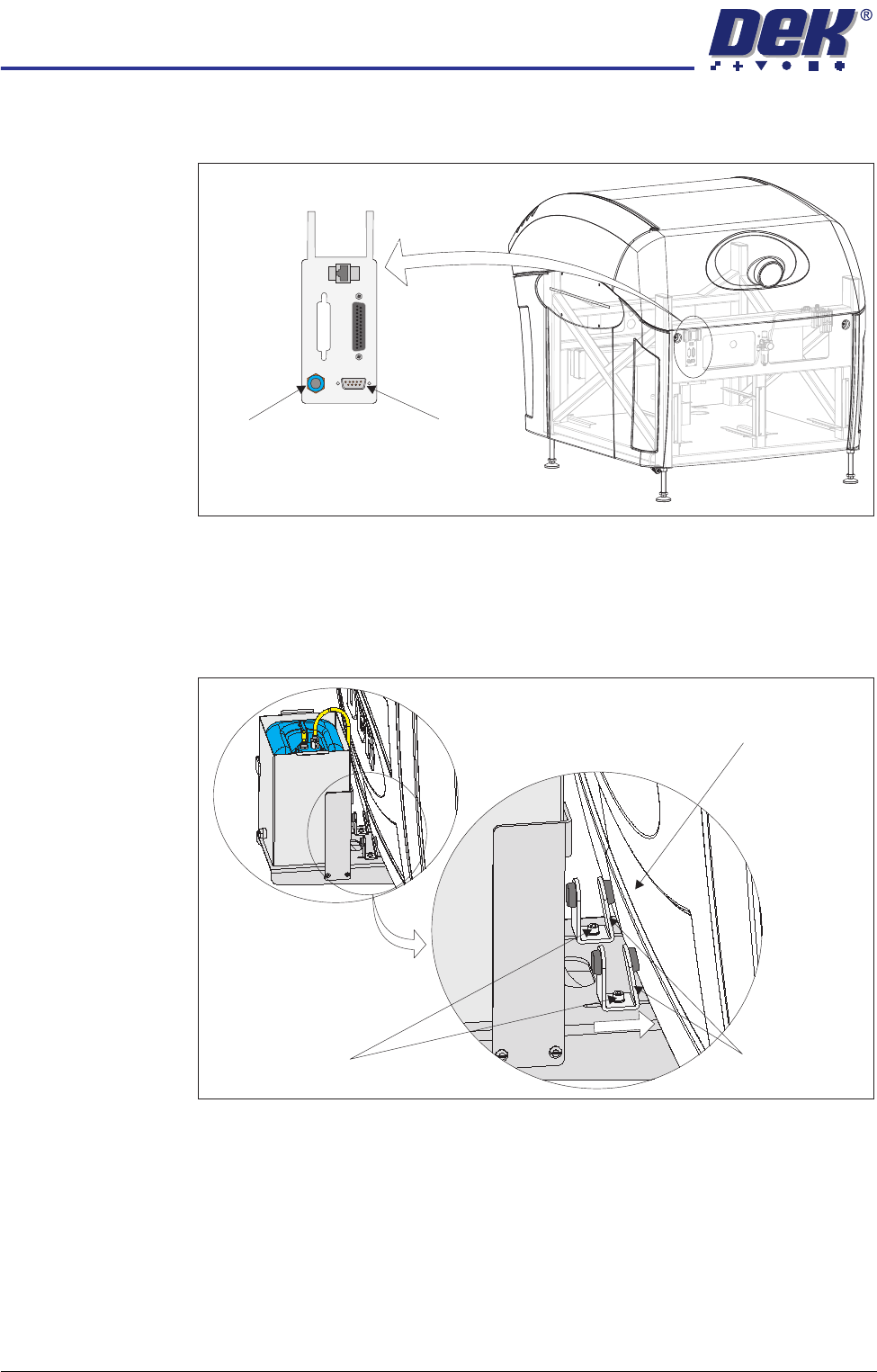

8. Connect the 4mm tubing from the external solvent tank to the solvent fluid
connector on the external services panel.
9. Connect the cable from the external solvent tank to 9SK69 on the external
services panel.
10. Fit the rear cover.
11. Slide the angle brackets towards the machine cover, ensuring that either the
vertical or sloping side as appropriate, abuts the machine cover.
12. Tighten the two M5 cap head securing screws.
Other Items The following items are to be fitted, if applicable:
• Barcode readers
• Interactiv headset
• Paste cartridge
• Squeegees
•Tooling
View on Rear of Machine
POWER ON
PART No. 160740
M/C AVAILABLE
BOARD AVAILABLE
BOARD PASS
D
O
W
N
L
IN
E
BOARD AVAILABLE
BOARD PASS
M/C AVAILABLE
U
P
L
IN
E
FMI POD
Solvent Fluid
Connector
Solvent Sensor
9SK69
Machine Cover
Securing Screws
Angle Brackets
