TRANSPORTATION
PRE POWER UP CHECKS
Chapter Issue 7 Oct 06 Technical Reference Manual 34.97
Pneumatic Supply The machine requires a pneumatic supply of clean, non lubricated air which
should maintain a minimum pressure 5 Bar and a maximum of 8 Bar.
The air should be to ISO 8573.1 standard, quality class 2.3.3, where:
• 2 dirt = 1 micron
• 3 water = -20°C pressure dewpoint
• 3 oil = 1mg/m3
Electrical Supply The factory mains supply for the machine is routed through the front panel
mounted mains isolator switch and on to the M37 power supply enclosure where
various low voltages are distributed throughout the machine.

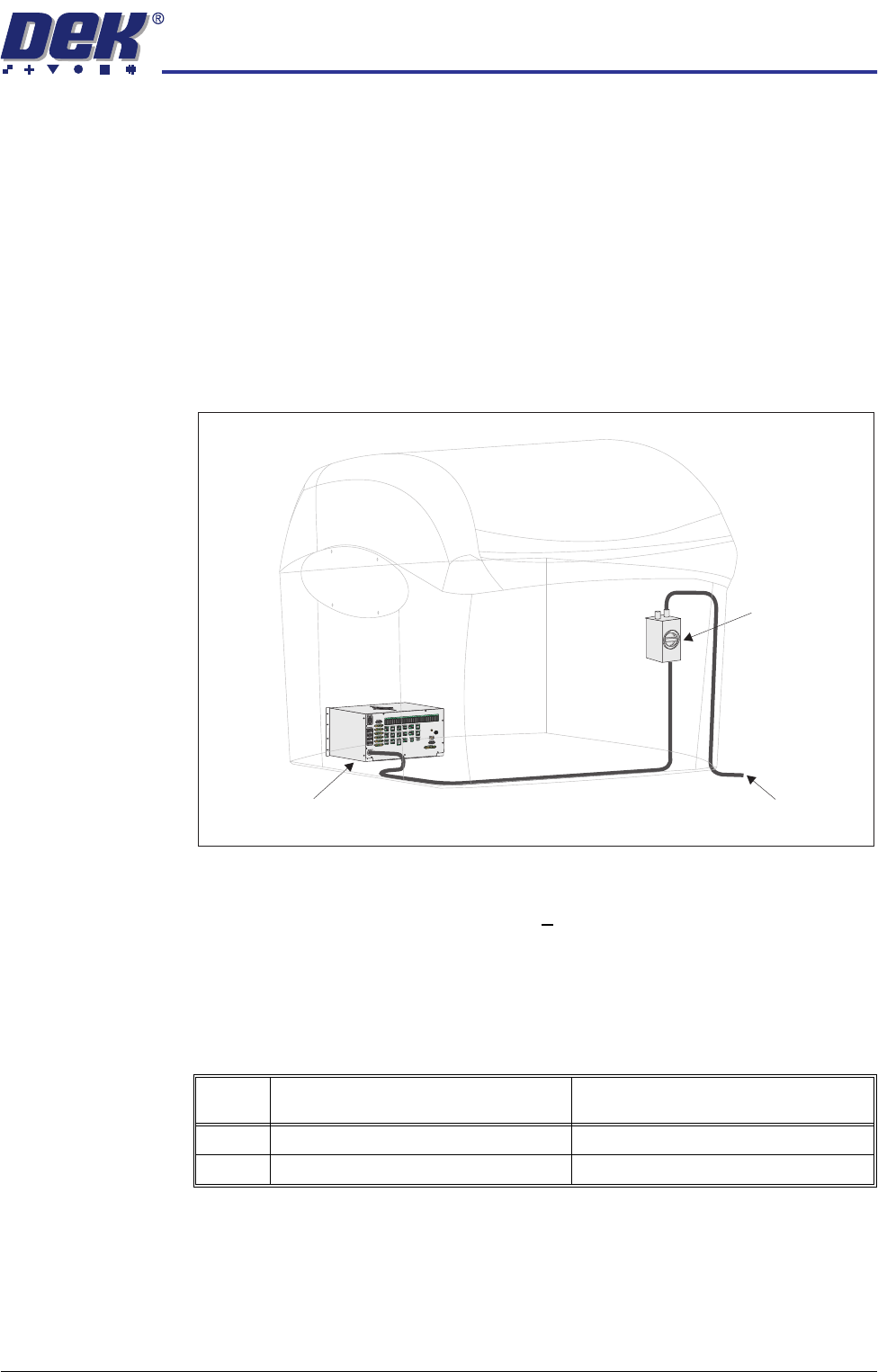

Figure 34-26 Mains Electrical Supply
The machine operates on 100V to 240V +
10% 50/60Hz single phase ac mains.
DEK recommends a power supply capacity of 2.4KVA or greater.
DEK requires additional machine supply protection with the fitment of an
external double pole circuit breaker conforming to national, federal or local
legislation. Use the following table to ensure the recommended circuit breaker
is used:
CAUTION
OVER CURRENT PROTECTION.
An over current circuit breaker protects the
machines internal wiring and components from overheating or catching
fire during fault conditions. Under no circumstances must a circuit
breaker of value greater than 25 Amps be fitted.
Voltage Value of Wall Mounted Circuit Breaker
(without Internal Vacuum Unit)
Value of Wall Mounted Circuit Breaker
(with Internal Vacuum Unit)
115V 10 Amp 25 Amp
230V 4/6 Amp 13/16 Amp
To Factory Mains Supply
Mains Isolator
Switch
M37 Power Supply Enclosure
TRANSPORTATION
PRE POWER UP CHECKS
34.98 Technical Reference Manual Chapter Issue 7 Oct 06
Preparations 1. Ensure machine mains isolator is OFF.
2. Check and verify that the mains electrical supply is single phase 100V to
240V +
10% at 50/60Hz ac.
3. Check that all circuit breakers are in the ON position.
4. Ensure that all access covers and removable panels are closed and are in
place.
5. Ensure that the E Stop button is in the fully out position. To check this, push
the E Stop button until it latches. Turn the button clockwise to release it.
TRANSPORTATION
MACHINE POWER UP SEQUENCE
Chapter Issue 7 Oct 06 Technical Reference Manual 34.99
MACHINE POWER UP SEQUENCE
Hard Disk Check 1. Connect the pneumatic supply to the connection on the rear, bottom left of
the machine, External Services section of this chapter refers.
2. Connect the mains supply to the machine.
3. Turn the Mains Isolation Switch ON.
4. Carry out the following:
Checking Hard
Disk Partition C
a. During the machine initialisation, press the System button when
prompted.
b. To close the DEK program and display the Windows desktop, select
Show Classic to display the classic menu.
c. Select Maint..
d. Select Diagnost.
e. Ensure that System is highlighted and select Select Module.
f. Select the Previous button once to highlight Terminate Control Pro-
gram.
g. Select Run Diagnost.

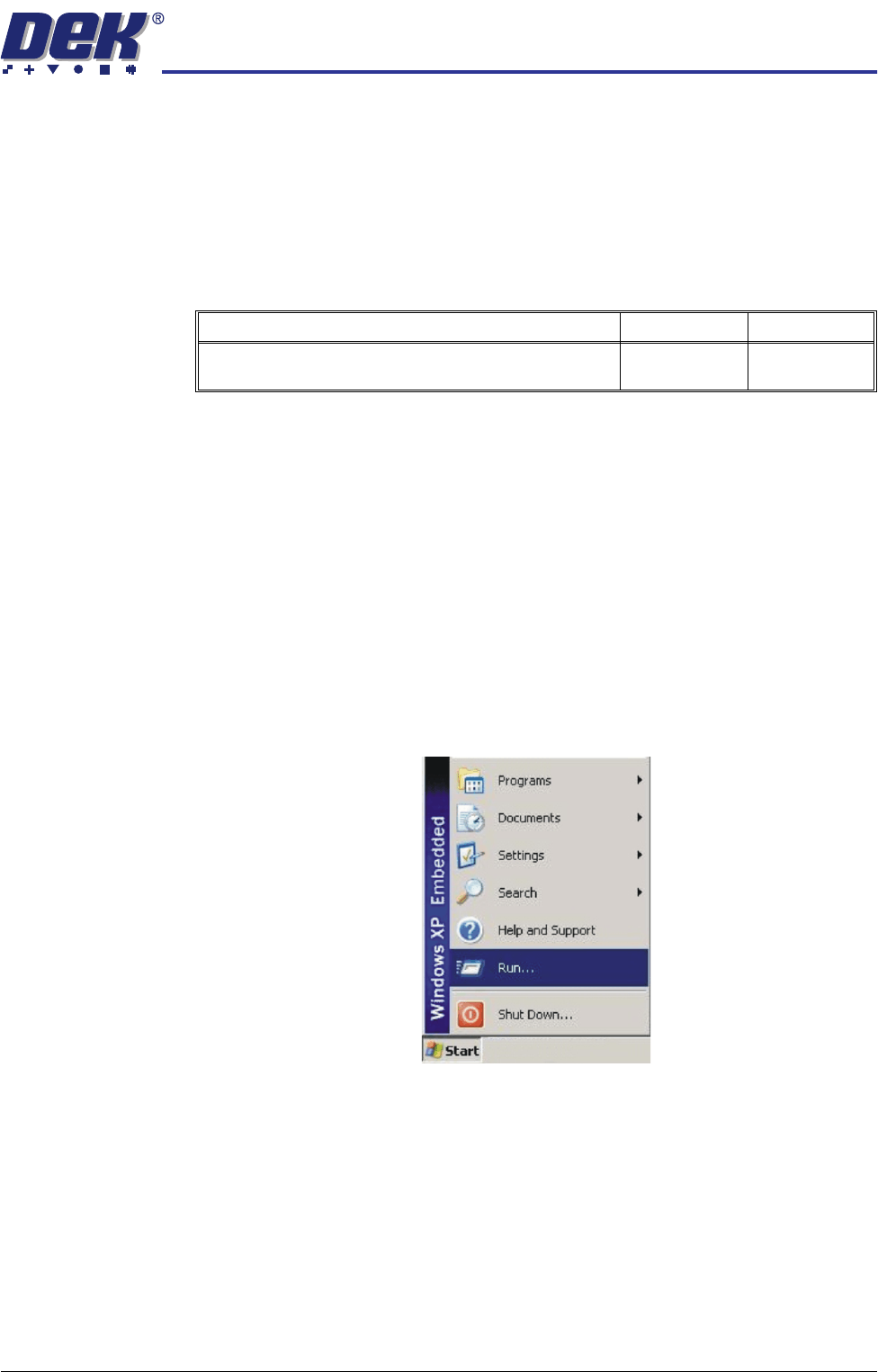

h. Select Start on the taskbar and select Run....
Detail Accept Reject
Check the machine hard disk for any defects caused in
transit using Chkdsk.
