Transit Brackets and Screws
CAUTION
TRANSIT BRACKET AND SCREW REMOVAL. All transit brackets and screws
must be removed from the machine before power is applied. Machine
damage may occur if transit brackets or screws are not removed prior to
power up. Transit brackets and screws are painted red for easy identifi-
cation.
Overview Transit brackets and screws are fitted to the machine to prevent the various
machine assemblies moving during transit, these are:
• Front and rear transit brackets
• Rear chase transit bracket
• Squeegee transit screws
• Print carriage transit screw
• Paste dispenser transit screw (if applicable)
• Camera transit screws
TRANSPORTATION
MAJOR RELOCATION
Chapter Issue 7 Oct 06 Technical Reference Manual 34.55

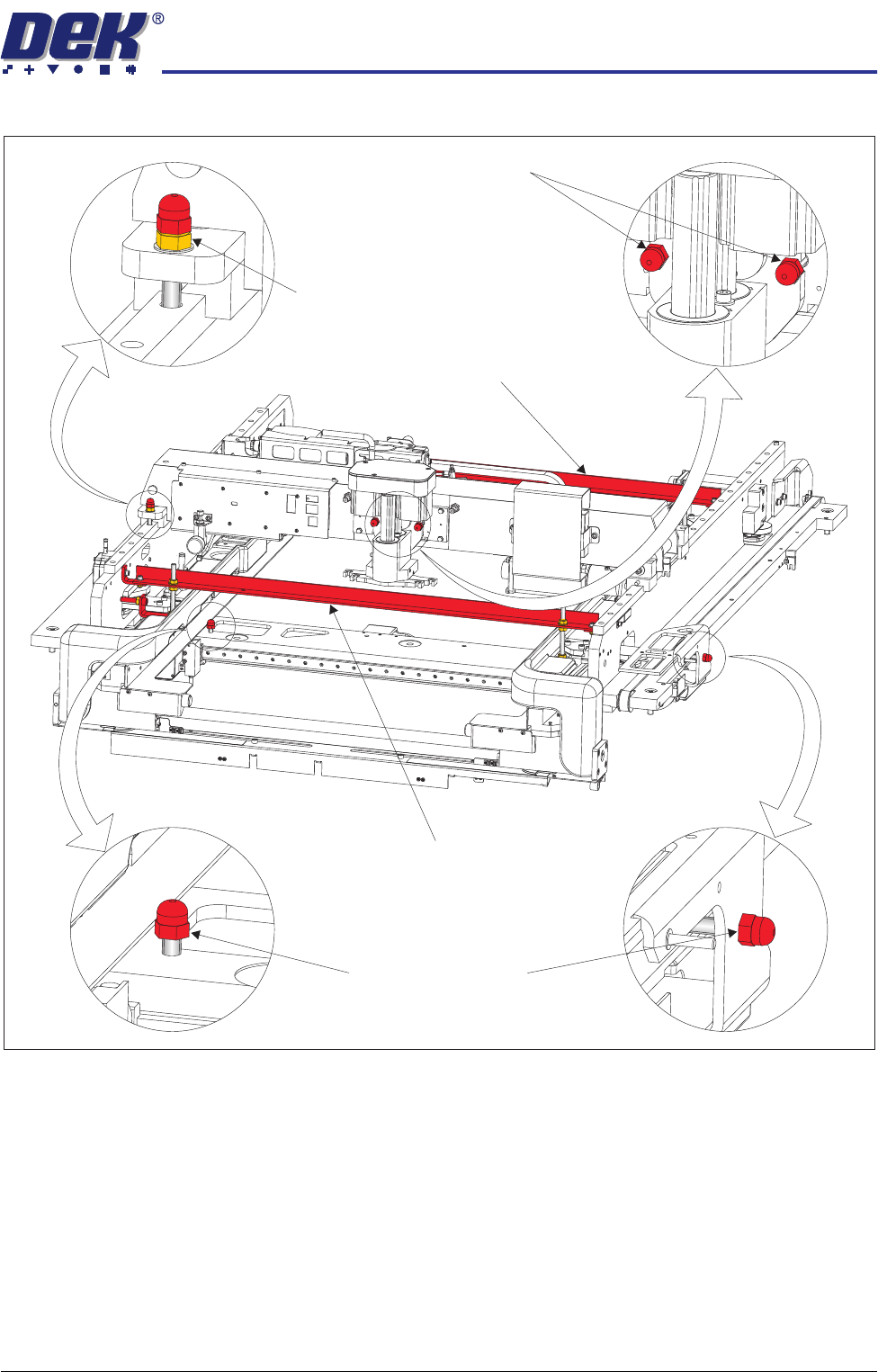

Figure 34-20 Transit Bracket and Screw Location
Rear Transit Bracket
Front Transit Bracket
Squeegee Transit Screws
Print Carriage Transit Screw
Camera Transit Screws
(rotary drive only)
TRANSPORTATION
MAJOR RELOCATION
34.56 Technical Reference Manual Chapter Issue 7 Oct 06

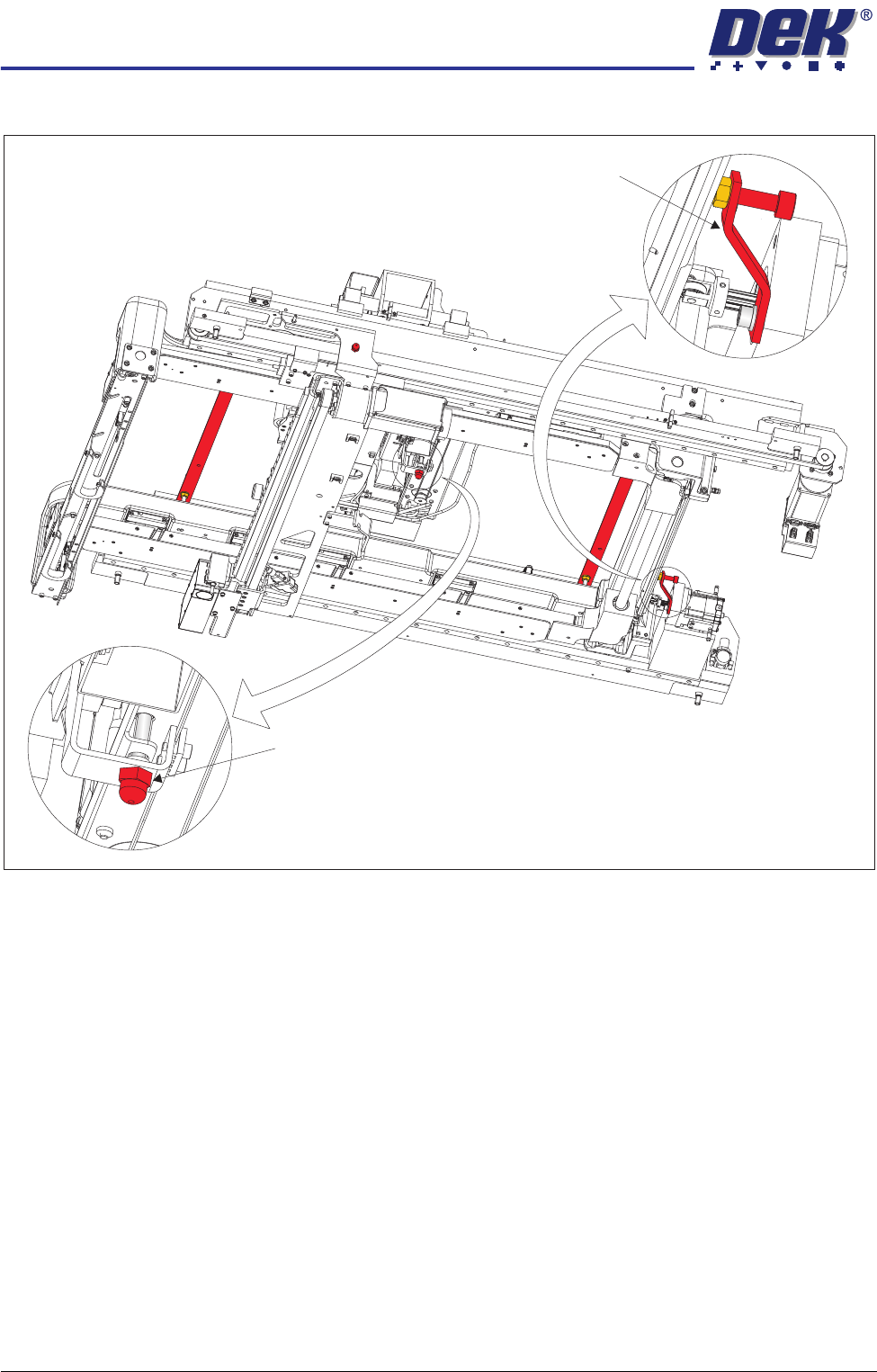

Figure 34-21 Transit Bracket and Screw Location
Rear Chase Transit Bracket
Paste Dispenser Transit Screw
View on Right Hand Underside
