SIPLACE 80S-20/F4/F5 User M anual 2 Introduction and Basic Concepts 05/99 Issue from Software Version SR.405.xx 2.4 Brief Description and Principles of the User Interface 2 - 45 2.4.4. 5 Softwa re (Serv ice T echnicians …
2 Introduction and Basic Concepts SIPLACE 80S-20/F4/F5 User Manual
2.4 Brief Description and Principles of the User Interface 05/99 Issue from Software Version SR.405.xx
2 - 44
2.4.4.4 New Cluster (Line Engineer)
From the Options menu, a cluster can be loaded from the hard disk of the station computer for testing without
the line computer.
PLEASE NOTE
Stand-alone
must have been set as the control mode.
Select the New cluster" submenu from the Options menu on the menu bar.
Fig. 2.4.8 Enter cluster
Enter the cluster that you wish to load in the input box and click on OK. The set-up and cluster name will be
displayed in the main view.
PLEASE NOTE
The set-up and cluster must be present on the hard disk together with the associate package form and fidu-
ciary marking data. The last placement program successfully set by the line computer is stored on the hard
disk as the CURRENT cluster (including the fiduciary marking and package form data).
SIPLACE 80S-20/F4/F5 User Manual 2 Introduction and Basic Concepts
05/99 Issue from Software Version SR.405.xx 2.4 Brief Description and Principles of the User Interface
2 - 45
2.4.4.5 Software (Service Technicians Only)
DANGER
This option must only be used by service technicians.

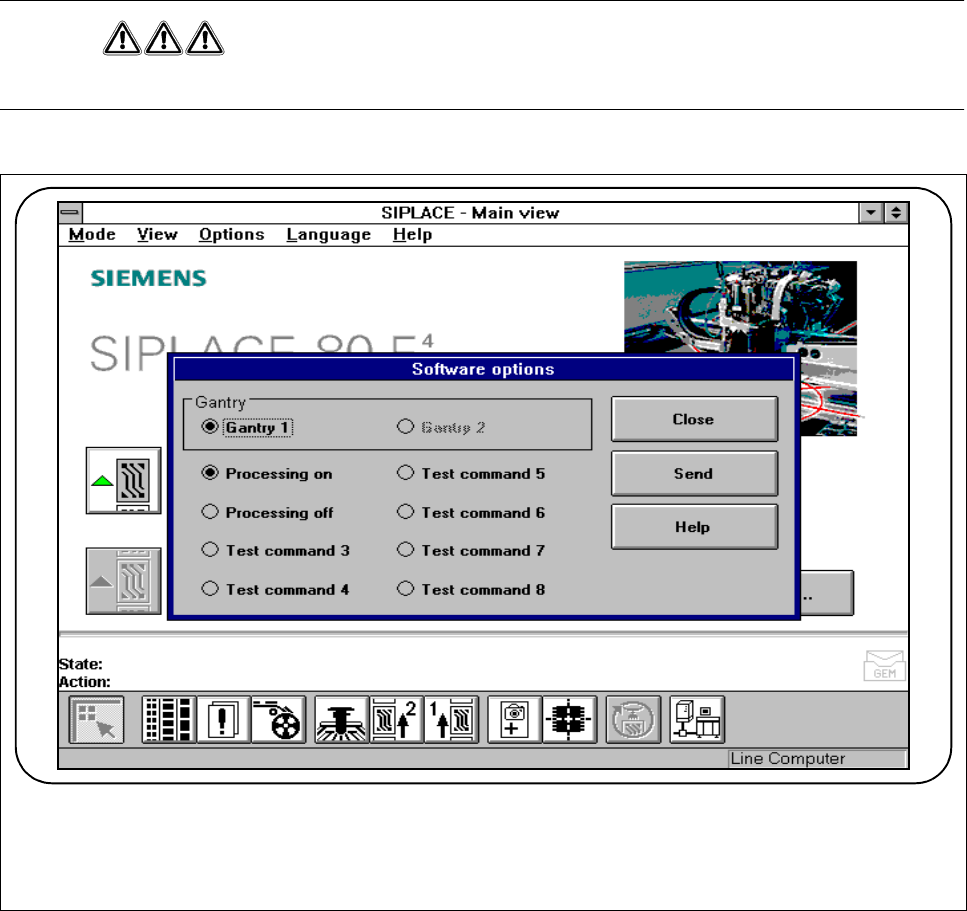

Fig. 2.4.9 Software
2 Introduction and Basic Concepts SIPLACE 80S-20/F4/F5 User Manual
2.4 Brief Description and Principles of the User Interface 05/99 Issue from Software Version SR.405.xx
2 - 46
2.4.4.6 Cycle mode
If you wish to operate the station in cycle mode in order to minimize errors, select the "Cycle mode“ function
from the "Options“ menu. You will then have to press the start button on the automatic placement machine for
every step of the placement sequence.
Click on the
Cycle mode
option in the
Options
menu to open the Cycle mode menu on the station com-
puter.
Fig. 2.4.10 Cycle mode
Click on "On“ to switch to cycle mode.
2.4.4.7 Load Table Program (Line Engineer)
You can use the "Load table program“ function from the "Options" menu if a machine error is caused by loss of
the program at the component table. This will load the table program into the memory of the table program
control.
Click on the Load table program option in the Options menu to open the Load table program function on
the station computer.
