1 Operational Safety SIPLACE 80S-20/F4/F5 User Manual 1.1 Information on safety 05/99 Issue from Softwar e Version SR.405.xx 1 - 12 1.1.6 Additional warning signs for the NAFT A region Fig. 1.1.4 Warning signs on the bas…
SIPLACE 80S-20/F4/F5 User Manual 1 Operational Safety
05/99 Issue from Software Version SR.405.xx 1.1 Information on safety
1 - 11
Fig. 1.1.3 Warning signs on the basic machine - part 3
Key to Fig. 1.1.3
T PCB transport direction
Item 1 in Fig. 1.1.3 showing the warning signs on the control unit of the basic machine
Item 2 in Fig. 1.1.3 showing the warning signs on the servo unit of the basic machine
ACHTUNG
Handhabungsvorschriften
beachten
Elektrostatisch gefährdete
Bauelemente
ATTENTION
Electrostatic sensitive devices
Observe precautions for
handling
1 Operational Safety SIPLACE 80S-20/F4/F5 User Manual
1.1 Information on safety 05/99 Issue from Software Version SR.405.xx
1 - 12
1.1.6 Additional warning signs for the NAFTA region

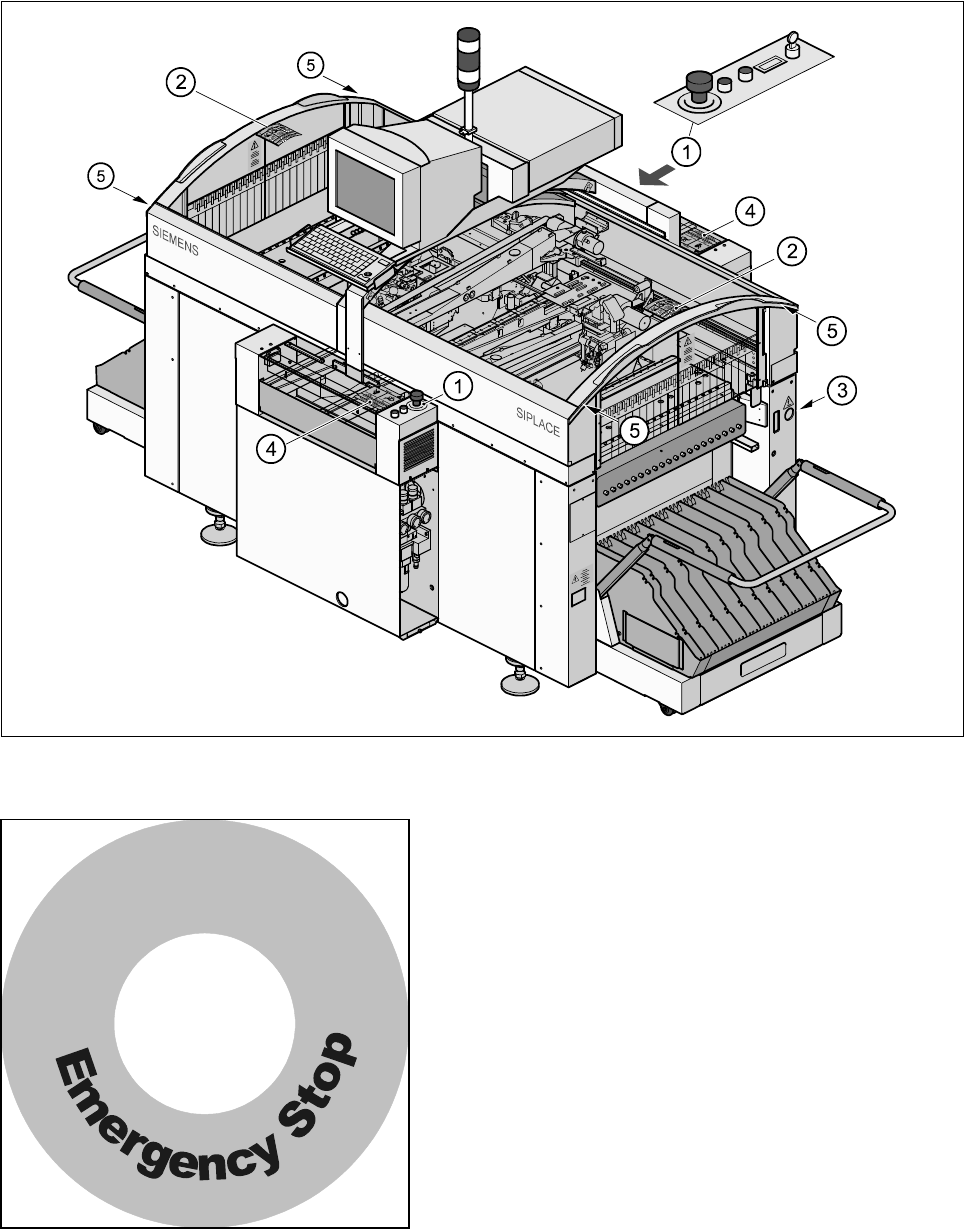

Fig. 1.1.4 Warning signs on the basic machine - NAFTA region
Item 1 in Fig. 1.1.4 showing the warning signs on the basic machine - NAFTA region
SIPLACE 80S-20/F4/F5 User Manual 1 Operational Safety
05/99 Issue from Software Version SR.405.xx 1.1 Information on safety
1 - 13
Item 2 in Fig. 1.1.4 showing the warning signs on the basic machine - NAFTA region
Item 3 in Fig. 1.1.4 showing the warning signs on the basic machine - NAFTA region (on the cover over the
terminal panels)
Item 4 in Fig. 1.1.4 showing the warning signs on the basic
machine - NAFTA region
