SIPLACE 80S-20/F4/F5 User M anual 9 Maintenance 05/99 Issue from Software Vers ion SR.405.xx 9.1 Overview 9 - 3 9.1 Ove rview 9.1.1 SIPLACE 80S-2 0 Placement Machine Fig. 9.1.1 SIPLACE 80S-20: modules requiring maintenan…
9 Maintenance SIPLACE 80S-20/F4/F5 User Manual
05/99 Issue from Software Version SR.405.xx
9 - 2
SIPLACE 80S-20/F4/F5 User Manual 9 Maintenance
05/99 Issue from Software Version SR.405.xx 9.1 Overview
9 - 3
9.1 Overview
9.1.1 SIPLACE 80S-20 Placement Machine
Fig. 9.1.1 SIPLACE 80S-20: modules requiring maintenance
- Key to Fig. 9.1.1
1 12 x revolver head, gantry 1 8 Control unit, filter mat
2 12 x revolver head, gantry 2 9 Changeable components tables
3 X axes, gantries 1 and 2 10 Empty tape cutters
4 Y axes, gantries 1 and 2 11 PCB transport
5 Safety hoods with guide rails 12 Rejects container
6 Compressed air unit 13 Bar code strips
7 Servo unit, filter mat 14 Control unit of PCB Handling
9 Maintenance SIPLACE 80S-20/F4/F5 User Manual
9.1 Overview 05/99 Issue from Software Version SR.405.xx
9 - 4
9.1.2 SIPLACE 80F
4
Placement Machine

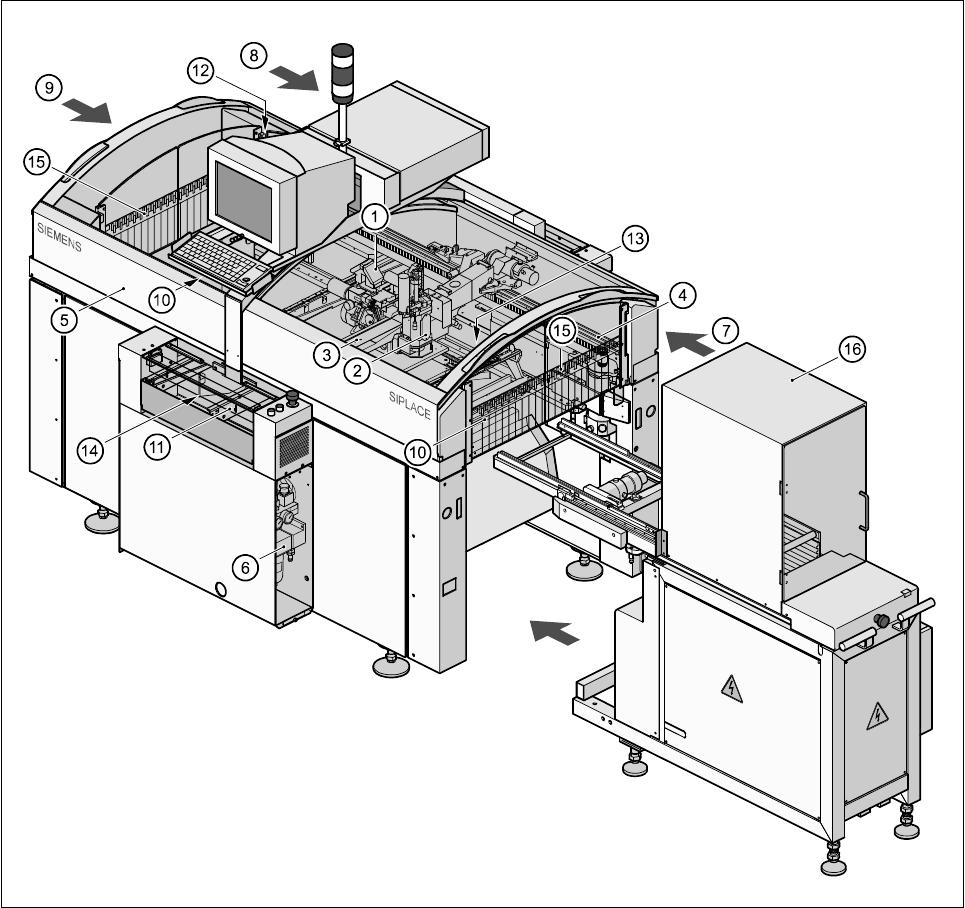

Fig. 9.1.2 SIPLACE 80F
4
: Modules requiring maintenance
- Key to Fig. 9.1.2
1 12 x revolver head, gantry 1 10 Empty tape cutters
2 IC head 11 PCB transport
3 X axis, gantry 1 12 Rejects container for the revolver head
4 Y axis, gantry 1 13 Rejects container for IC head, component
5 Safety hoods with guide rails vision camera, coplanarity laser module
6 Compressed air unit and nozzle changer
7 Servo unit, filter mat 14 Control unit of PCB Handling
8 Control unit, filter mat 15 Bar code strips
9 Changeable components tables 16 Wafflepack changer
