SIPLACE 80S-20/F4/F5 User M anual 1 Operational Safety 05/99 Issue from Software Version SR.405.xx 1.2 Safety equipment 1 - 23 1.2 Safety equipment 1.2.1 Protective covers Fig. 1.2.1 SIPLACE 80S20/F 4 /F 5 safety equipme…
1 Operational Safety SIPLACE 80S-20/F4/F5 User Manual
1.1 Information on safety 05/99 Issue from Software Version SR.405.xx
1 - 22
SIPLACE 80S-20/F4/F5 User Manual 1 Operational Safety
05/99 Issue from Software Version SR.405.xx 1.2 Safety equipment
1 - 23
1.2 Safety equipment
1.2.1 Protective covers

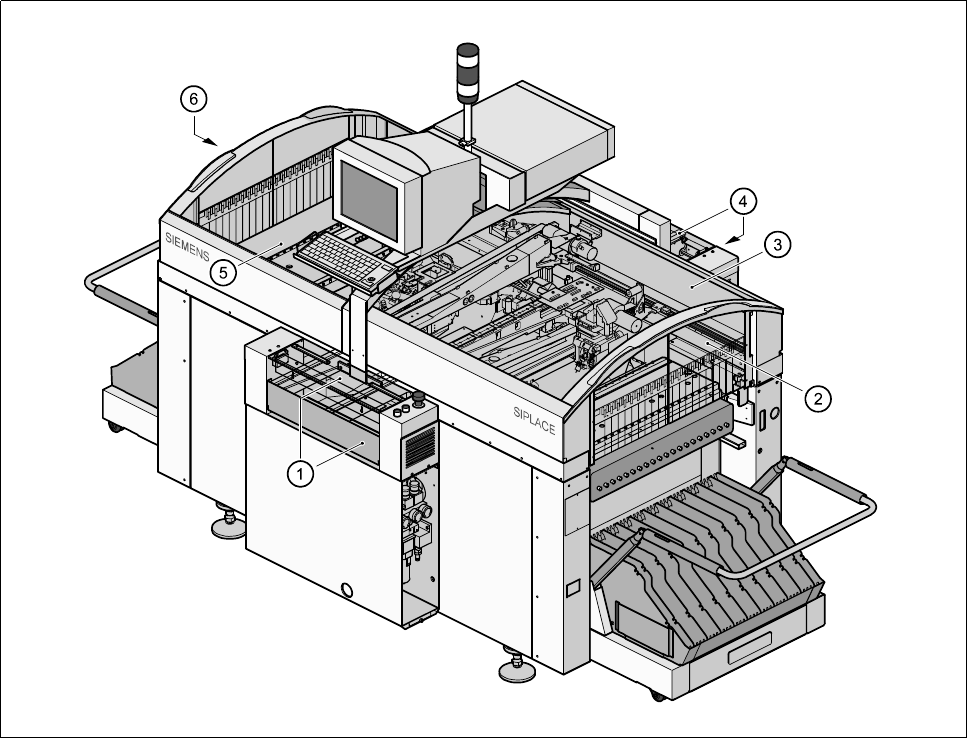

Fig. 1.2.1 SIPLACE 80S20/F
4
/F
5
safety equipment
- Key to Fig. 1.2.1
1 Cover and guard on the input belt 2 Safety discs, righthand side
3 Protective cover 4 Cover and guard on the output belt
5 Protective cover 6 Safety discs, lefthand side
1 Operational Safety SIPLACE 80S-20/F4/F5 User Manual
1.2 Safety equipment 05/99 Issue from Software Version SR.405.xx
1 - 24
1.2.1.1 General
The gantry positioning range is covered by two protective covers. If you want to open the protective covers,
first press the Stop button (item 1 in Fig. 1.2.2) or the emergency stop mushroom-head push-button (item 2 in
Fig. 1.2.2). The power to the gantry axes will be switched off and the gantries will stop immediately.
If you open one of the protective covers or a guard on the incoming or outgoing conveyor, the power to the
gantry axes will be switched off and they will stop immediately.
If the key switch is closed (position
I
), you can continue to pace the star at reduced speed while the protective
covers are open.
Placement will stop if you press the emergency stop mushroom-head push-button. You can then either cancel
or continue placement of the PCB. The protective covers at the sides can be opened in order to refill with
components when the machine has stopped.
WARNING
The protective covers must only be opened, with the key switch closed (position
I
), by appropriately qualified
and trained personnel.

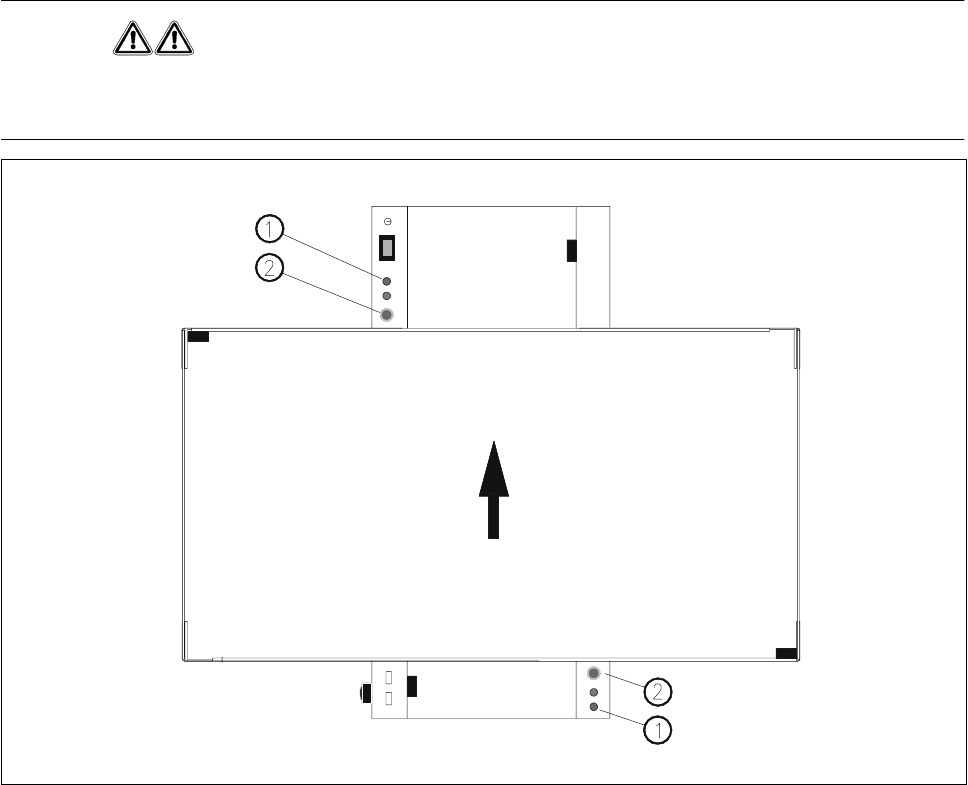

Fig. 1.2.2 Stop and emergency stop mushroom-head push-button
- Key to Fig. 1.2.2
1 Stop button 2 Emergency stop mushroom-head push-button
