SIPLACE 80S-20/F4/F5 User M anual 17 Nozzle Overview 05/99 Issue from Software Version SR.405.xx 17.2 Overview of nozzles 17 - 25 17.2.3.1 Special ty pe 412 nozzle for flip-chip pla cement r Nozzle type 412 Outside diam …
17 Nozzle Overview SIPLACE 80S-20/F4/F5 User Manual
17.2 Overview of nozzles 05/99 Issue from Software Version SR.405.xx
17 - 24
17.2.3 Nozzle types for the IC placement head

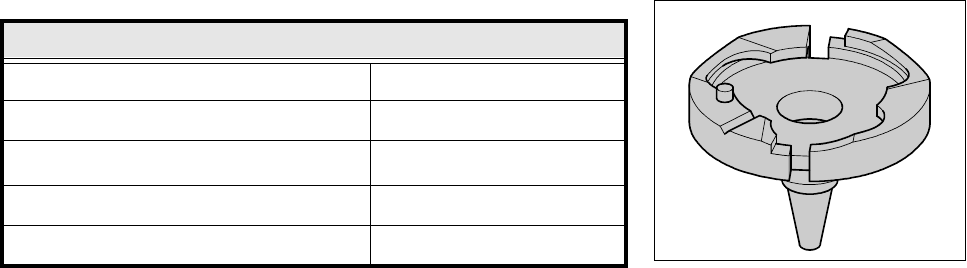

Nozzle type 416
Outside contour [mm] 3 x 6
Material Vectra A 700
Effective suction area [mm²] 9.1
From item number 00322545-01
Nozzle type 417
Outside diameter [mm] 8
Material Vectra A 700
Effective suction area [mm²] 28.3
Effective suction diameter [mm] 6
From item number 00322543-01
Nozzle type 418
Outside diameter [mm] 12.5
Material Vectra A 700
Effective suction area mm
2
78.5
Effective suction diameter [mm] 10
From item number 00322544-01
Membrane for nozzle 00307052-03
Nozzle type 419
Outside diameter [mm] 24
Material Vectra A 700
Effective suction area mm
2
363
Effective suction diameter [mm] 21.5
From item number 00322546-01
Membrane for nozzle 00310569-03
SIPLACE 80S-20/F4/F5 User Manual 17 Nozzle Overview
05/99 Issue from Software Version SR.405.xx 17.2 Overview of nozzles
17 - 25
17.2.3.1 Special type 412 nozzle for flip-chip placement
r
Nozzle type 412
Outside diameter [mm] 1.8
Material PEPT Ertalyte BLACK
Effective suction area mm
2
0.8
Effective suction diameter [mm] 1.0
From item number 00319910-01
17 Nozzle Overview SIPLACE 80S-20/F4/F5 User Manual
17.2 Overview of nozzles 05/99 Issue from Software Version SR.405.xx
17 - 26
