17 Nozzle Overview SIPLACE 80 S-20/F4/F5 User Manual 17.2 Overview of nozzles 05/99 Issue from Software Version SR.405.xx 17 - 20 Nozzle type 720 Sucti on cros s-secti on [mm² ] 23 .75 Heig ht [m m] 12. 5 Material Evopre…
SIPLACE 80S-20/F4/F5 User Manual 17 Nozzle Overview
05/99 Issue from Software Version SR.405.xx 17.2 Overview of nozzles
17 - 19
Nozzle type 715
Suction cross-section [mm²] 2.88
Height [mm] 14
Material Vectra C130
Insertable components Tantalum
Color coding BLACK/RED
From item number 00321862-04
Nozzle type 717
Suction cross-section [mm²] 11.07
Height [mm] 12
Material Vectra C130
Insertable components SO >3 x 7
Color coding BLACK/PINK
From item number 00321863-04
Nozzle type 718
Suction cross-section [mm²] 1.7
Height [mm] 11
Material Vectra C130
Insertable components Alum. cap. < ∅ 3x2
Color coding BLACK/GREEN
From item number 00321864-04
Nozzle type 719
Suction cross-section [mm²] 9.6
Height [mm] 11
Material Vectra C130
Insertable components Alum. cap. < ∅5x2
Color coding BLACK/BLUE
From item number 00321867-04
17 Nozzle Overview SIPLACE 80S-20/F4/F5 User Manual
17.2 Overview of nozzles 05/99 Issue from Software Version SR.405.xx
17 - 20
Nozzle type 720
Suction cross-section [mm²] 23.75
Height [mm] 12.5
Material Evoprene/Vectra C130
Insertable components PLCC 0.75 < H < 4.75
Color coding BLACK/WHITE
From item number 00325972-0§
Nozzle type 721
Suction cross-section [mm²] 23.75
Height [mm] 8.75
Material Evoprene/Vectra C130
Insertable components PLCC 4.25 < H < 8.25
Color coding BLACK/LIGHT GREEN
From item number 00325970-03
Nozzle type 723
Suction cross-section [mm²] 0.58
Height [mm] 15.2
Material Vectra C130
Insertable components Mini-/Micro Melf
R = 0.7 (+ 0.1 / - 0.2)
Color coding BLACK/GREY
From item number 00324996-04
Nozzle type 724
Suction cross-section [mm²] 2.73
Height [mm] 14.5
Material Vectra C130
Insertable components Melf R = 1.2 (± 0.2)
Color coding BLACK/LIGHT BLUE
From item number 00321866-04
SIPLACE 80S-20/F4/F5 User Manual 17 Nozzle Overview
05/99 Issue from Software Version SR.405.xx 17.2 Overview of nozzles
17 - 21

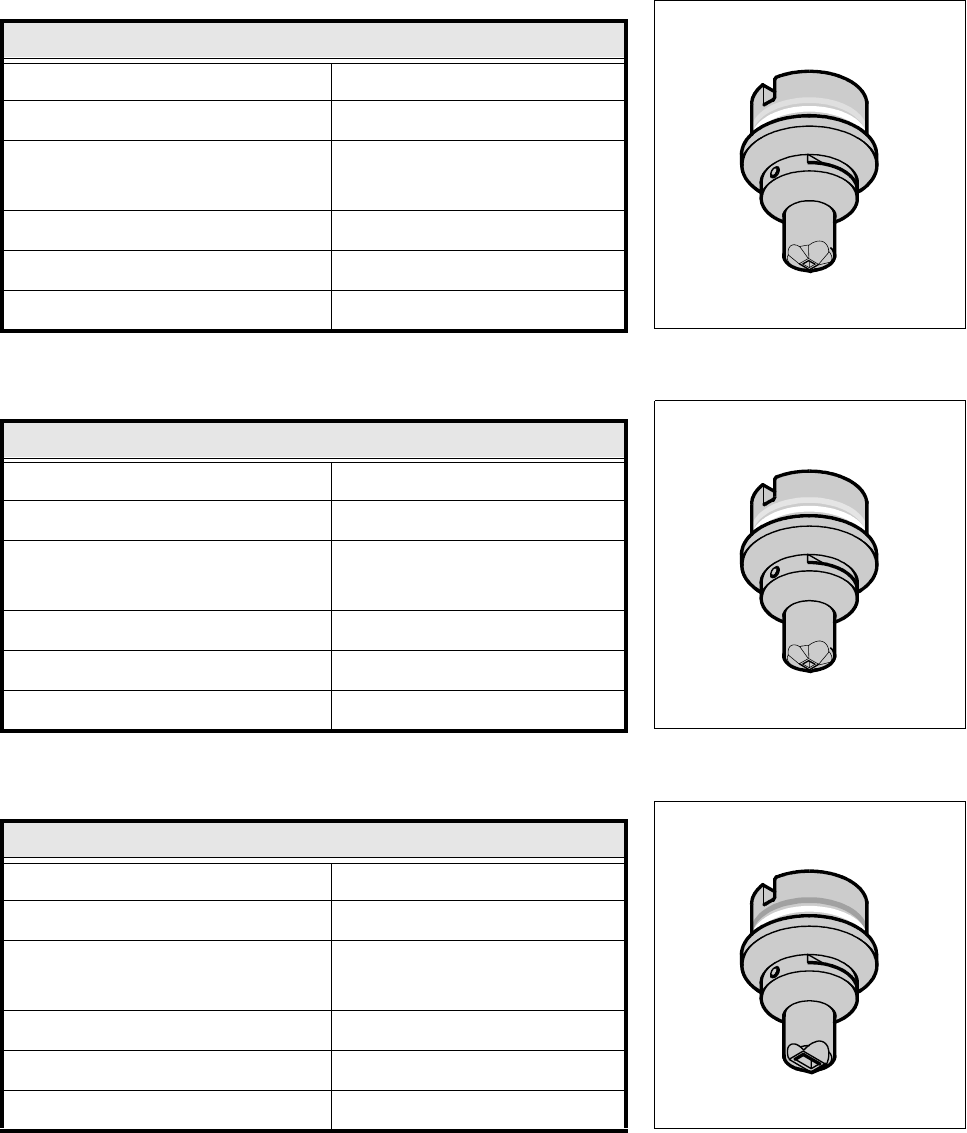

17.2.1.3 Nozzles made from polyurethane/Vectra A700, ESD-conductive
Nozzle type 751
Suction cross-section [mm²] 0.25
Height [mm] 14.5
Material Polyurethane/Vectra A700,
ESD-conductive
Insertable components [mm] 1.0 x1.0 -2.5x2.5
Color coding WHITE/YELLOW
From item number 00330533-02
Nozzle type 752
Suction cross-section [mm²] 0.48
Height [mm] 14.5
Material Polyurethane/Vectra A700,
ESD-conductive
Insertable components [mm] 1.5 x 1.3 - 3.0x 2.5
Color coding WHITE/GREY
From item number 00330534-02
Nozzle type 753
Suction cross-section [mm²] 1.26
Height [mm] 14.5
Material Polyurethane/Vectra A700,
ESD-conductive
Insertable components [mm] 3.0 x 2.5 - 5.5 x 5.0
Color coding WHITE/ORANGE
From item number 00330535-02
