SIPLACE 80 S20/F4/F5 User Manual 10 Component Handling 05/99 Issue from Software Vers ion SR.405.xx 10.4 Empty Tape Cutter on SIPLACE 80 S-20/F4 Automatic Placem ent Machines 10 - 15 10.4 Empty T ape Cutter on SIPLACE 80…
10 Component Handling SIPLACE 80 S20/F4/F5 User Manual
10.3 Component table, mobile 05/99 Issue from Software Version SR.405.xx
10 - 14
10.3.3 Docking the component table
WARNING
Check that the placement head is outside the range of the component table.
CAUTION
When docking the component table, ensure that the table bed is in its top end position and the bracket (item 7)
is folded up.
Cut off the empty tapes for the feeder modules.
Make sure that the contact surface (item 10) for the component table bed is clean.
CAREFULLY push the component table into the placement system.
Connect the compressed air supply (item 3).
Plug in the control cable (item 1).
Plug in the power cable (item 2) for the component table.
Pull the two actuating tubes (item 6) towards you at the same time and then lower the bracket (item 7) in
order to be able to lower the component table bed.
Check that the centring holes in the component table bed lie precisely over the centering pins of the place-
ment system.
Hold down the button (item 5) until the component table bed reaches its top end position.
Release the button and the component table bed will descend.
Ensure that the centring pins engage in the centring holes in the component table bed and that the compo-
nent table bed is fully lowered.
Fold up the bracket (item 7) of the component table.
Lock the two horizontal tensioners (item 11).
Close the side screens and protective cover.
Press the Start button to start the placement system.
SIPLACE 80 S20/F4/F5 User Manual 10 Component Handling
05/99 Issue from Software Version SR.405.xx 10.4 Empty Tape Cutter on SIPLACE 80S-20/F4 Automatic Placement Machines
10 - 15
10.4 Empty Tape Cutter on SIPLACE 80S-20/F
4
Auto-
matic Placement Machines
10.4.1 General
The SIPLACE 80S-20/F
4
automatic placement system is equipped with an empty tape cutter at the installation
locations for the two component tables. The empty tape cutter cuts up the waste tape.
The cut pieces of tape drop into the tape container beneath the component table.
Empty the tape container on a daily basis.

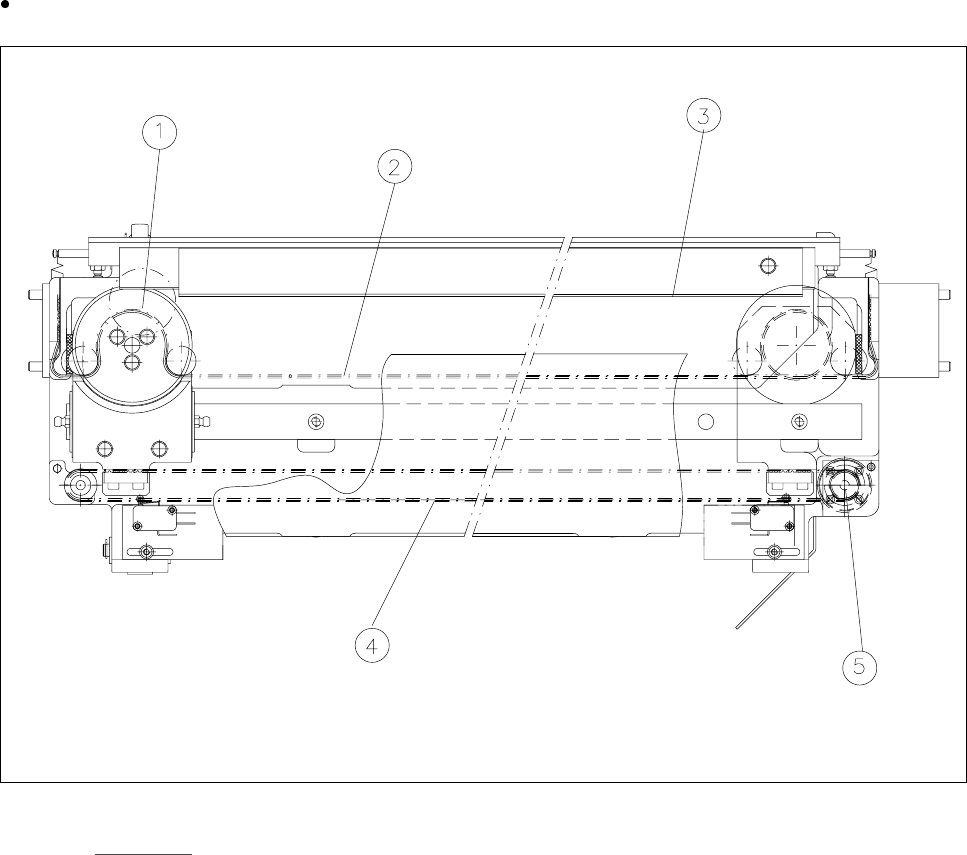

Fig. 10.4.1 Tape cutter
- Key to Fig. 10.4.1
1 Cutter wheel 2 Toothed belt for cutter wheel
3 Cutting edge 4 Drive belt
5 Drive motor
10 Component Handling SIPLACE 80 S20/F4/F5 User Manual
10.4 Empty Tape Cutter on SIPLACE 80S-20/F4 Automatic Placement Machines 05/99 Issue from Software Version SR.405.xx
10 - 16
10.4.2 Inserting the Tape into the Tape Cutter
PLEASE NOTE
On SIPLACE 80S-20/F
4
automatic placement systems, only use the tape feeder modules specified for these
machines. The used tape channel which removes the used tape is located upstream of the feeder modules.
Insert the tape into the feeder as described in the corresponding section.
Guide the used tape into the used tape channel of the cutter as described in Fig. 10.4.2

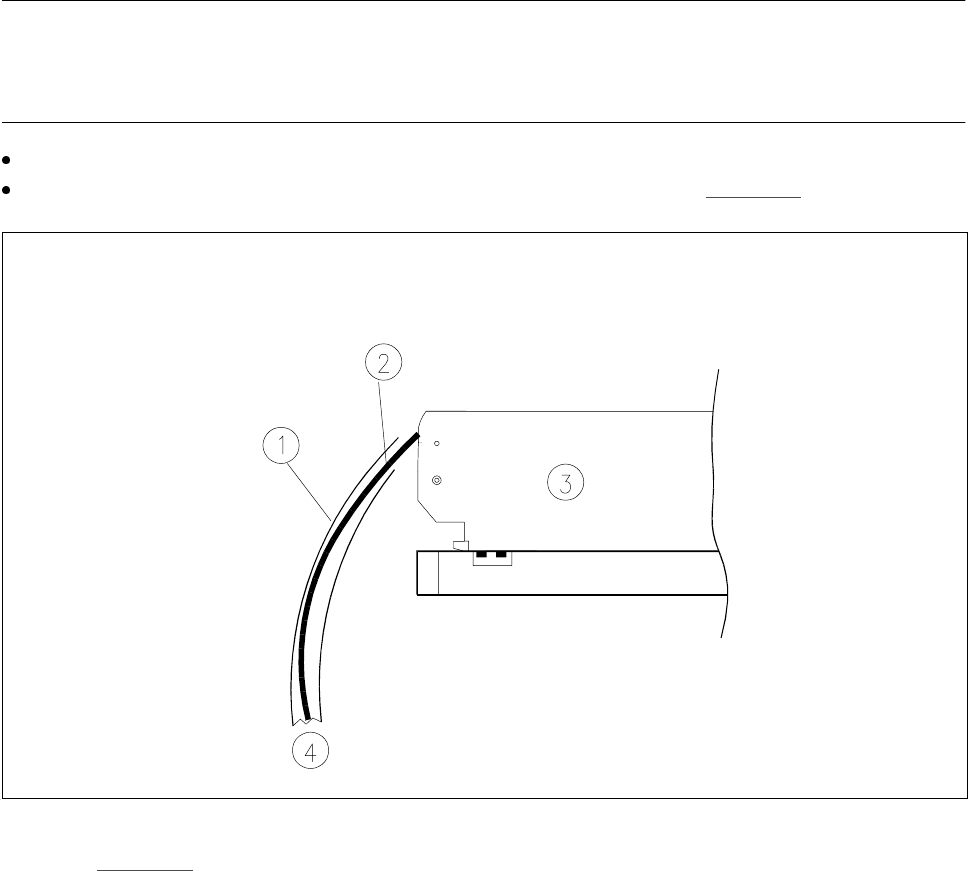

Fig. 10.4.2 Inserting the tape into the tape cutter
-Key to Fig. 10.4.2
1 Used tape channel 2 Used tape
3 Tape feeder module 4 To tape cutter
