SIPLACE 80S-20/F4/F5 User M anual 3 Placement Functions 05/99 Issue from Software Version SR.405.xx 3.3 Error 3 - 17 3.3.2.1 Error Information Mark a single li ne (high lighted a gainst a b lue bar) a nd clic k on the Er…
3 Placement Functions SIPLACE 80S-20/F4/F5 User Manual
3.3 Error 05/99 Issue from Software Version SR.405.xx
3 - 16
3.3.2 Machine Errors
Click on the symbol button for
Errors
in the
Display all machine errors
menu
.

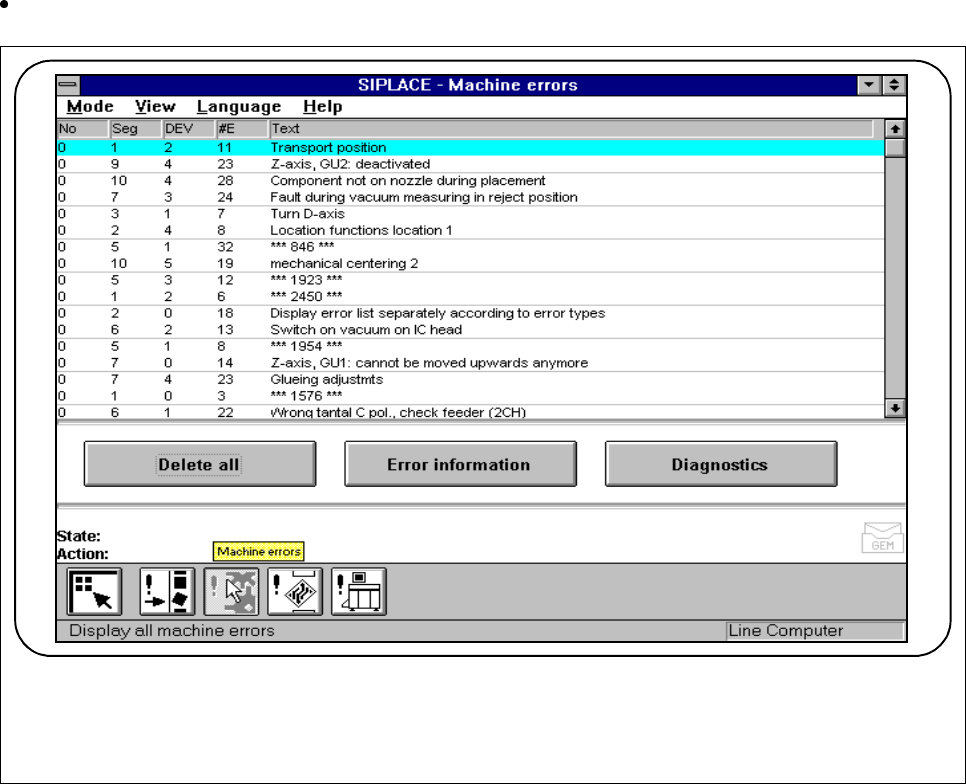

Fig. 3.3.3 Machine errors
l No.
The error numbers of the errors in question are displayed in this column.
l Seg.
In this column the segment which was used to insert the component and where the fault occurred is dis-
played.
l DEV
In this column the pick-up side, i.e. the gantry where the fault occurred, is displayed.
l #E
This column indicates how often (cumulative) this error has already occurred.
l Text
In this column a description is given of the fault which occurred.
F
SIPLACE 80S-20/F4/F5 User Manual 3 Placement Functions
05/99 Issue from Software Version SR.405.xx 3.3 Error
3 - 17
3.3.2.1 Error Information
Mark a single line (highlighted against a blue bar) and click on the
Error information
button. Call up the
on-line help for information on the selected error.
3.3.2.2 Diagnostics
Select a single line (highlighted against a light blue bar) and click on the
Diagnostics
button. The diagnos-
tics procedure for the error selected is started.
3 Placement Functions SIPLACE 80S-20/F4/F5 User Manual
3.3 Error 05/99 Issue from Software Version SR.405.xx
3 - 18
3.3.3 Transport Errors
Click on the symbol button for
Errors
in the
Display all transport errors
menu
.
Fig. 3.3.4 Transport errors
l No.
The error numbers of the errors in question are displayed in this column.
l Transp.
In this column the conveyor belt is identified where the error occurred.
Conveyor 1 = standard conveyor belt
Conveyor 2 = only with twin conveyor (option)
l DEV
In this column the pick-up side, i.e. the gantry where the fault occurred, is displayed.
l #E
This column indicates how often (cumulative) this error has already occurred.
l Text
In this column a description is given of the fault which occurred.
F
