7.2 Diagnostics

7.2.1 General Comments

If errors occur while the board is being processed, a diagnostics program can be started for this error. You can

start this diagnostics facility either from the main view or from

Display error

This diagnostics facility will guide you as far as identifying a possible cause for the error and suggesting a

remedy. This is done by means of a series of questions. Information on the questions asked can be accessed

by pressing an information button.

7 Error Information & Diagnostics SIPLACE 80S-20/F4/F5 User Manual

7.2 Diagnostics 05/99 Issue from Software Version SR.405.xx

7 - 10

7.2.2 Basic Operation

If an error should occur during processing of the board, this error will be displayed in the status window.

● Click on the

Diagnostics

button.

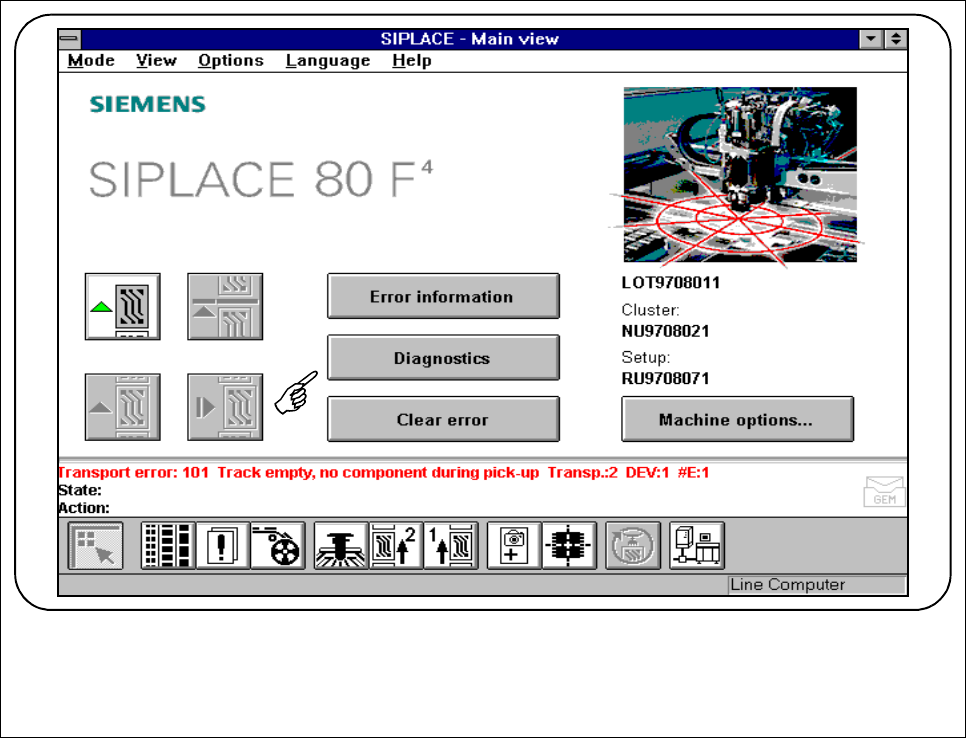

Fig. 7.2.1 Diagnostics for error message no. 101

● The diagnostics main screen is displayed on the station software screen.
