SIPLACE 80S-20/F4/F5 User Manual 5 Vision Functions

05/99 Issue from Software Version SR.405.xx 5.6 Test Component

Line engineer 5 - 113

Setting the contrast sensitivity to suppress defective structures and intensify the contrast at

the same time

Select the following settings to suppress defective structures and at the same time to intensify the contrast

for low-contrast fiducials:

Fig. 5.6.33 Setting the contrast sensitivity to suppress defective structures and

to intensify the contrast at the same time

5 Vision Functions SIPLACE 80S-20/F4/F5 User Manual

5.6 Test Component 05/99 Issue from Software Version SR.405.xx

5 - 114 Line engineer

5.6.4.13

Measure Mode

Option

NOTE

This option can only be activated when a GF number has been loaded.

In this menu you can manipulate these measurement conditions. The menu options are primarily intended for

the description of non-standard components.

This option allows you to

– select and activate a particular measurement method or combination of several measurement methods

– deactivate individual measurement methods, and

– change the parameters belonging to each measurement method.

The hex parameters for the individual measuring methods can be modified in two ways:

– either indirectly, i.e. menu-driven

You will be guided by the package form manipulator by means of setting menus and explanatory text in

order to obtain the desired measuring results quickly and accurately.

– or directly, i.e. you enter the necessary hex parameters directly into the ’Measuring mode 2’ input box.

NOTE

Please note that entering the hex values directly requires considerable knowledge of the measuring

method sequence.

If you intend to enter or modify hex values directly, please contact Siemens Service first and do not enter

the bit-coded hex values until you have spoken to the Service Department.

We recommend that you generally use the menu-driven package form manipulator.

SIPLACE 80S-20/F4/F5 User Manual 5 Vision Functions

05/99 Issue from Software Version SR.405.xx 5.6 Test Component

Line engineer 5 - 115

Measuring mode

Click on the ’Measuring

mode’ field to call up the

Measuring mode

menu.

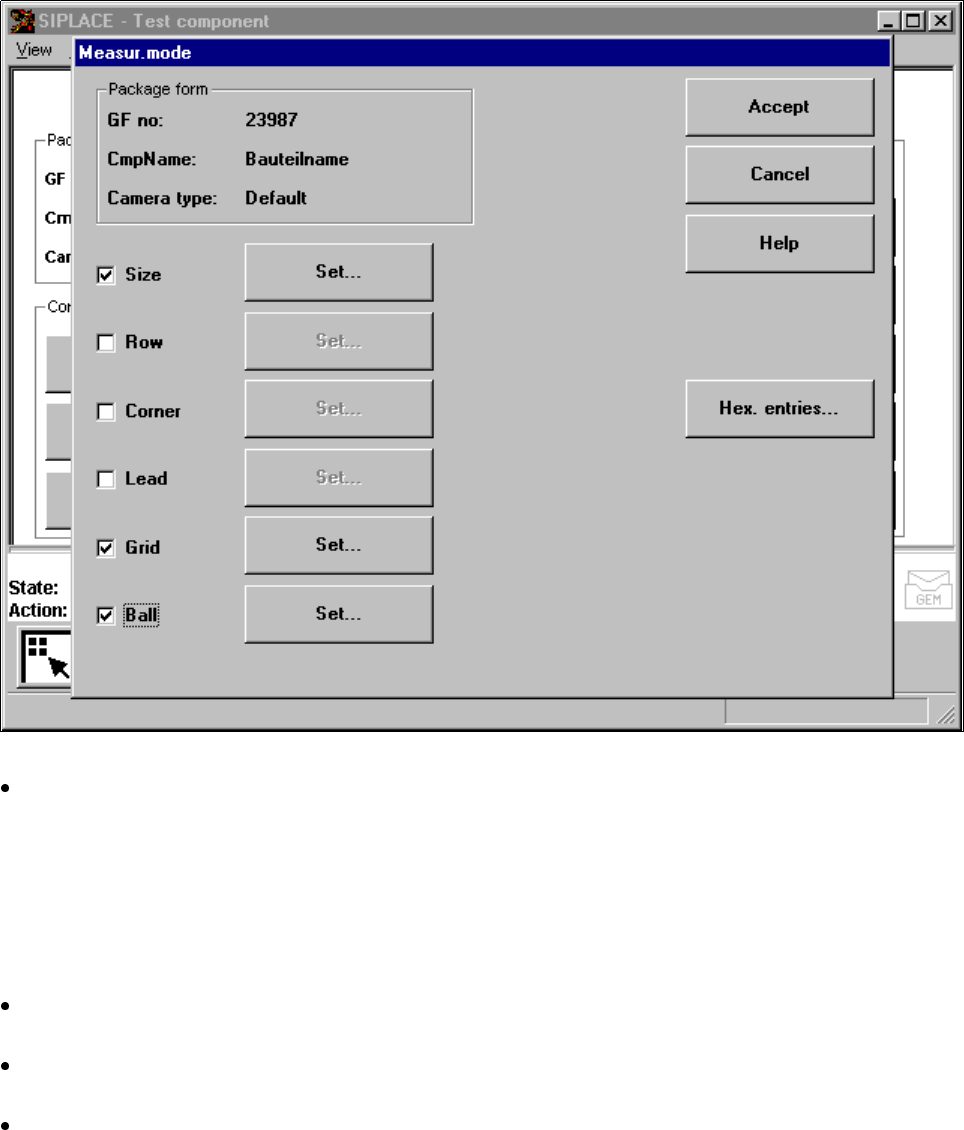

Fig. 5.6.34

Test component

menu,

Measur. mode

option

In the left column of the box, the desired measuring method can be activated or deactivated by clicking

with the mouse. A cross indicates that you have activated the measuring method. The ‘Setting' field for

calling up the sub-menu changes from grey to black.

Please note that

– there is currently no option for setting the ’Ball’ measuring mode.

– You can only use measuring modes that have been activated.

Use the ‘Hex input’ field to call up the ‘Measuring mode 2’ input menu for directly entering hex values.

Please follow the instructions on page 5 - 114.

Select ‘Accept’ to close the ‘Measuring mode’ menu. The modified measuring conditions will be entered

into the package form file on the station computer.

Select ‘Abort’ to interrupt the operation without transferring the data and to return to the ‘Test component’

menu.
