PVA Portal Manual
Revision I / January 2022
Page 13 of 106
System Overview
3.1 Software
The complete Portal software package has several components. Every operator must
understand what each piece of software is and its function before operating the workcell.
3.1.1 Portal
Portal is the main user interface that allows the user to interact with the workcell. It sets
the mode the workcell is operating in, allows the operator to monitor each system of the
workcell, allows the operator to select different PathMaster® routines, and conveys
system messages to the user.
3.1.2 PathMaster®
PathMaster® is PVA’s Windows®-based programming software. It is used to create,
maintain and download project files for the workcell. Refer to the PathMaster® manual for
more information.
3.2 Teach Pendant
PVA workcells come with a teach pendant. Each teach pendant has a Trackball, Teach
button, Purge button, Axis selection button, and LED indicators for the selected axes and
teach function.

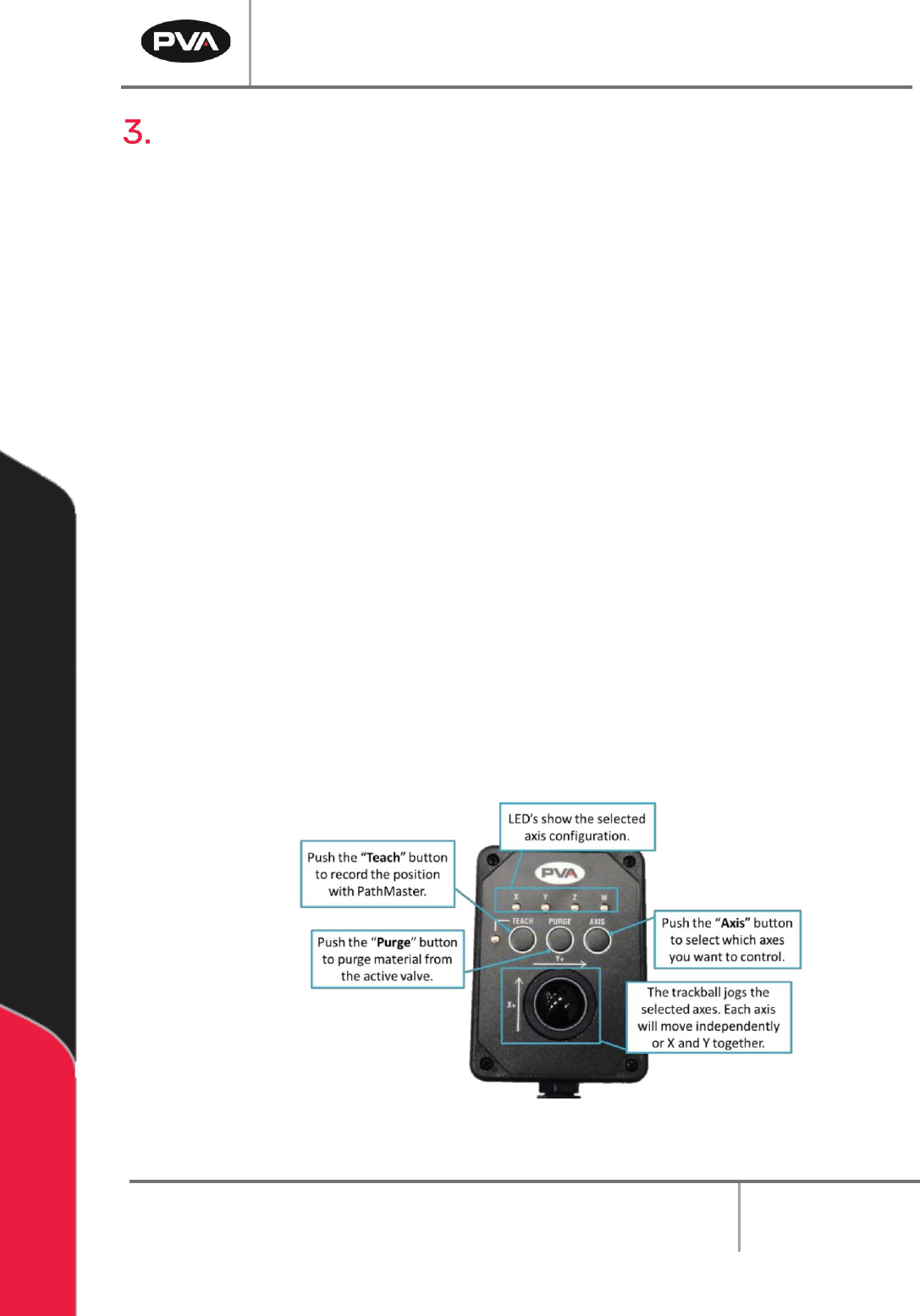

Figure 1: Teach Pendant
PVA Portal Manual
Revision I / January 2022
Page 14 of 106
The X, Y, Z, and W LEDs show the selected axis configuration. The Teach LED shows a
position was correctly recorded by PathMaster®. The light tower buzzer will “beep” when
the Teach LED illuminates.
Note: The W-axis trackball control is locked if the Teach Tool is enabled, unless the
PathMaster® Tool Offset window is open (Setup-> Machine Parameters-> “Tool
Offsets”). This ensures the operator does not accidentally teach a theta position
with the teach tool. This function can also be enabled or disabled in Setup mode (for
more information refer to Figure 48). When teaching with a device that is not the
camera, the theta position will be taught.
If a vision system is being used, the speed of the trackball can be changed by performing
the following steps.
1. Push and hold the “Axis” button for three seconds.
2. The red teach light will illuminate and the trackball function will move 10x slower.
3. Repeat these steps to change the speed back to normal.
PVA Portal Manual
Revision I / January 2022
Page 15 of 106
Portal Shell Overview
Portal Shell provides the operator with access to general setup of the workcell. It provides an
interface to launch any software needed to interact with the workcell.

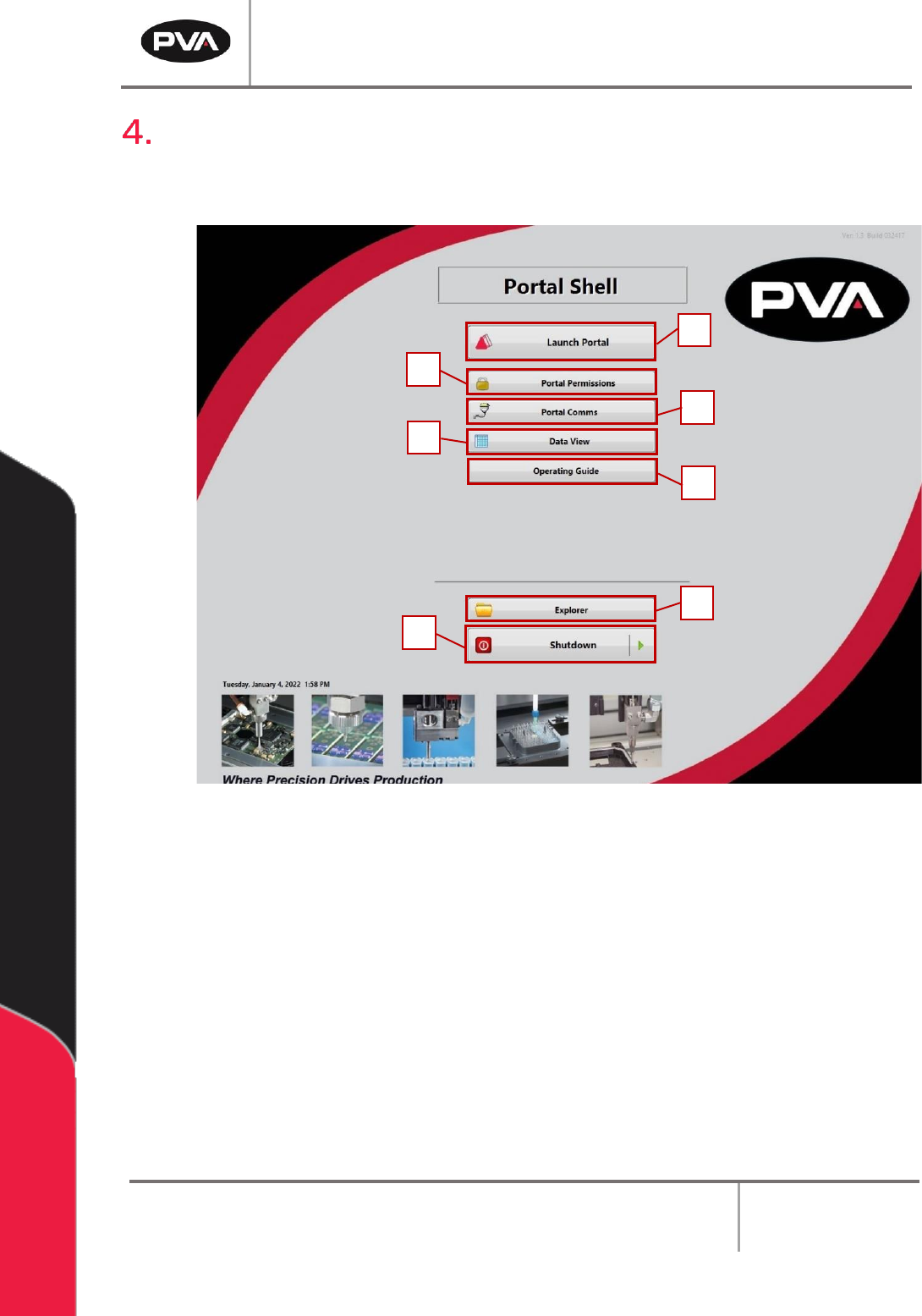

Figure 2: Portal Shell Overview
1. Select “Launch Portal” to start the Portal software and operate the workcell
through the Portal window. Refer to Section 5 for more information.
2. Select “Portal Permissions” to start the Portal Permissions software. This opens
the options to adjust user access. Refer to Section 11 for more information.
3. Select “Portal Comms” to open the Portal Comms software, allowing the operator
to adjust the Galil communication settings. Refer to Section 12 for more information.
4. Selecting “Data View” will allow the operator to view any logged data. Refer to
Section 13 for more information.
5. Select “Operating Guide” to view the PVA Portal User Manual.
