14.2 Recipe Manager
1. In Setup mode, select “Recipe Manager” to go to the Recipe Manager.
Figure 99: Recipe Manager Window
PVA Portal Manual
Revision I / January 2022
Page 84 of 106
2. Select the “New” button to create a new Dataset file.
3. Select the “Open” button to open an existing Dataset file.
4. Select the “Save As” button to save the current Dataset file as a new Dataset file.

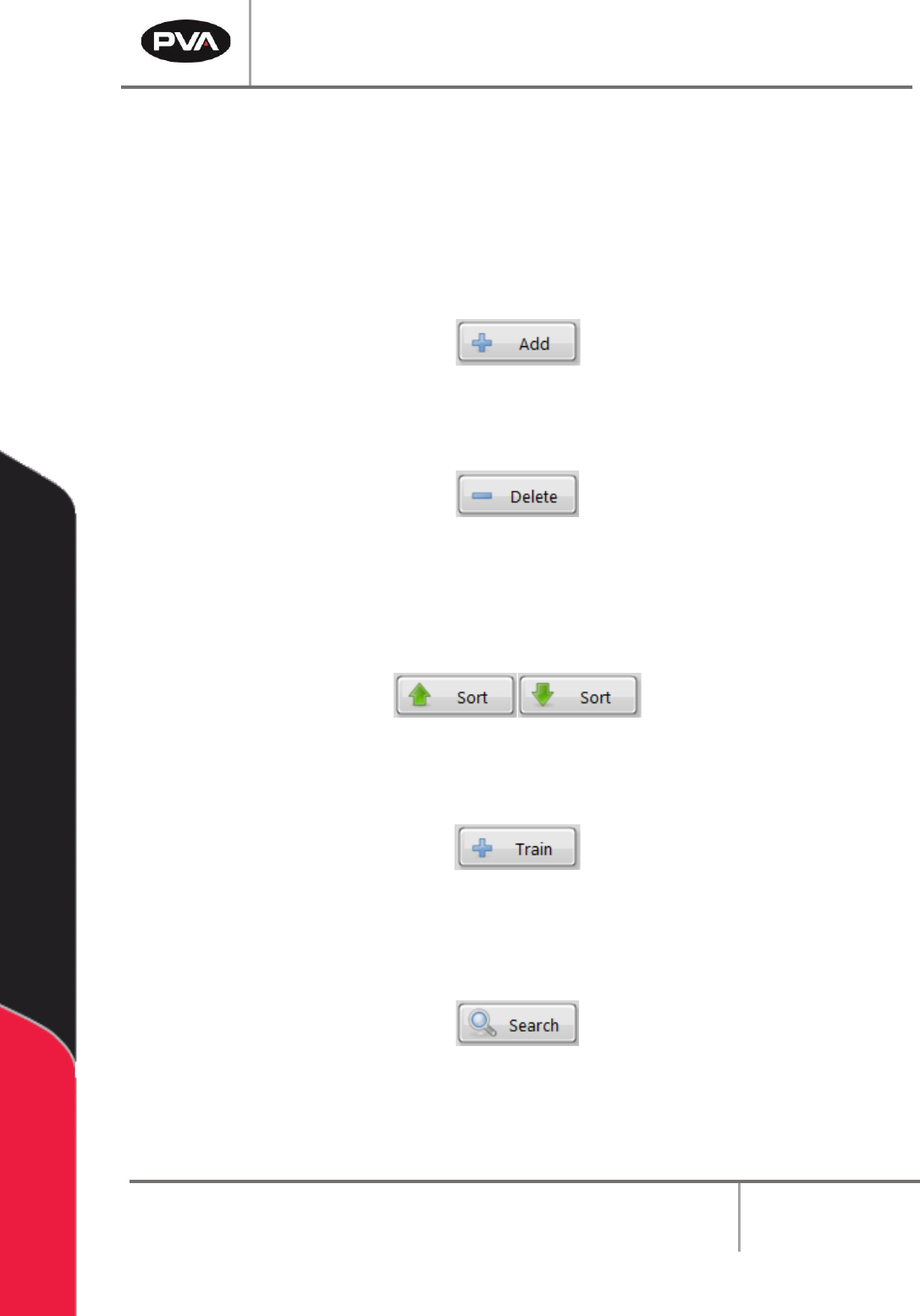

5. Select the “Add” button to add a new part to the current data set. Ensure the new
part name is unique.
Figure 100: Add Button
6. Select the “Delete” button to delete the selected part record.
Figure 101: Delete Button
7. The part record can be viewed in ascending or descending order. To view the part
record in ascending order, select the “Sort” button with the up arrow. To view the
part record in descending order, select the “Sort” button with the down arrow.
Figure 102: Sort Ascending or Descending Buttons
8. Select the “Train” button to add a new part record based on a trained part code.
Figure 103: Train Button
9. Select the “Search” button to search for a part by name in the current dataset. The
search is case sensitive.
Figure 104: Search Button
PVA Portal Manual
Revision I / January 2022
Page 85 of 106
14.2.1 To Edit Part Name or Part ID
To edit a Part Name or Part ID, hold the “CTRL” key down and double click the necessary
field. This action prevents accidental edits to these fields.
14.2.2 To Edit a Property Field
1. To edit a property field, click on the part name to expand the property list.
2. Double click on the property that is to be edited. The edit property window shown
will depend on the data type of the selected property.

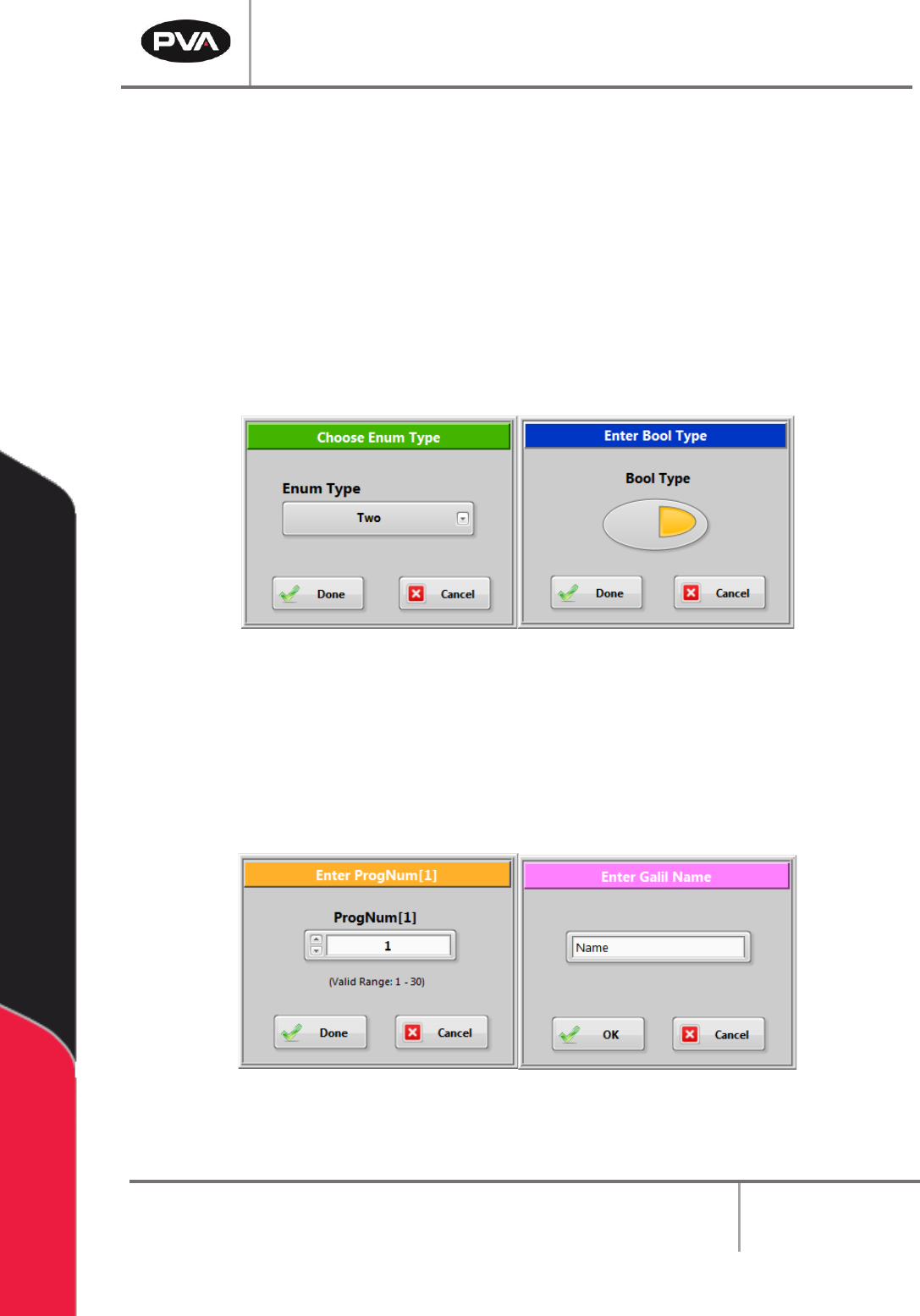

Figure 105: Choose Enum and Enter Bool Type Windows
3. The edit field may have limits on what can be entered. For example, a property of
type ‘String’ may be restricted to a length of 12 characters and some characters
may not be allowed. A property of type ‘Num’ may only allow numbers in the range
of 1 - 30 to be entered.
Figure 106: Enter ProgNum and Enter Galil Name Windows
