PVA Portal Manual
Revision I / January 2022
Page 44 of 106
8.4 SetupTree
The SetupTree contains a list of setup options. The tree is split into two main categories:
Global and Auto Cycle.
Figure 39: SetupTree Tab
8.4.1 Gantry Speed
The Gantry Speed can be setup to run at three different movement speeds:
• Slow — the standard gantry speed is reduced by a factor of 2.
• Standard — the default/normal operating gantry speed.
• Fast — the standard gantry speed is increased by a factor of 1.5.
Note: This setup does not adjust the PathMaster® programs.
PVA Portal Manual
Revision I / January 2022
Page 45 of 106

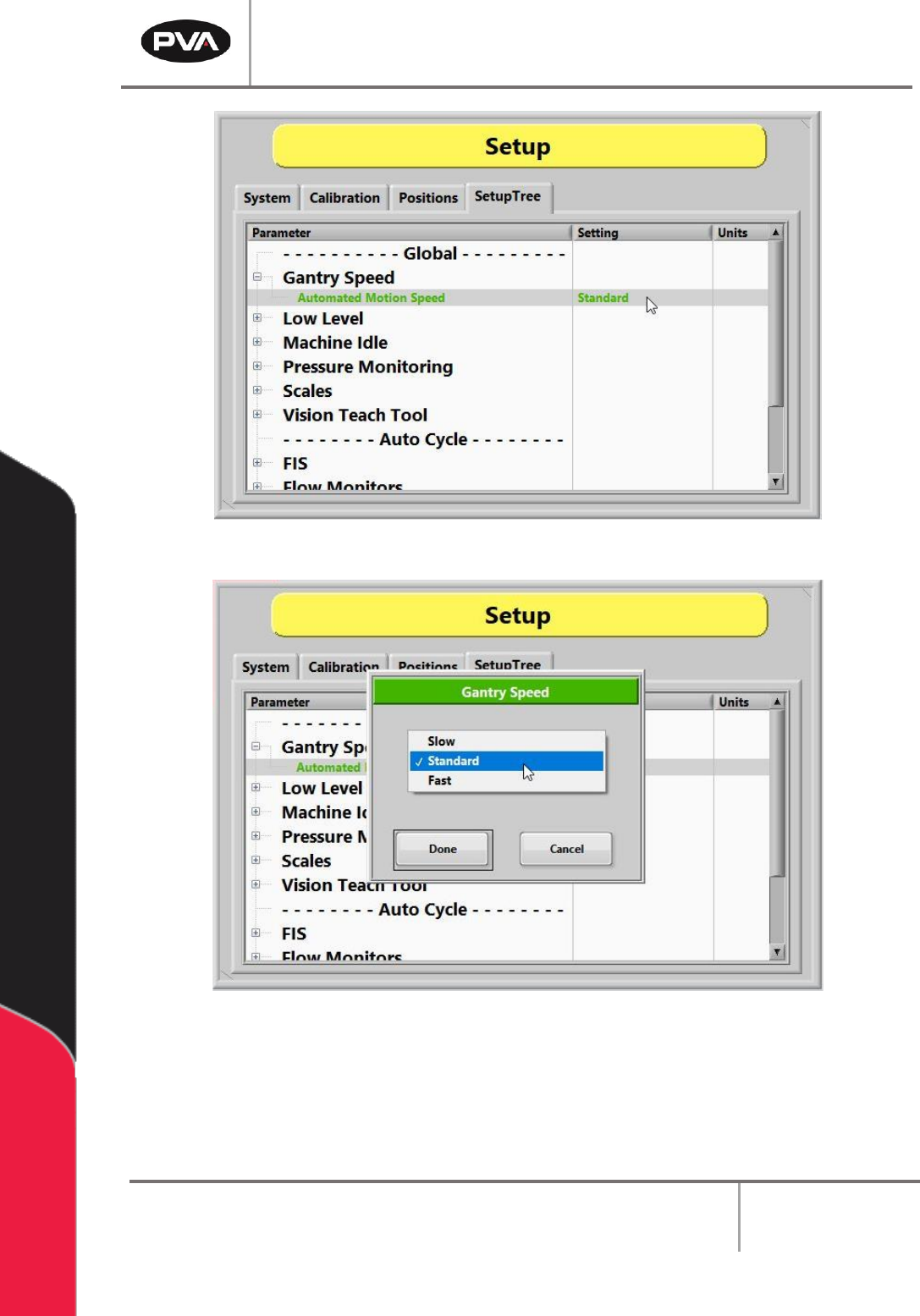

Figure 40: Gantry Speed
Figure 41: Adjusting Gantry Speed
PVA Portal Manual
Revision I / January 2022
Page 46 of 106
8.4.2 Low Level
Low Level sensor monitoring can be either enabled or disabled in the SetupTree tab.

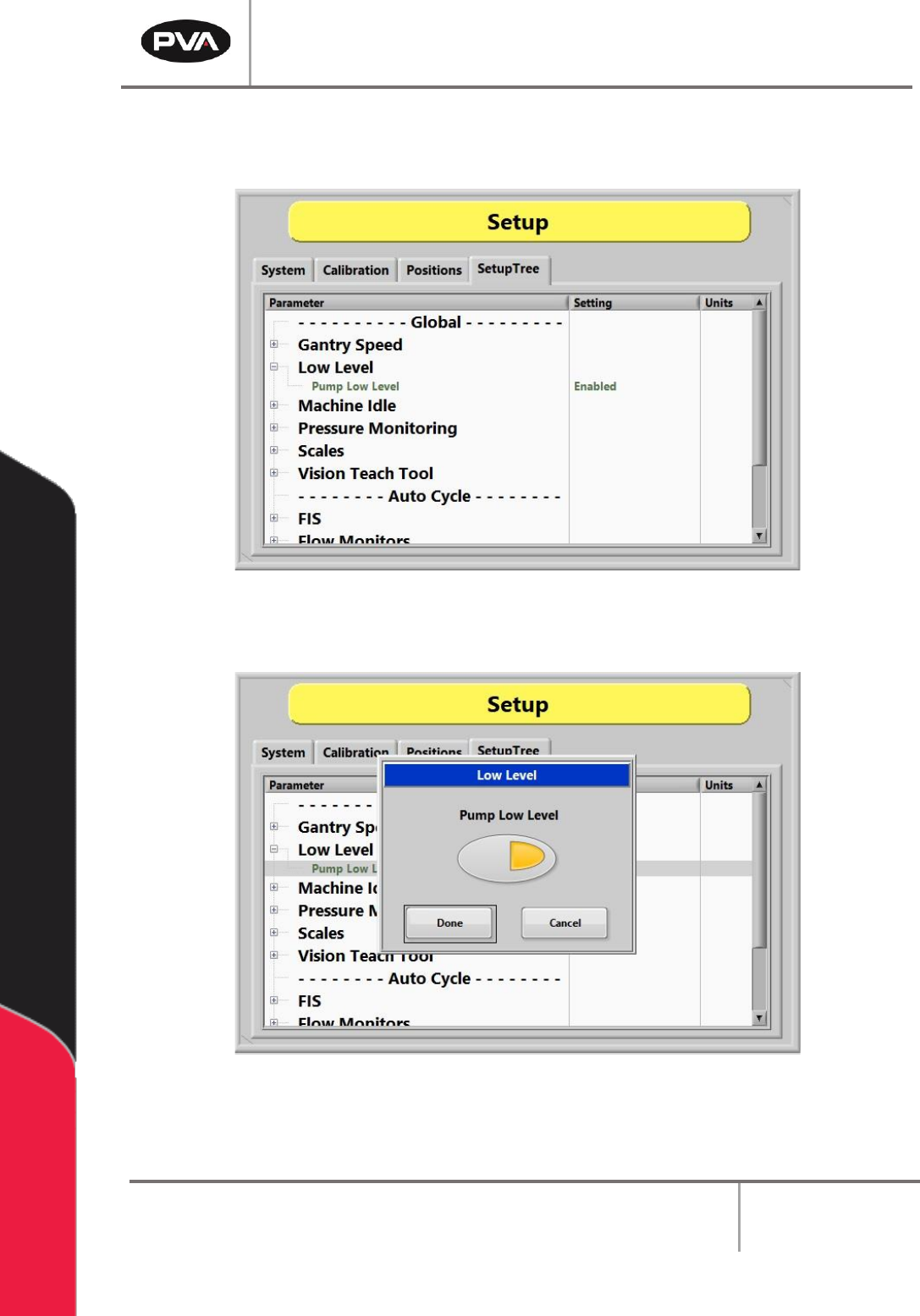

Figure 42: Low Level Sensor Monitoring Enabled
Figure 43: Adjusting Low Level Sensor Monitoring
