PVA Portal Manual
Revision I / January 2022
Page 59 of 106
9.3 Terminal
The Terminal tab is used to communicate with the controller and as a debug tool.
Figure 57: Terminal Tab
PVA Portal Manual
Revision I / January 2022
Page 60 of 106
9.4 I/O
The I/O tab contains the Galil, Remote In, Remote Out, and B&R Comm tabs that allow
the Inputs to be verified and the Outputs to be toggled on or off. Refer to the electrical
schematics for I/O designation.

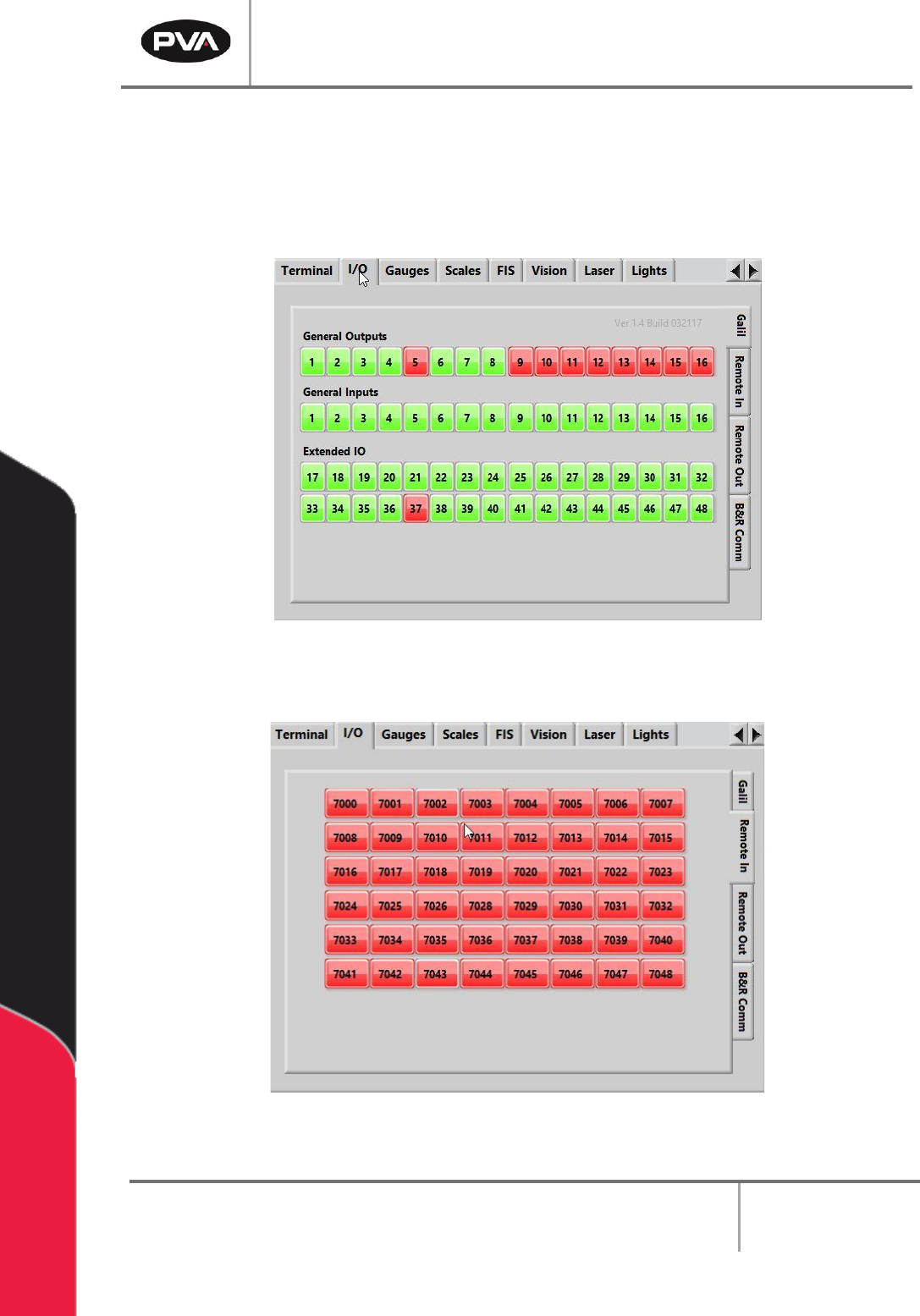

Figure 58: I/O Galil Tab
Figure 59: Remote Inputs Tab
PVA Portal Manual
Revision I / January 2022
Page 61 of 106

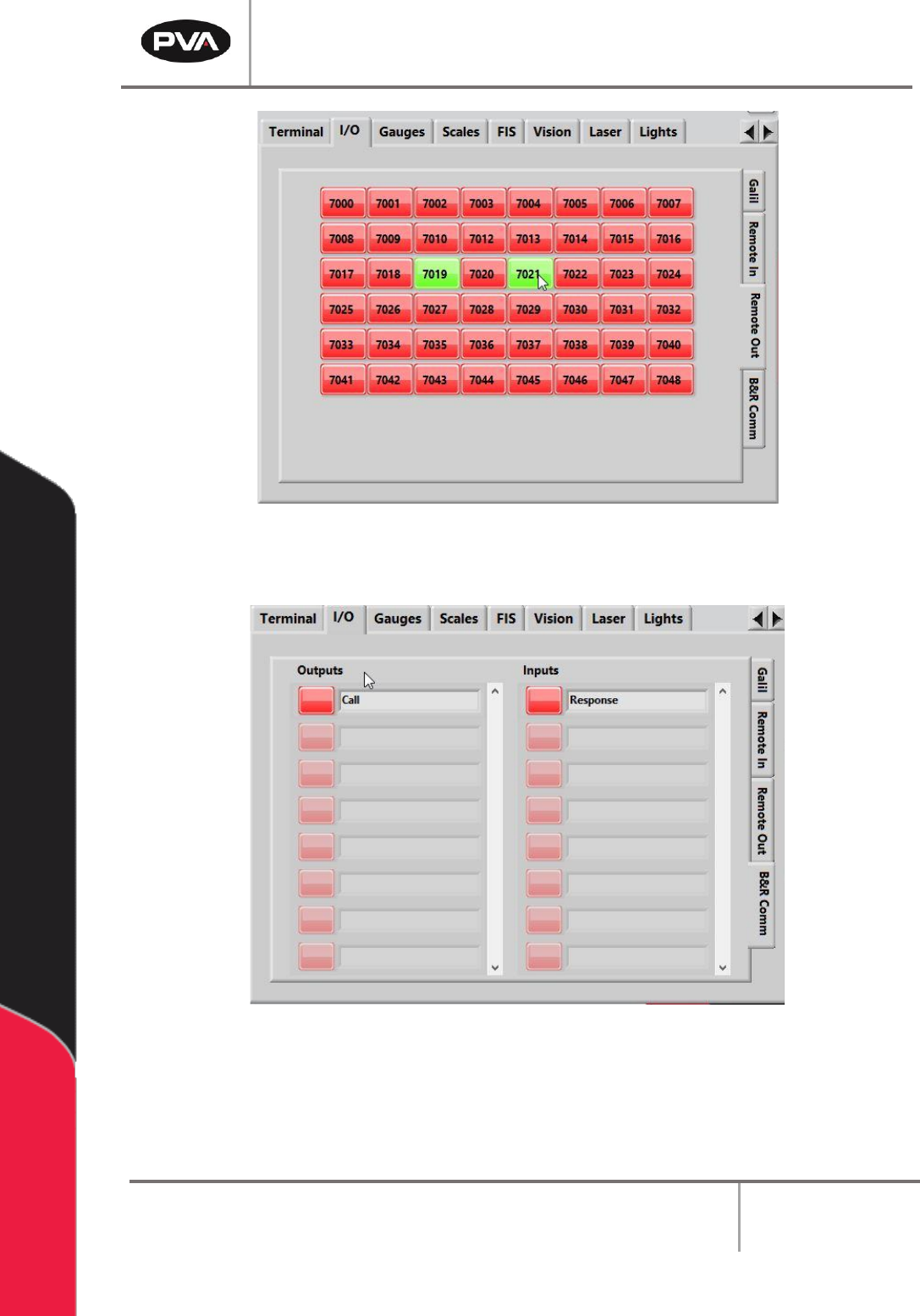

Figure 60: Remote Outputs Tab
Figure 61: B&R Comm Tab
