PVA Portal Manual Revision I / Janua ry 2022 Page 61 of 106 Figure 60 : Remote Out puts Tab Figure 61 : B&R Comm T ab
PVA Portal Manual
Revision I / January 2022
Page 60 of 106
9.4 I/O
The I/O tab contains the Galil, Remote In, Remote Out, and B&R Comm tabs that allow
the Inputs to be verified and the Outputs to be toggled on or off. Refer to the electrical
schematics for I/O designation.
Figure 58: I/O Galil Tab
Figure 59: Remote Inputs Tab
PVA Portal Manual
Revision I / January 2022
Page 61 of 106
Figure 60: Remote Outputs Tab
Figure 61: B&R Comm Tab
PVA Portal Manual
Revision I / January 2022
Page 62 of 106

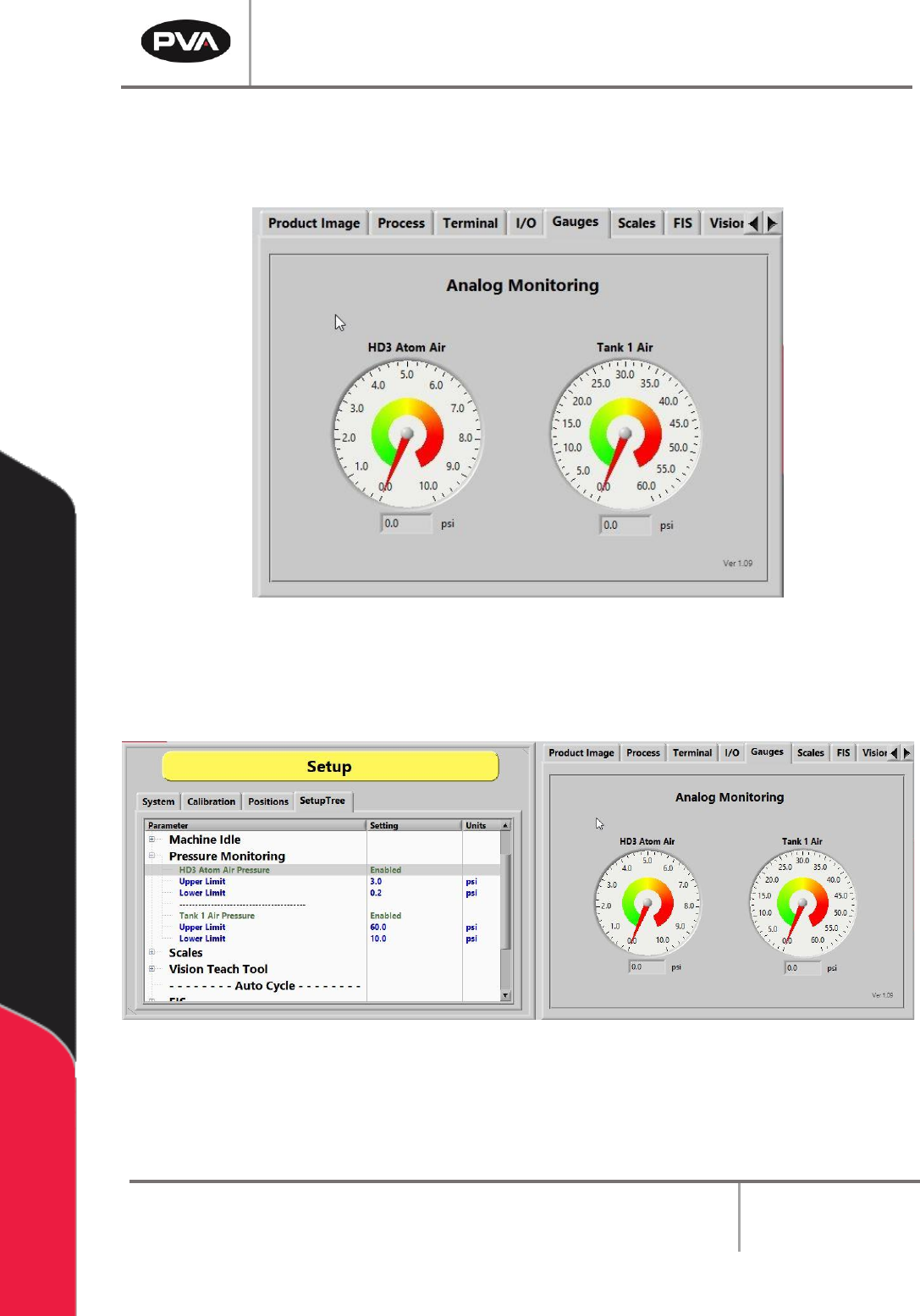

9.5 Gauges
The Gauges tab shows a readout of the digital gauges installed on the machine.
Figure 62: Gauges Tab
If enabled, the Gauges are typically monitored in the SetupTree tab.
Figure 63: Gauges Tab in the SetupTree
