3. Select the “Continue” button.
4. Refer to the Pneumatic Actuator Failure section in the Workcell Installation
Guidelines Troubleshooting Maintenance Manual for more information.
15.5 Run-Time Error Recovery Procedure
Run-time errors are generated during the operation of a program. This type of failure
should not occur during normal operation. The error type and program line number will be
displayed in the system messages window.
1. Find and record the error type, program line number, and any additional information
shown in the system messages window and contact PVA Technical Support.
2. Select the “Continue” button.

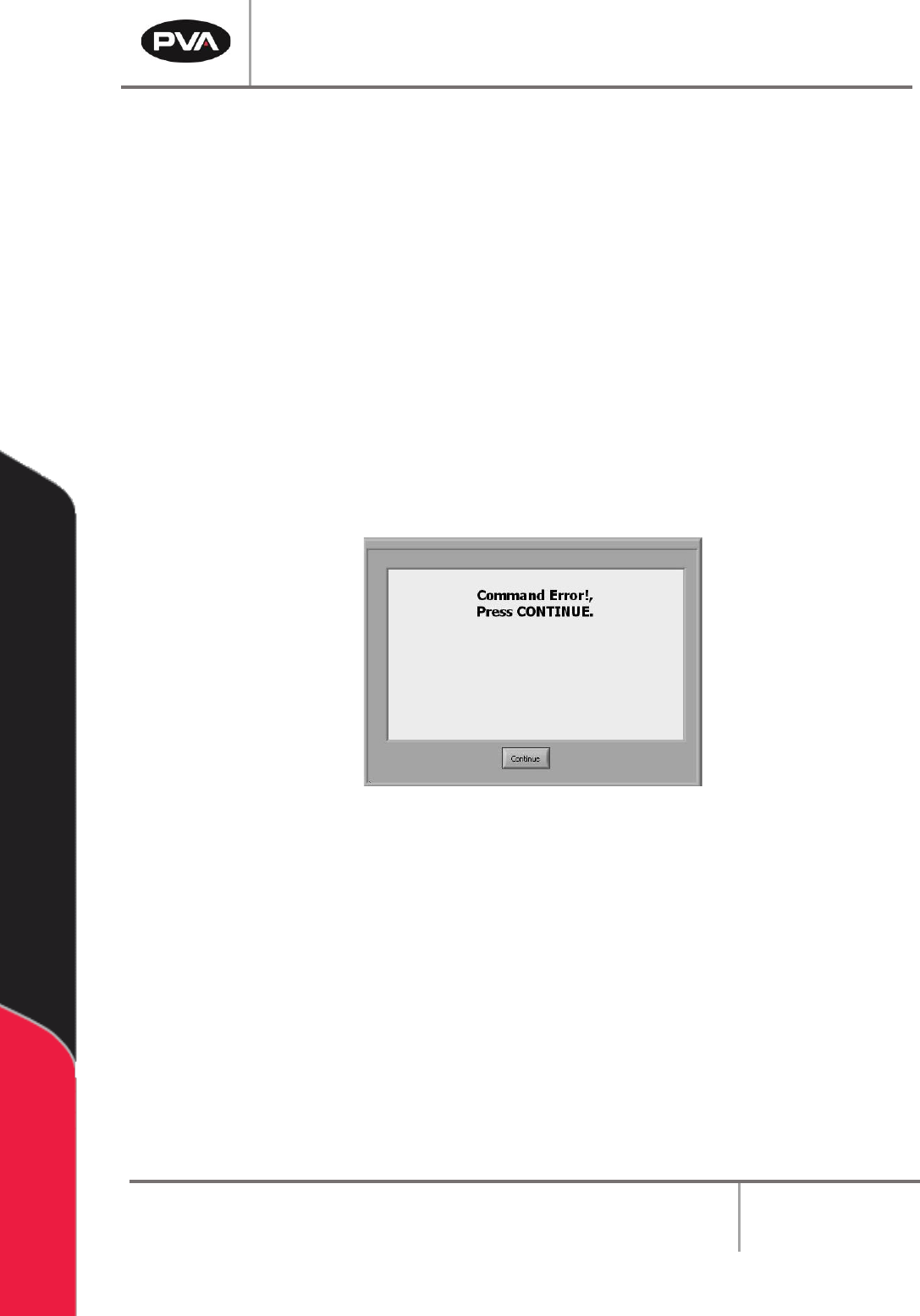

Figure 119: Command Error Example
3. Perform the Startup/Recovery Procedure. Refer to Section 15.1 for more
information.
4. Download the updated program and run it to confirm if the error was corrected.
Note: For more information on error codes, refer to the Troubleshooting guide. For
more information on programming paths, refer to the PathMaster® manual.
PVA Portal Manual
Revision I / January 2022
15.6 Position Error Recovery Procedure
A position error occurs when the difference between the commanded position and the
current position is more than the maximum allowable error limit for an axis.
An error limit will happen if the dispense/spray head hits a hard stop in Manual mode, if the
speed or acceleration is set too high, or if the axes drives are not powered. Ensure the
“Emergency Stop” button is not engaged. The motor stop codes are shown in the system
messages window.
Note: Refer to Section 15.8 for more information on stop codes.

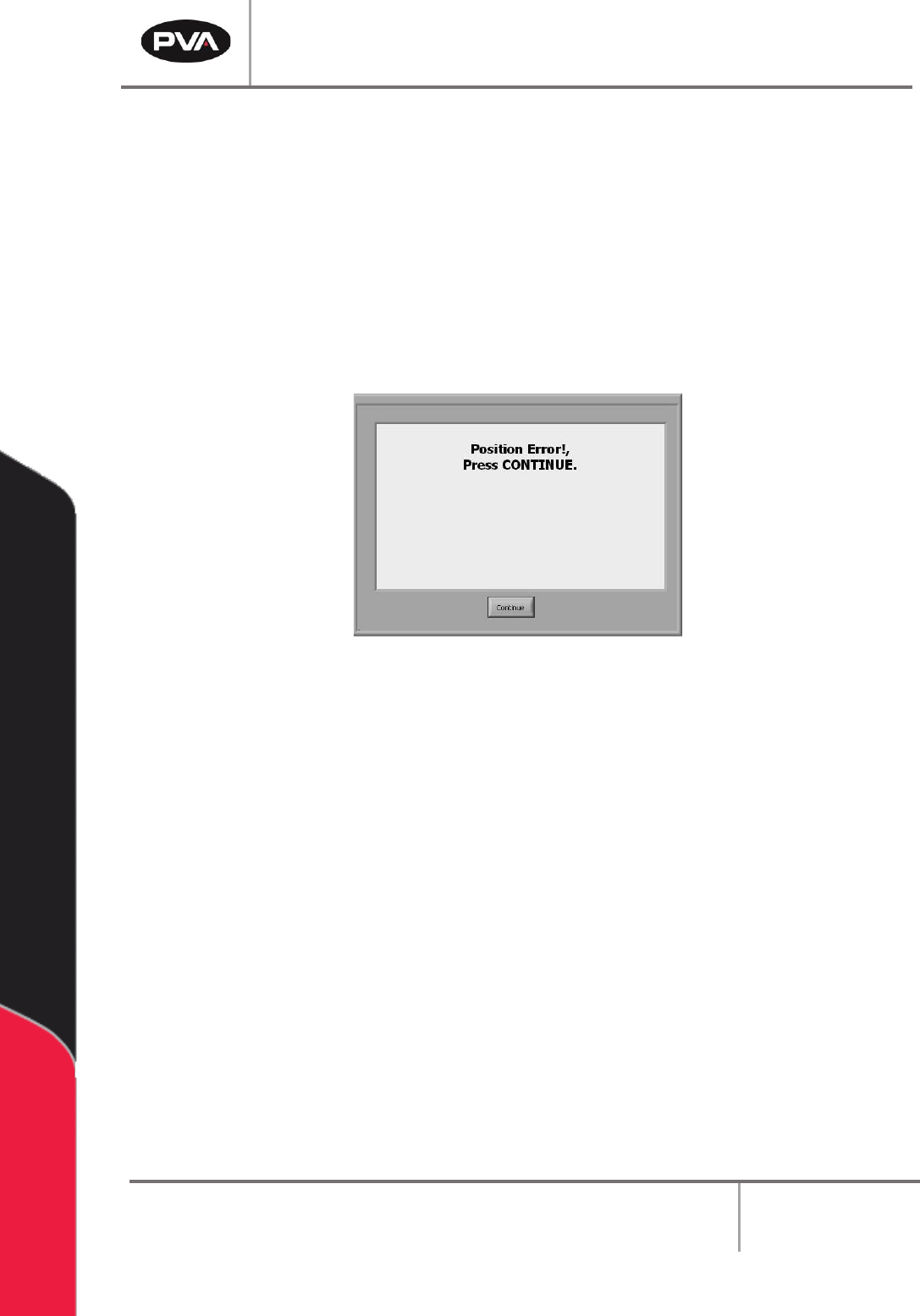

Figure 120: Position Error
To correct the position error, perform the following steps:
1. Engage the “Emergency Stop” button.
2. Open the access door.
3. Move the dispense head to the center of the work area. Engage the brake on the Z-
axis. Turn the Z-axis motor coupling by hand to move the dispense head, as
necessary.
4. Close the access door.
5. Disengage the “Emergency Stop” button.
6. Select the “Continue” button to clear the error.
7. Perform the Startup Procedure. Refer to Section 10.1 for more information.
PVA Portal Manual
Revision I / January 2022
15.7 Limit Error Recovery Procedure
The machine encounters a limit error when the gantry exceeds the software or hardware
limits. The stop codes are shown in the system messages window.
Figure 121: Limit Error
1. Engage the “Emergency Stop” button.
2. Open the access door.
3. Move the dispense head to the center of the work area. Engage the brake on the Z-
axis. Turn the motor coupling by hand to move the dispense head, as necessary.
4. Close the access door.
5. Disengage the “Emergency Stop” button.
6. Select the “Continue” button to clear the error.
7. Perform the Startup Procedure. Refer to Section 10.1 for more information.
