PVA Portal Manual
Revision I / January 2022
Page 67 of 106
10.1.1 Portal Shell
1. Ensure the computer connected to the workcell is turned on.
2. Portal Shell will open and provide a list of options.
3. Select the “Launch Portal” button to open Portal.

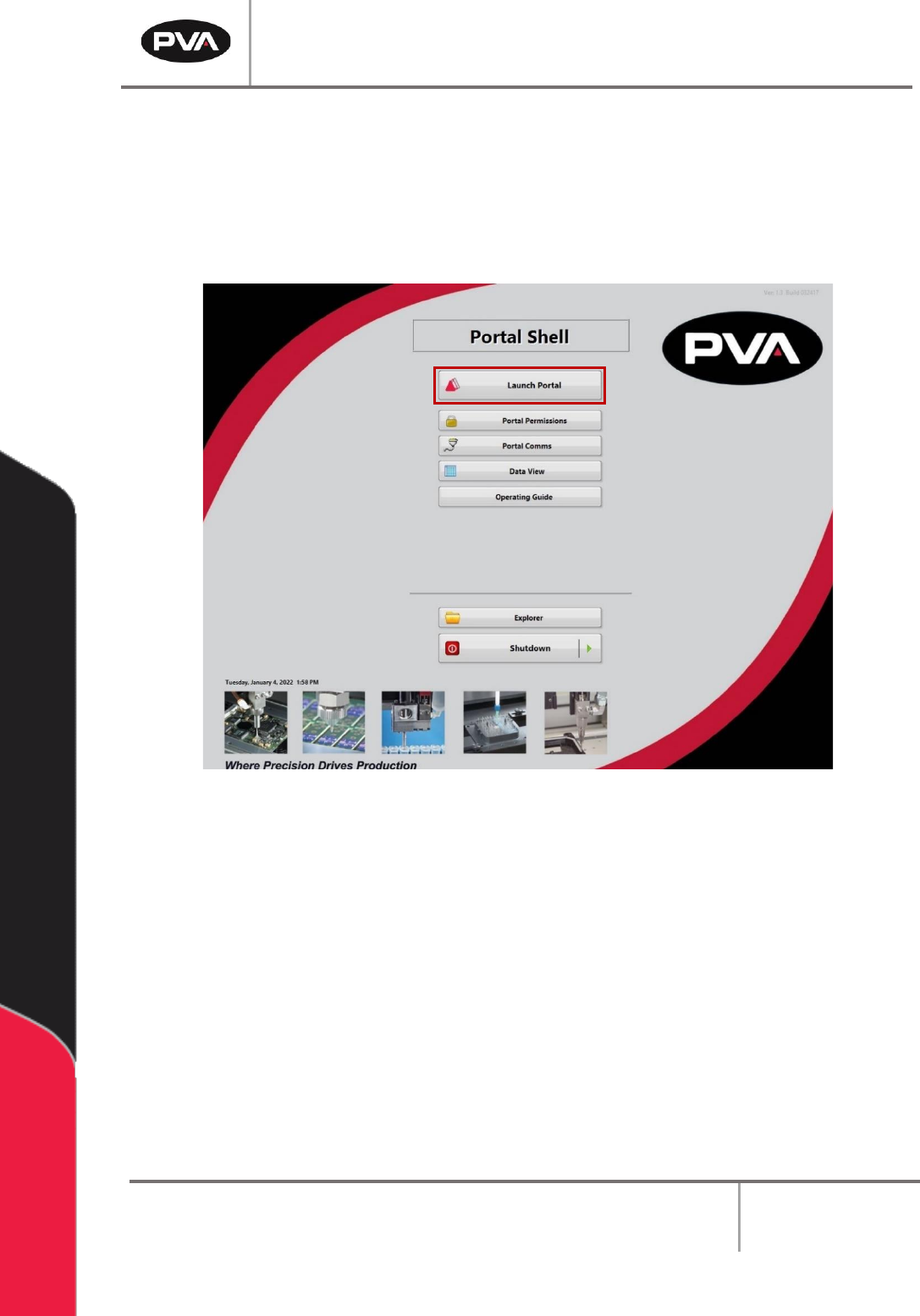

Figure 69: Portal Shell
PVA Portal Manual
Revision I / January 2022
Page 68 of 106
10.1.2 Login to Portal
Login to the PVA Portal Software by selecting the correct user and entering the
corresponding password. Push the “Enter” button on the keyboard.

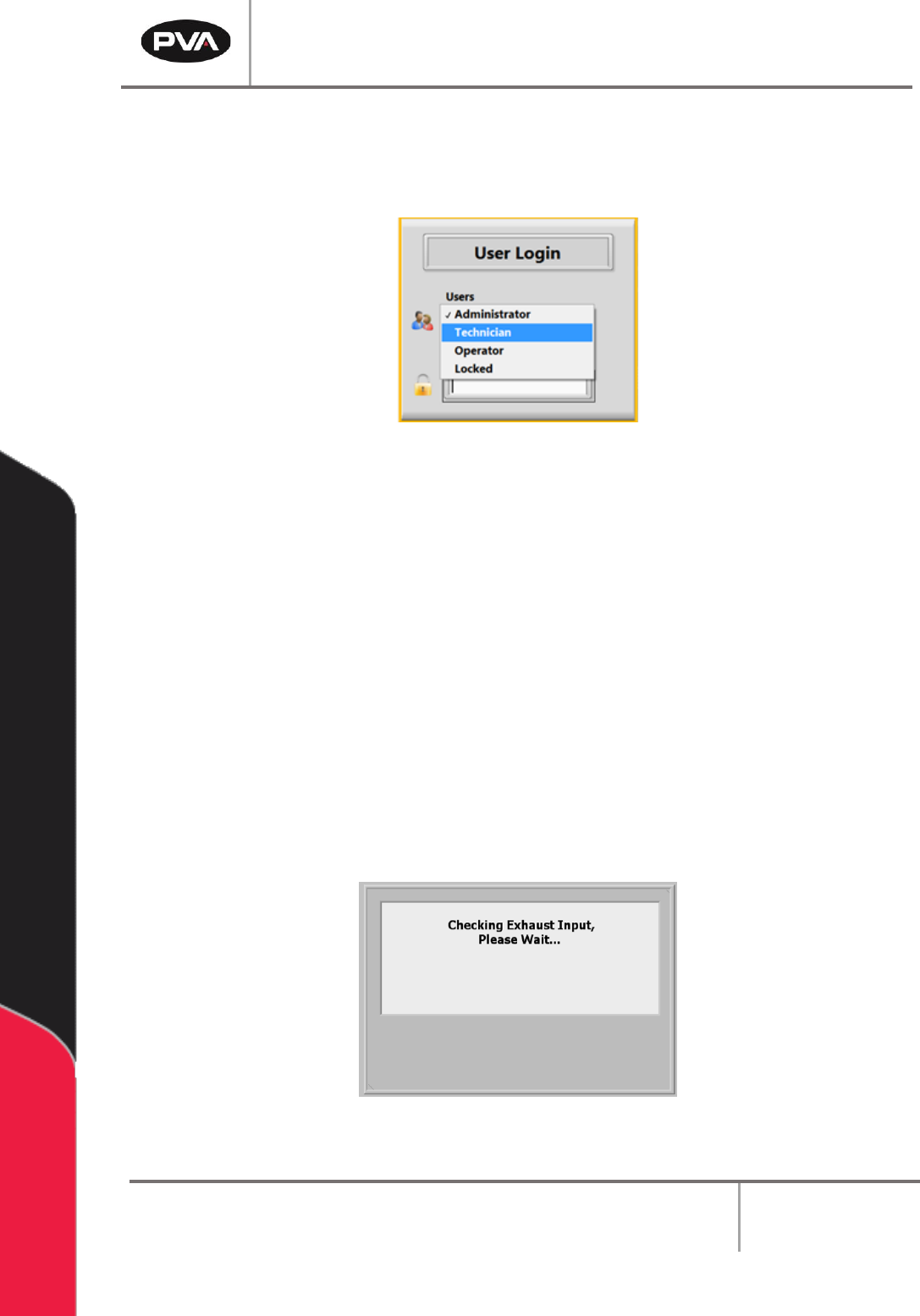

Figure 70: User Selection
Note: PVA configures the default password as blank. Refer to Section 11 for more
information on Portal Permissions.
10.2 Exhaust Verification
Once the workcell has initialized, it will perform an Exhaust Verification test of the
exhaust flow rate. If initialization fails, refer to the workcell manual for fault diagnostics.
The exhaust flow rate is monitored with the on-board pressure differential switch.
The workcell must exhaust at a rate no less than 300 cubic feet per minute (CFM),
otherwise a critical fault will occur and stop the motors. The Exhaust Verification test will
also help to evacuate any vapors that are in the work area. The time this takes is based on
the CFM and the area that must be evacuated. The Exhaust Input Screen below will be
shown:
Figure 71: Exhaust Input Screen
PVA Portal Manual
Revision I / January 2022
Page 69 of 106
10.3 Machine Safety Check
Once initialization and exhaust verification are complete, the operator interface displays
the message seen in Figure 72.
The Machine Safety Check ensures that the workcell safety devices (Emergency Stop,
Door Interlocks, Light Curtain, etc.) are operating correctly. During startup, the operator
must start the safety check and complete it successfully, or the machine will stop all
operations.
1. Select the “Continue” button.

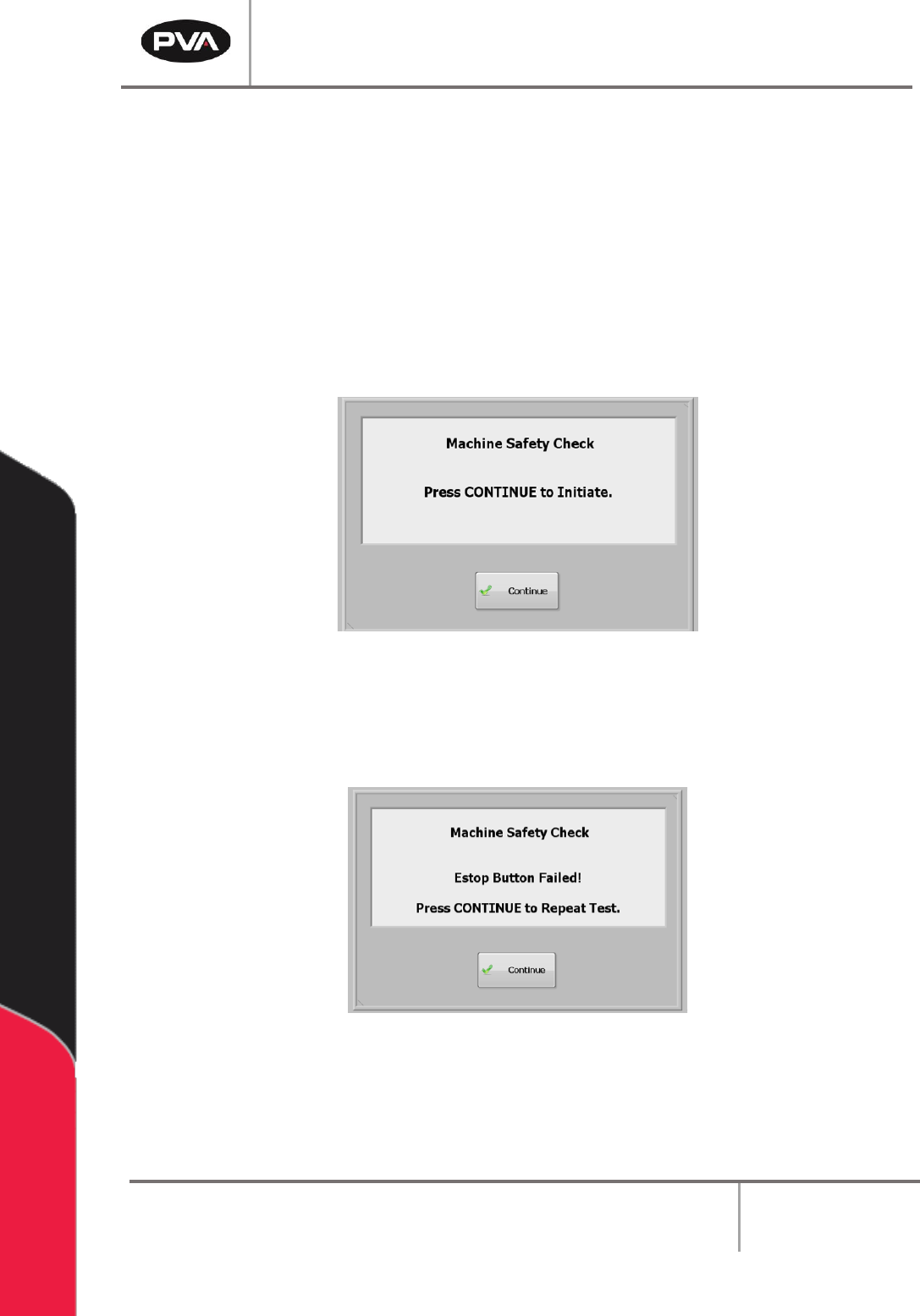

Figure 72: Machine Safety Check
2. Safety devices must be activated and deactivated when shown on the screen. All
events in this procedure are timed. If an action is not completed within 8 seconds,
an error screen will be shown.
Figure 73: Sample Estop Fail
3. Select the “Continue” button to repeat the test.
