PVA Portal Manual
Revision I / January 2022
2. To access the large pop-up display, hold the “CTRL” button on the keyboard and
double click on the message terminal.
Figure 32: FIS Message Display Window
3. To change the display format, select an option from the Display drop down menu
(Normal, ‘\’ Code, Hex Code).
4. Select “FIS 1” or “FIS 2” at the bottom right corner of the window to select the FIS
instance (server) that is desired.
5. Select the “Close” button to close the popup window.
PVA Portal Manual
Revision I / January 2022
Auto Mode

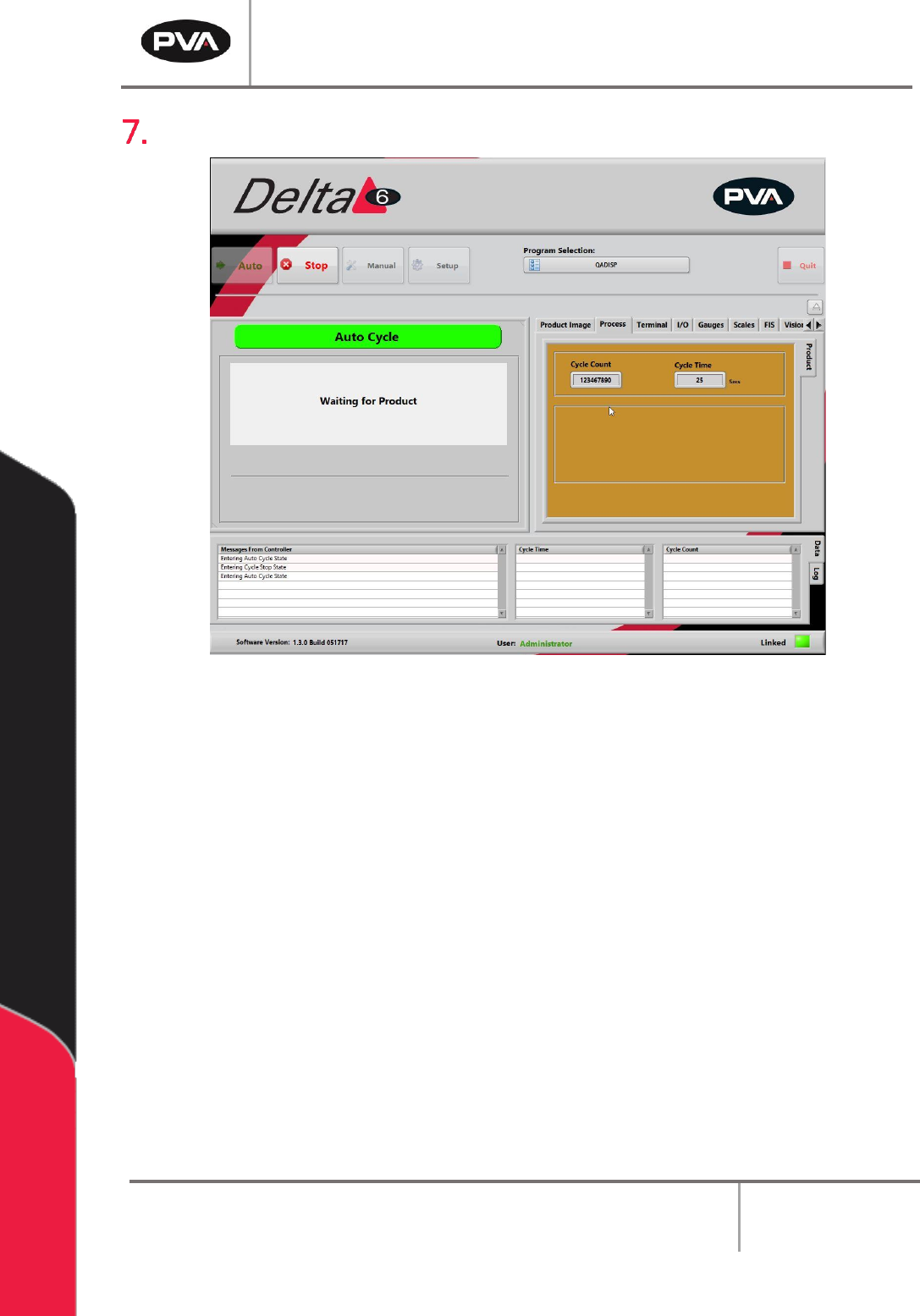

Figure 33: Auto Cycle Mode
In Auto Mode, the workcell automatically processes parts as they are available. Some
possible workcell setups include conveyor equipped, stand-alone with a door, or stand-
alone with a light curtain
For a workcell with a conveyor, the part is put on the conveyor by an operator or through
an upstream process. The part is sensed at the entrance of the workcell and is sent to the
stop. When the part is against the stop, it is sensed and the PathMaster® program will
begin. When the PathMaster® program is finished, the board is sent to the end of the
conveyor for the next step. When the part is released or removed, the procedure starts
again.
For workcells without a conveyor, all parts must be put in the workcell manually. Optional
part-in-place sensors sense when a part is present. If a part is not sensed, a “Waiting for
Product” message is shown. When the workcell is ready to operate, use the hand switches
to produce parts. Remove all finished parts before the next cycle starts.
If the workcell has a light curtain, the light curtain can be used to initiate cycles.
PVA Portal Manual
Revision I / January 2022
Setup Mode
The options shown in Portal depend on the workcell configuration. Refer to machine
specific manuals and appendices for more information.
Figure 34: Setup Mode
In Setup mode, basic workcell functions can be controlled. Auto Cycle parameters and
some workcell parameters are set in Setup mode.
8.1 System
1. Select the “System” tab.
2. Select the “Run Wet” button to toggle it on or off. Valve operation is off for Auto
Cycle when the “Run Wet” button is set to off. This does NOT affect the run option
in the Manual mode. There is a separate option in Manual mode to select “Wet” or
“Dry”. Refer to Section 6.2 for more information.
