PVA Portal Manual
Revision I / January 2022
Page 81 of 106

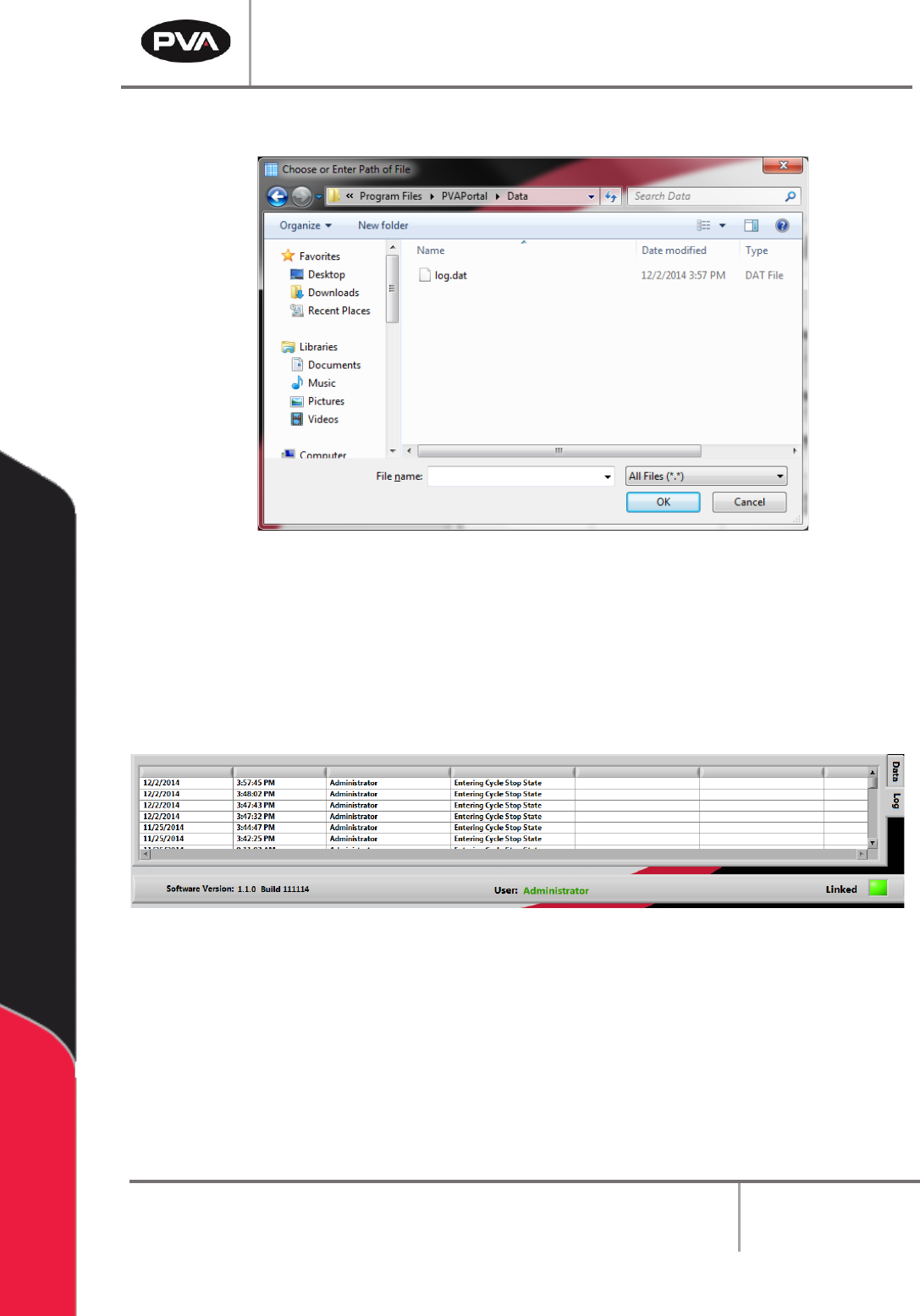

2. Select a log file to view. Click the “OK” button to load the file.
Figure 92: Log File Selection
3. While in the embedded DataView version, press and hold the ‘CTRL’ key while
‘double clicking’ the data grid to select a log file to view. The standalone version
can be launched from within Portal by pressing and holding the ‘ALT’ key while
‘double clicking’ the data grid.
Figure 93: Embedded DataView
PVA Portal Manual
Revision I / January 2022
Page 82 of 106

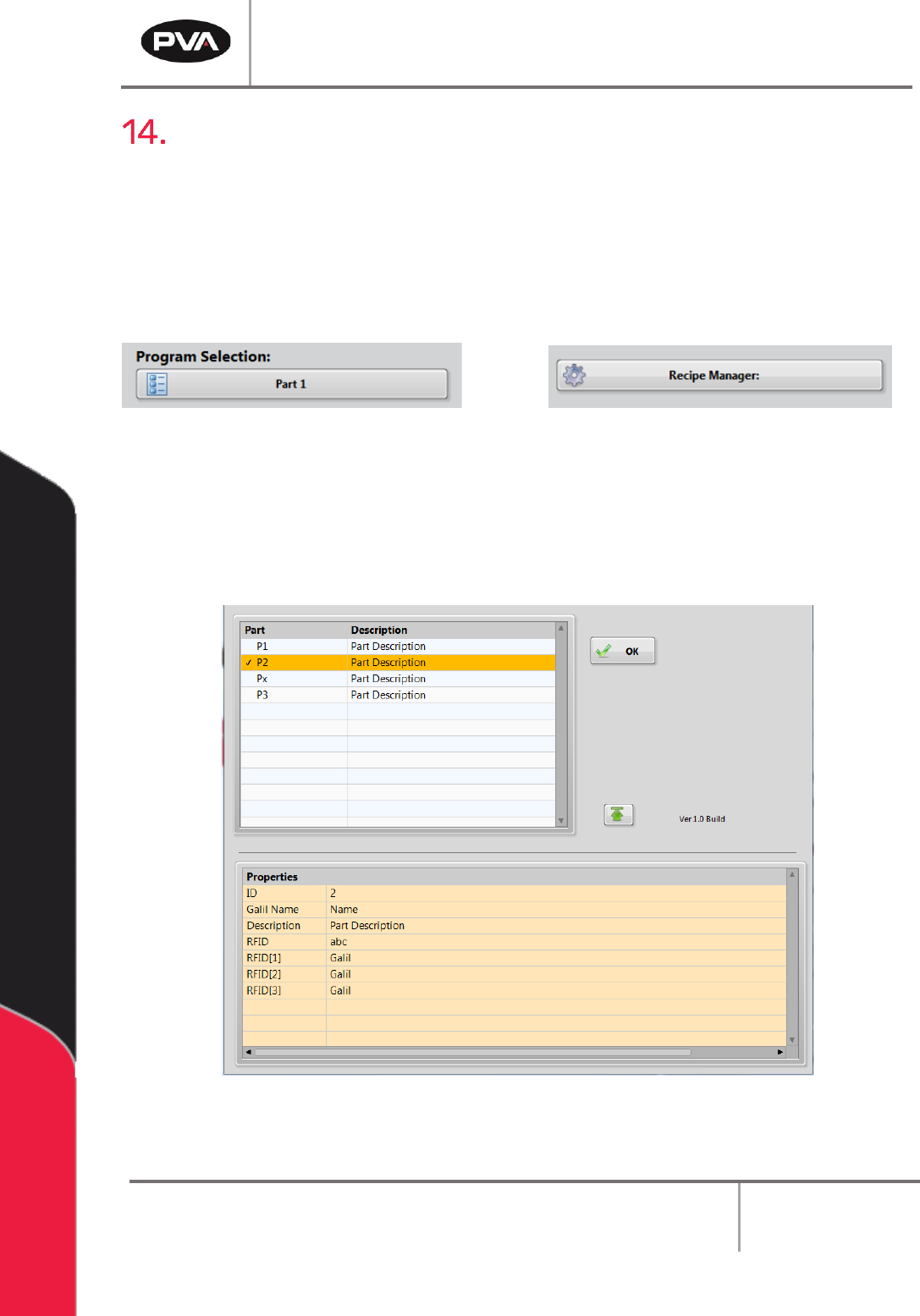

Part Manager
Part Manager is an embedded library used to manage Portal Part Selection and Part
Recipes. Part Recipes can be configured in the Recipe Manager window. The Recipe
Manager window is accessible from the Portal Part Selection field when in the workcell is
in Setup mode. The structure of a recipe can be defined from the ‘PartDataType.cfg’ file.
In Setup mode, there is a Recipe Manager drop down menu. In every other mode, the
drop-down menu will say Program Selection.
Figure 94: Recipe Manager and Program Selection Menus
14.1 Part Selection Console
1. To see the Part Selection Console, select the drop-down menu and select a part.
Figure 95: Part Selection Console
PVA Portal Manual
Revision I / January 2022
Page 83 of 106

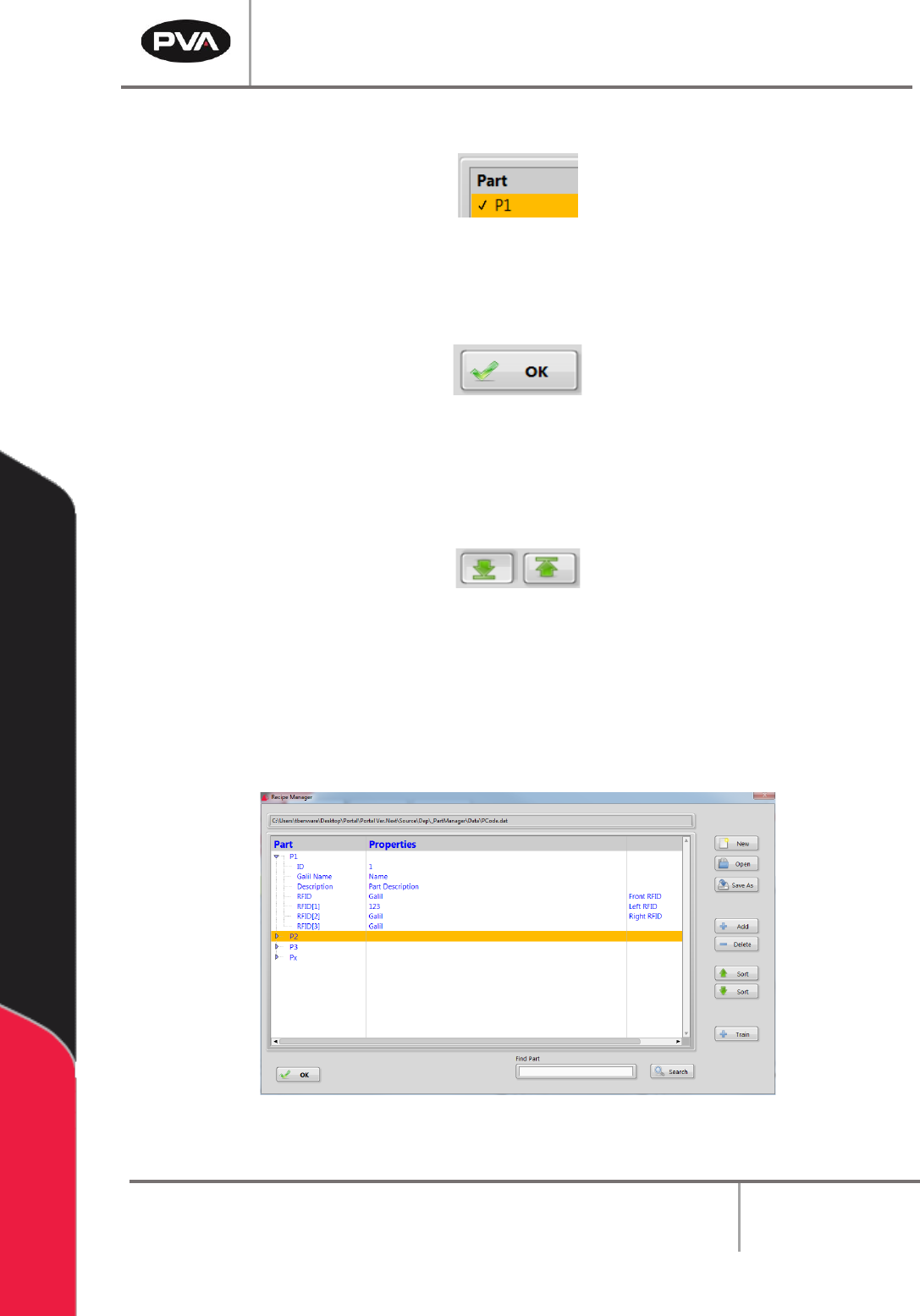

2. Select the column header to sort the part view.
Figure 96: Column Header
3. Select the “OK” button to accept the selected highlighted part.
Figure 97: "OK" Button
4. Use the arrow buttons to expand or collapse the window to view or hide current part
properties.
Figure 98: Arrow Buttons to Expand or Collapse the Window
14.2 Recipe Manager
1. In Setup mode, select “Recipe Manager” to go to the Recipe Manager.
Figure 99: Recipe Manager Window
