Technical Data ‑ 100 ‑ Item Technical specifications Faults and Protec tion Custom fault Supports custom faults, alarms, and prompts. Historical fault log Supports up to six fault logs. Fault code, fault subcode, operati…
Technical Data
‑99‑
Item Technical specifications
Custom user
parameter set
You can recombine and generate new parameter sets.
1. Used to view or set parameters quickly.
2. Used for quick access to single command through communication.
Auxiliary
functions
Timed period arrival, operating time arrival, forward/reverse run dead
zone time, frequency reference arrival, current reference arrival, and load
speed conversion
Configurable
startup
protection
Startup protection modes for different command sources can be
configured flexibly.
Automatic
carrier
frequency
adjustment
Used to improve the overload capacity and allow the carrier frequency to
be adjusted with the output frequency.
Standard
process
Process PID Provides two sets of PID parameters, which can be switched
automatically.
PID initial value, PID pause, limit amplitude, PID feedback reference
filtering, dead zone, integral saturation, forced PID, and PID feedback
loss detection
Free function
module
Supports custom needs through different free function blocks.
Supports function blocks such as arithmetic operation and logic operation
Simple PLC Supports 16 operational instructions.
Supports custom acceleration/deceleration time, speed, and operating
time.
Supports custom cycle mode.
Supports value retention upon power failure.
Supports pause and reset.
Jump frequency Allows the drive to avoid mechanical resonance points of the load.
Supports up to 4 jump frequency points.
Energy
efficiency
Energy
conservation
statistics
The energy conservation statistics function converts energy savings into
quantifiable metrics (kWh, CO2 emissions, monetary equivalents) for
visual evaluation. These values can be read by the host controller directly.
Sleep and
wake-up
Used to switch the drive to the sleep or standby mode when continuous
operation is not needed, and restart the drive when necessary to save
energy.
Commu
nica
tions
Supports two communication
modes
MD600A: CAN communication protocol
MD600S: Modbus RTU communication protocol
Communication command word Single-word control mode
Bit control mode
Free mode
Technical Data
‑100‑
Item Technical specifications
Faults
and
Protec
tion
Custom fault Supports custom faults, alarms, and prompts.
Historical fault log Supports up to six fault logs.
Fault code, fault subcode, operation data, and fault time
Load monitoring You can configure the normal operation range of the drive based on
actual operating conditions. When the corresponding range is exceeded,
you can define faults and alarms as needed.
Automatic Fault Reset The fault can be reset automatically. If the number of automatic resets is
exhausted, the fault cannot be reset. The fault whitelist and blacklist can
be configured as needed.
Automatic restart upon fault After a fault occurs, automatic fault reset and restart are supported. When
the number of automatic resets is exhausted, the fault can no longer be
reset.
The fault whitelist and blacklist can be configured freely.
Fault protection Ground fault upon power-on, drive overcurrent, drive overload, motor
overload, drive overvoltage, drive undervoltage, drive overtemperature,
input phase loss, output phase loss, communication fault, current
detection fault, motor load loss, motor step loss, motor stall, motor
overspeed, motor overtemperature, current loop error, excessive speed
deviation, demagnetization protection, overspeed protection, excessive
zero drift, EEPROM read fault, motor parameter auto-tuning fault, ground
fault, and stall in SVC
Automatic Check Supports self-test on the drive and motor, IGBT shoot-through, current
sensor sampling error, ground fault, phase loss, and phase-to-phase
short circuit.
Environ
ment
Operating location Indoors and free from direct sunlight, conductive dust, oil mist, corrosive
gas, flammable gas, vapors, water drips, and salty elements
Altitude For altitudes equal to or below 1000 m, derating is not required. For
altitude ranging from 1000 m to 3000 m, derate 1% for every additional
100 m. For altitude above 3000 m, contact Inovance.
Ambient temperature Storage temperature: -40°C to +60°C
Transportation temperature: -20°C to +60°C
Operating temperature: -20°C to +60°C. For temperatures above 50°C,
derate 2.5% for every additional 1°C. The maximum temperature is 60°C.
Humidity < 95% RH, without condensation
Overvoltage category OVCIII
Pollution degree PD2
IP rating IP40 (IP20 for power supply distribution wiring and capacitor vent)
Protection class Class I
Grid type TN, TT, star type
Technical Data
‑101‑
11.5 Product dimensions

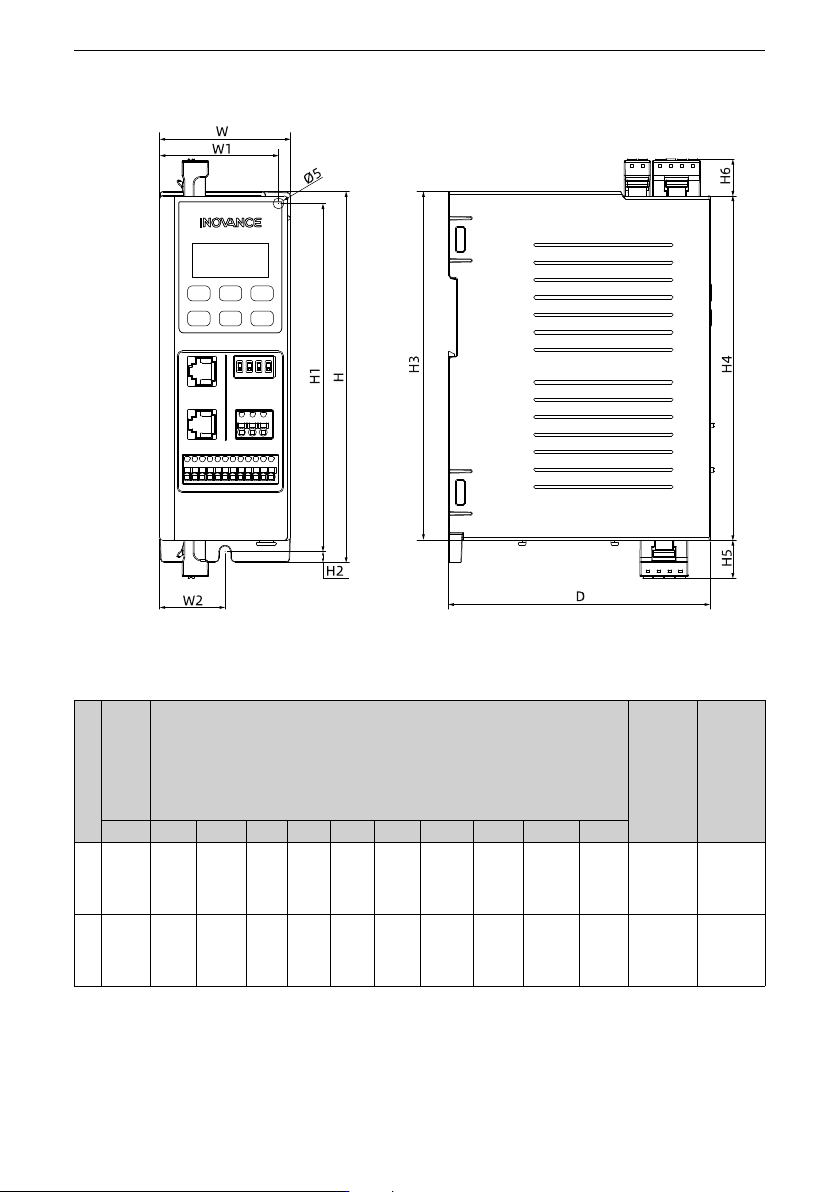

Figure 11‑2 Outline dimensions and mounting dimensions of T1 to T2 models
Table 11–4 Outline dimensions and mounting dimensions of T1 to T2 models
St-
r-
u-
ct-
u-
re
Mou-
nting
hole
mm
(in.)
Outline dimension mm (in.)
Mounting
Hole Di-
ameter
(mm/
inch)
Weight
(kg/lb)
W1 W2 H1 H2 H H3 H4 H5 H6 W D
T1 54.5
(2.15)
30
(1.18)
159.5
(6.28)
5
(0.2)
170
(6.6-
9)
160
(6.3-
0)
158
(6.22)
17.5
(0.69)
17
(0.67)
60
(2.36)
120
(4.72)
Φ5 (0.20) 0.8 (1.76)
T2 62.5
(2.46)
34
(1.34)
159.5
(6.28)
5
(0.2)
170
(6.6-
9)
160
(6.3-
0)
158
(6.22)
22
(0.87)
24
(0.95)
68
(2.68)
140
(5.51)
Φ5 (0.20) 1 (2.20)
