Shipment Check

‑81‑

7 Shipment Check

Procedure

1. Open the package and check whether the drive is intact.

If the AC drive or other accessories are damaged, do not operate or install the damaged

device.

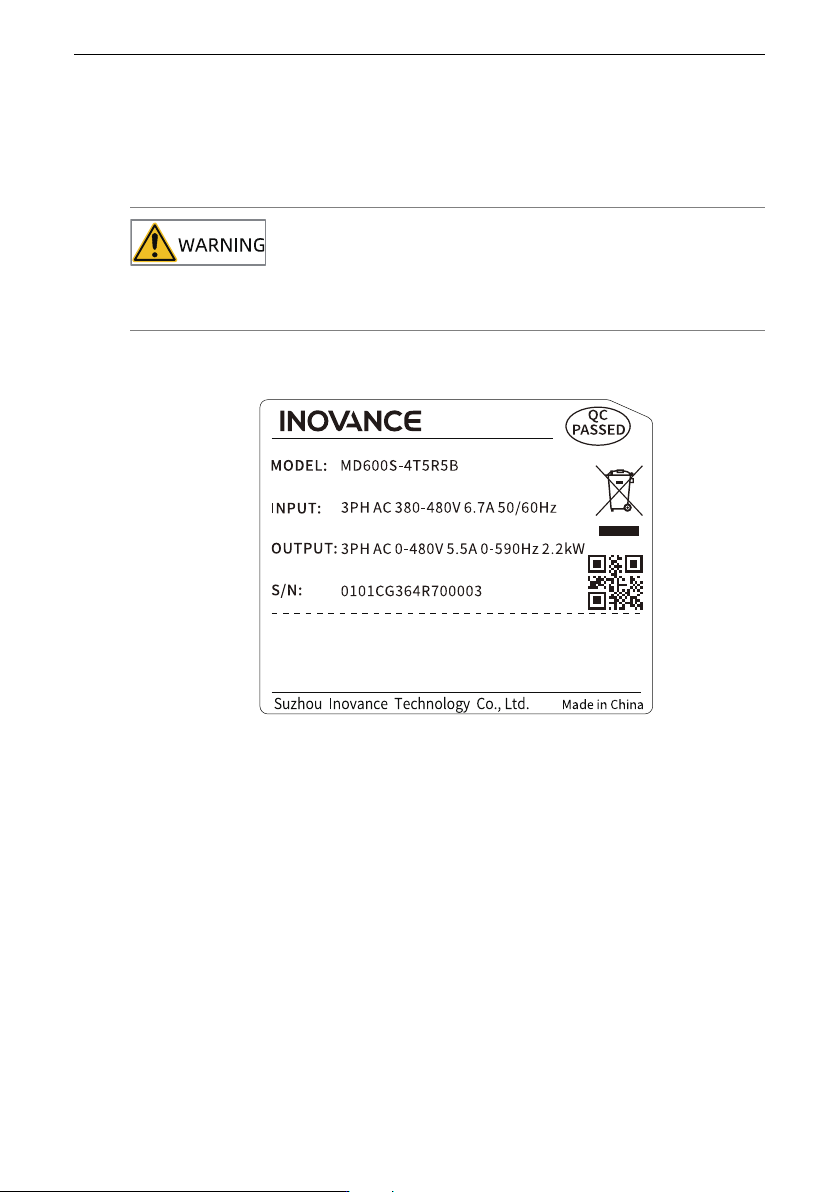

2. Check whether the drive model is consistent with that on the delivery order.

3. Record the model and serial No.

Power Supply Compatibility Check

‑82‑

8 Power Supply Compatibility Check

Check and ensure that the voltage of the mains power is compatible with the voltage of

the AC drive power supply.

The following table describes the AC drive models and power supply voltage.

Table 8–1 AC drive models and power supply voltage

Rated voltage

AC drive model

Single-phase 200 V to 240 V

MD600S/A-2S2R8

MD600S/A-2S4R6

MD600S/A-2S7R5B

MD600S/A-2S010B

Three-phase 380 V to 480 V

MD600S/A-4T1R6

MD600S/A-4T2R3

MD600S/A-4T4R8

MD600S/A-4T5R5B

MD600S/A-4T9R5B

MD600S/A-4T013B

Note

MD600S indicates the RS485 model, and MD600A indicates the CAN model.

Unpacking and Handling

‑83‑

9 Unpacking and Handling

Unpacking

1. Open the package of the AC drive (①).

2. Take out the cushion (②).

3. Take out the AC drive (③) and the accessory kit (④).

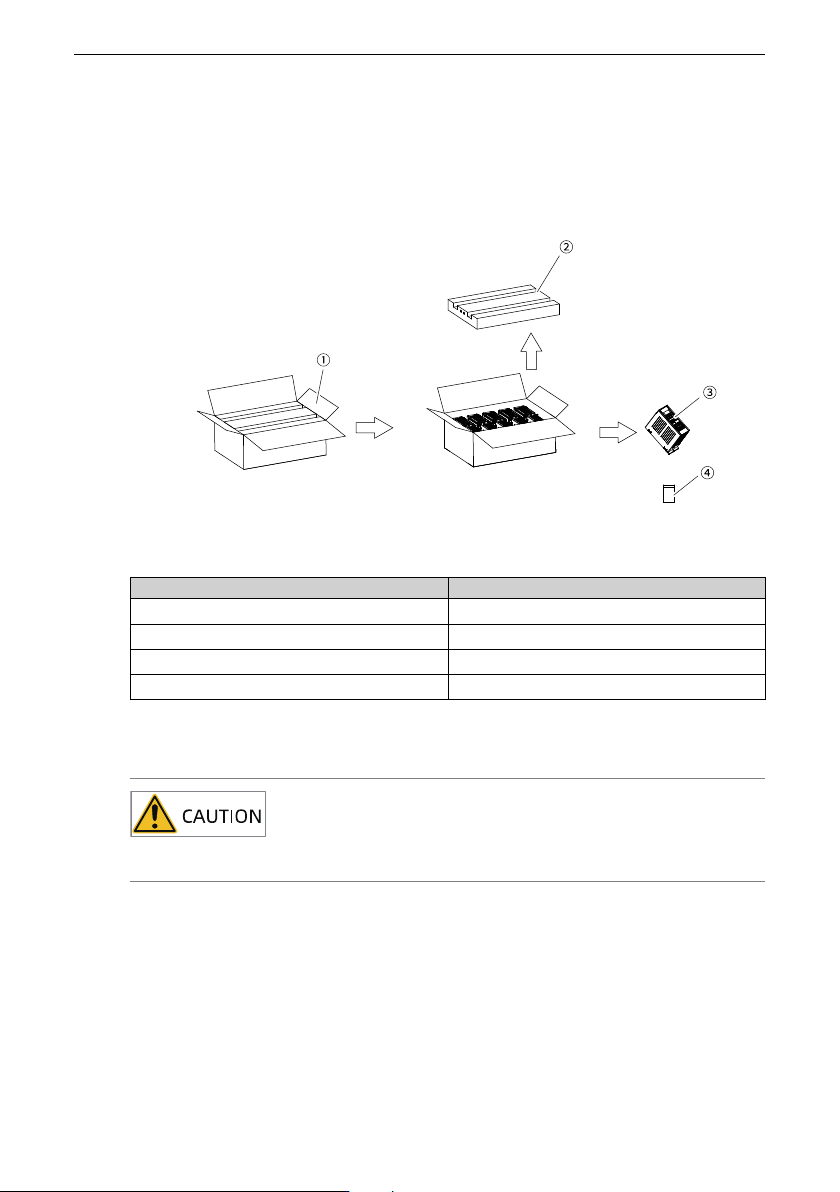

Figure 9‑1 Unpacking

Table 9–1 Unpacking list

No. Name

①

AC drive package

②

Cushion

③

AC drive

④

Accessory Kit

Storage

Store and transport the equipment as required to prevent damage.

● The drive must be stored in a clean and dry room, where the temperature ranges from

-20°C and +60°C and temperature change rate is smaller than 1°C/min.

● Do not store or transport the equipment in locations where the equipment may be

exposed to splashing water or rain, direct sunlight, strong electric field, strong

magnetic field, or strong vibration.

● Do not expose the drive to environments with moisture, high temperature, or strong

sunlight for a long time.
