Option ‑ 112 ‑ Figure 12‑10 Dimensions of AC output reactors (15 A) Table 12–9 Dimensions of AC output reactors (15 A, unit: mm) Model A B C G F I J MD-OCL-15-0.47-4T-1% 148±1 140 155 76±2 61 ± 2 95±1 Φ6x15
Option
‑111‑
Dimensions
Dimensions of the AC output reactor:
Figure 12‑9 Dimensions of the AC output reactor (5-10 A)
Table 12–8 Dimensions of the AC output reactor (5-15 A) (unit: mm)
Model A B C G F I J
MD-OCL-5-1.4-4T-1% 105 ± 1 130 110 84 ± 2 65 ± 2 91 ± 1 Φ6x11
MD-OCL-7-1.0-4T-1% 105 ± 1 130 110 84 ± 2 65 ± 2 91 ± 1 Φ6x11
MD-OCL-10-0.7-4T-1% 105 ± 1 130 110 84 ± 2 65 ± 2 91 ± 1 Φ6x11
Option
‑113‑

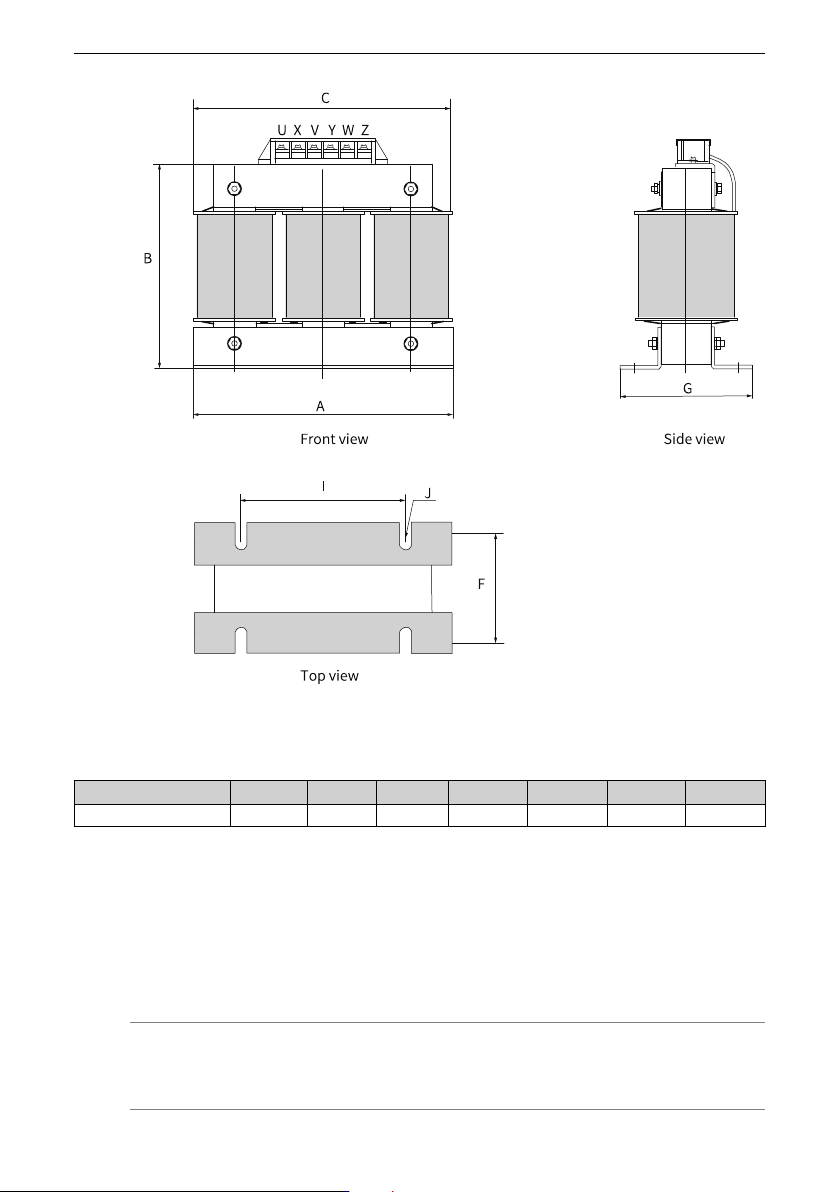

Figure 12‑11 Dimensions of 20 A AC output reactors
Table 12–10 Dimensions of the AC output reactor (20 A) (unit: mm)
Model A B C G F I J
MD-OCL-20-0.35-4T-1% 148±1 165 155 76±2 61 ± 2 95±1 Φ6x15
12.6 EMC Filter
To comply with the requirements of EN IEC 61800-3, install an external EMC filter listed in
the following table. You can select FN 2090 and FN 3287 series EMC filters manufactured
by Schaffner. Select the EMC filter according to the rated input current of the drive, as
shown in the following table.
Note
If you need a filter of Schaffner, you can purchase it from the manufacturer.
