Fundamental Safety Instructions
‑20‑
Malware (such as viruses, Trojans, and worms) can bring the device into an unsafe oper-
ating state, resulting in death, serious injury, and property damage. Observe the follow-
ing precautions:
● Always use the latest software version. If the product version is no longer
supported or the latest version is not used, you will be exposed to increased risk
of cyber attacks.
● Develop and maintain appropriate protective measures (including but not
limited to antivirus software, firewalls, WAF, IPS/IDS, situational awareness
system, identity authentication, and data encryption) to prevent the files in
mobile storage devices from being damaged by malware, and to protect the
products, networks, systems, and interfaces from unauthorized access,
tampering, hacking, data leakage, or information theft.
● Check all safety-related interfaces and settings after commissioning.
Product Information
‑21‑
2 Product Information
2.1 Product Overview
The MD600 series is a compact, general-purpose, and cost-effective AC drive for small
automation equipment. Featuring ease of use and high reliability, it is mainly used to
control and adjust speed of three-phase AC asynchronous motors and synchronous
motors. The drive is suitable for industries such as the crystalline silicon, lithium battery,
wood working, logistics, food and beverage, cables, machine tool, and packaging.

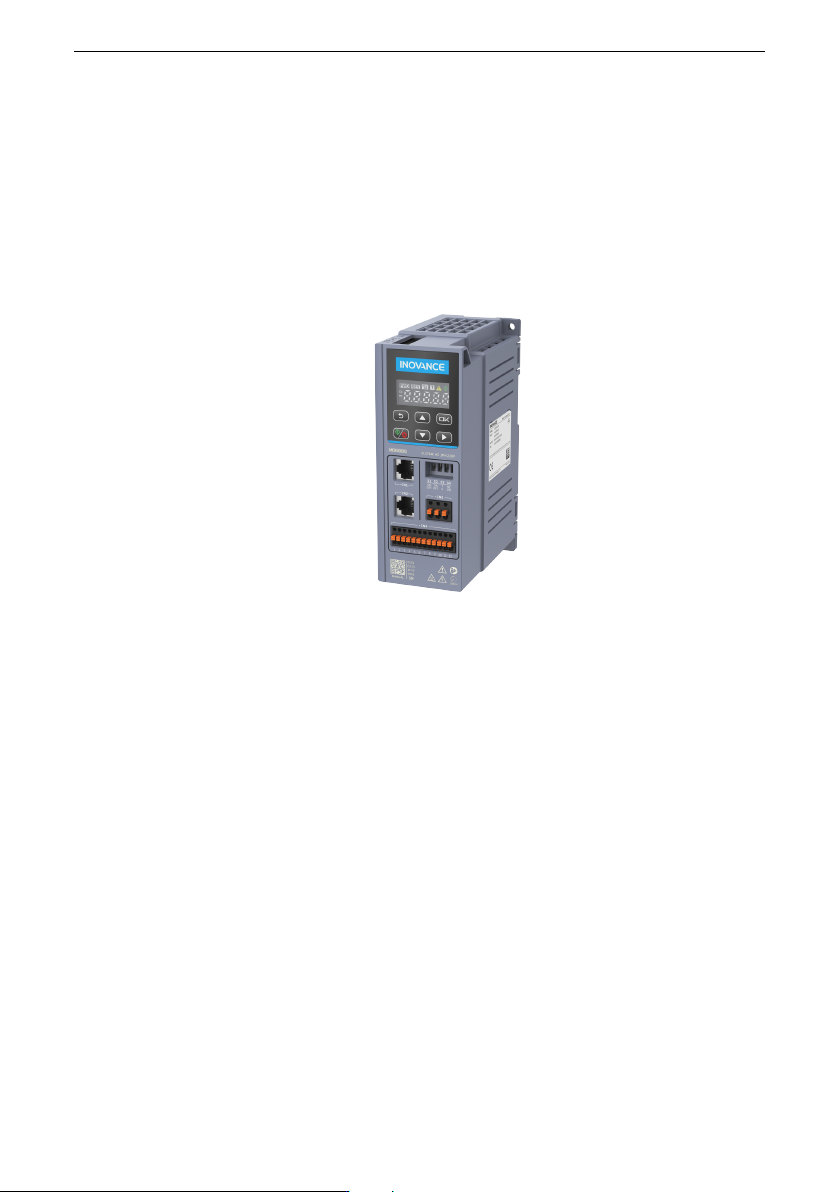

Figure 2‑1 Product appearance
The AC drive highlights the following:
● Cost-effective: Reduces equipment life cycle costs through technical innovation and
enhanced experience design.
● Compact: 38% smaller than the previous generation; heat dissipation technology of
the vapor chamber; reduces cabinet costs by multi-axis installation.
● Easy to use: Crimping terminals; communication networking with dual network ports;
easy speed control through the keypad, saving labor costs for equipment
commissioning.
● Reliable: Independent air duct; conformal coating on the drive board; intelligent fan;
anti-rotation protection; slip start; stable running, reducing losses caused by stop.
Product Information
‑22‑
2.2 Nameplate and Model
Model Description
①
Product name
MD600: AC drive series
④
Output current (A)
1R6: 1.6 A
5R5: 5.5 A
...
013: 13 A
Note: R represents the
decimal point ".".
②
Model
S: RS-485 model
A: CAN model
⑤
Braking unit
B: With the braking unit
Blank: N/A
③
Voltage level (V)
2S: Single-phase 200 V to 240 V
4T: Three-phase 380 V to 480 V
-
Nameplate description
