● Dimensions of Schaffner FN2090 filters:
Figure 12‑12 Dimensions of FN2090 filters (unit: mm)
Table 12–14 Dimensions of FN2090 filters (unit: mm)
Rated
current
(A)
A B C D E F G H I
J
K L M N
3
85 54 30.3 64.8 49.8 75 27 12.3 20.8 19.9 5.3 6.3 0.7 6.3 × 0.84
6
8 113.5±1 57.5±1 45.4±1 94±1 56 103 25 12.4 32.4 15.5 4.4 6 1 6.3 × 0.8
● Dimensions of Schaffner FN3287 filters:
Figure 12‑13 Dimensions of FN3287 filters (unit: mm)
Option
‑116‑
Table 12–15 Dimensions of FN3287 filters (unit: mm)
Rated
current
(A)
A B C D E F G H
J±2
K L±1 M
10 180 40 112 153 0.8 170 20 4.5 94 11 68 M5
16 200 45 112 170 0.8 185 25 5.4 102 11 76 M5
25 205 45 132 173 0.8 190 25 5.4 113 13 83 M5
Note
If you need an EMC filter of Schaffner, you can purchase it from the manufacturer.
12.7 Braking Resistor
Braking resistor protection

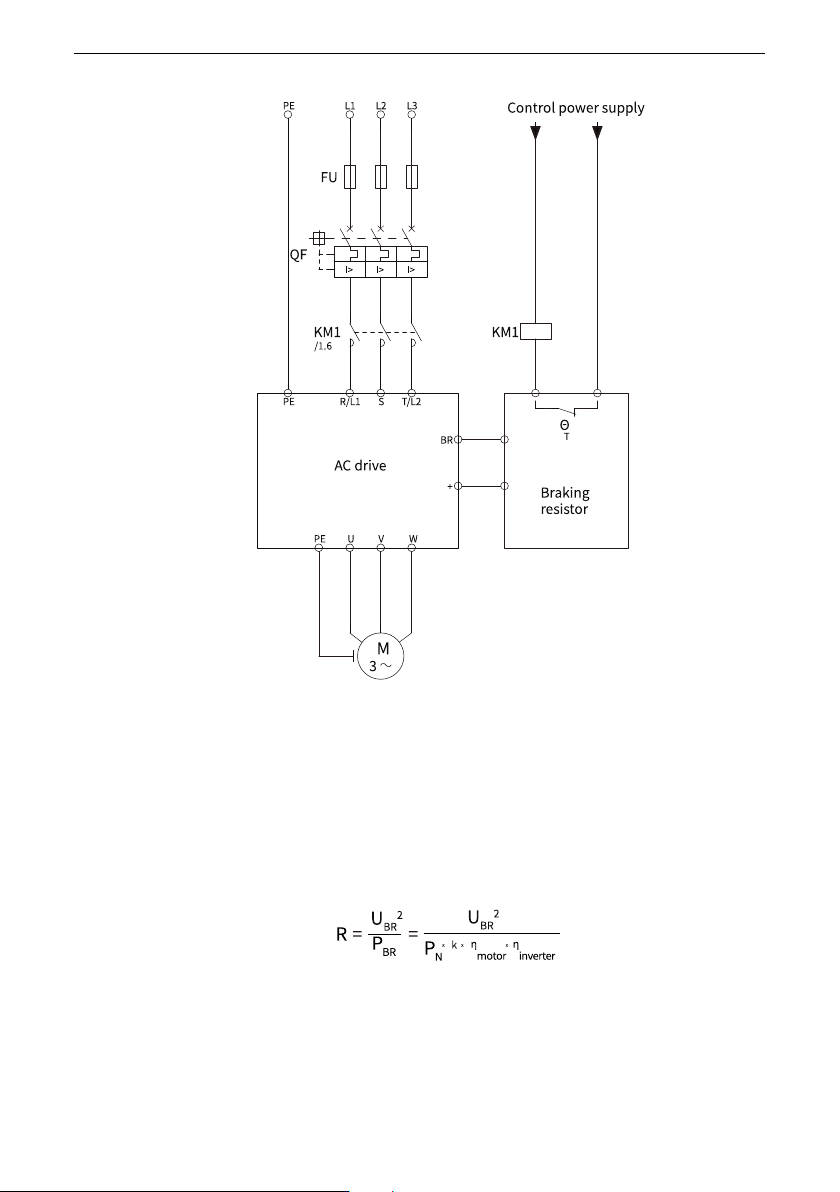

In applications where a braking resistor is installed, it is recommended to use a resistor
with a temperature switch to ensure safety and avoid overheating and burning of the
braking resistor. Connect the temperature switch output to the electromagnetic contactor
control circuit on the front end of the drive (as shown in the following figure) to
implement the interlock protection function. When the resistor overheats, a tripping fault
occurs, avoiding the resistor to be burned.
Option
‑117‑
Selecting the resistance of the braking resistor
The built-in braking unit of the drive processes the regenerative energy generated by the
motor during deceleration. When the DC bus voltage exceeds the limit set by the
software, the braking unit automatically turns on and connects the braking resistor to the
DC bus. The braking resistor consumes the regenerative energy to keep the bus voltage
within the safe range. The braking resistor is disconnected until the bus voltage drops
below a certain range. The resistance of the braking resistor is calculated based on the
following formula.
