Installation
‑56‑
5 Installation
5.1 Installation Preparation
5.1.1 Installation Environment Requirements
Table 5–1 Environment requirements
Environment Conditions
Installation location Indoors without direct sunlight, dust, corrosive gas, combustible
gas, oil mist, water vapor, drip, or salt
Overvoltage category
of the power grid
Overvoltage category Ⅲ
Temperature
Installation/Operating temperature: –10°C to +50°C. When the
temperature ranges from –10°C to +40°C, no derating is
required. For temperature above 40°C, derate 1.5% for every
additional 1°C.
Storage/Transportation temperature: -20°C to +60°C.
● For better reliability, use the product in places without drastic
temperature change.
● When installing the drive in an enclosed cabinet, use the
cooling fan or air conditioner to keep the incoming air
temperature below 50ºC. Failure to comply will result in
overheat or fire.
● Install the drive on a flame-retardant surface, with sufficient
clearance reserved for heat dissipation.
● Take measures to prevent the drive from being frozen.
Humidity Storage/Ambient humidity: <95% RH, non-condensing
Environment
Pollution degree 2 or below
Install the drive in a place that meets the following
requirements:
● Free from direct sunlight, dust, corrosive gas, combustible or
explosive gas, oil mist, water vapor, drip, or salt
● Not prone to vibration and away from equipment that may
generate strong vibration, such as a punch press
● Free from unwanted objects such as metallic dust, oil, and
water that may enter the drive
● Free from radioactive materials, combustible materials,
hazardous gas and liquid, and salt corrosion
● Away from combustible materials such as wood
● The mounting base plate must be free from oil and grease. Do
not use tapping oil or liquid thread locker.
Installation
‑57‑
Environment Conditions
Altitude
● 1000 m and below: Derating is not needed.
● Derating is needed for altitudes above 1000 m (derate 1% for
every additional 100 m).
If the altitude is higher than 2000 m, consult your Inovance
agent or sales personnel.
Vibration resistance
● Operation scenario: Tested according to IEC 60068-2-6.
Amplitude at 5 Hz to 8.4 Hz: 3.5 mm; acceleration at 8.4 Hz to
200 Hz: 1 g; 10 cycles/axis
● Transportation scenario: Tested according to IEC 60068-2-64.
Power spectrum density at 5 Hz to 100 Hz: 0.01 g²/Hz; power
spectrum density at 200 Hz: 0.001 g²/Hz; Grms: 1.14 g
Shock Operating/Transport environment: Tested according to IEC
60068-2-27. Acceleration: 15 g; pulse width; 11 ms; 18 times in
directions of three axes

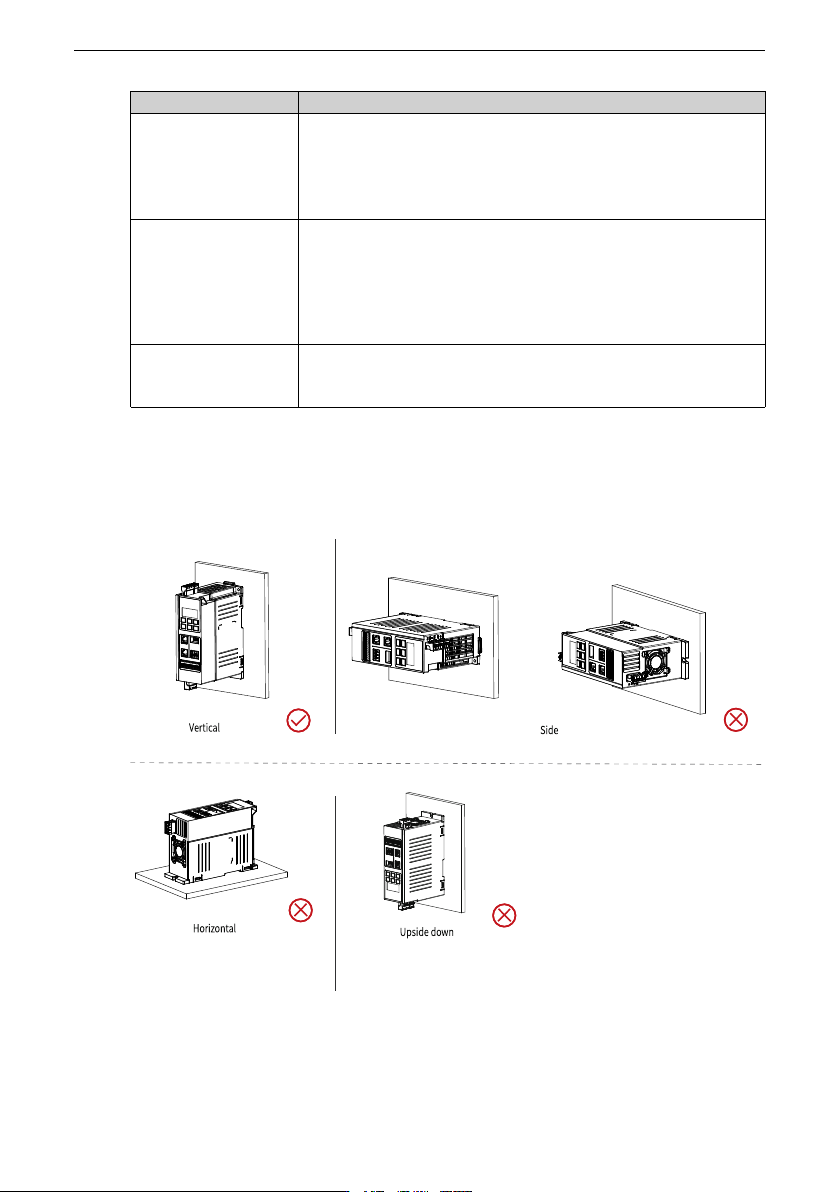

5.1.2 Installation Direction
Install the AC drive upright, as shown in the following figure. Do not lie the AC drive on its
back or side, or install it in the upside-down direction.
Figure 5‑1 Installation direction
