Product Information
‑22‑

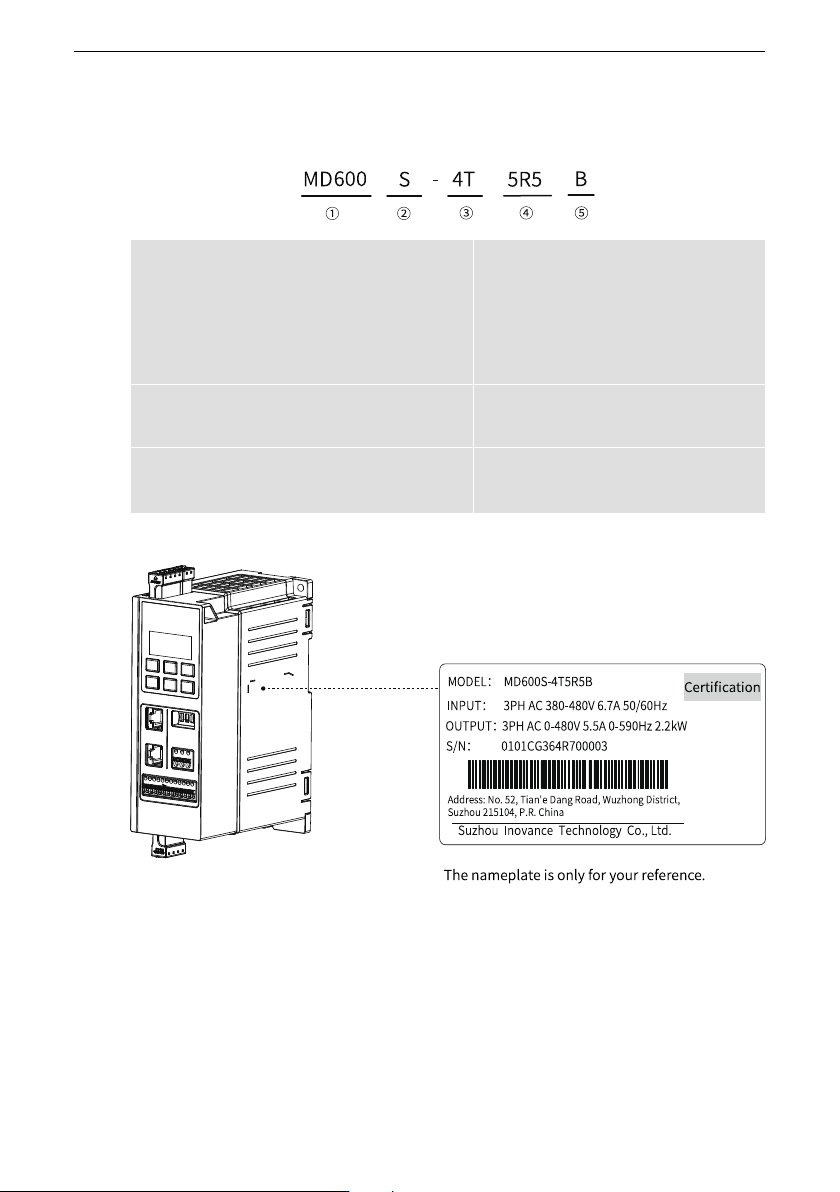

2.2 Nameplate and Model
Model Description
①
Product name
MD600: AC drive series
④
Output current (A)
1R6: 1.6 A
5R5: 5.5 A
...
013: 13 A
Note: R represents the
decimal point ".".
②
Model
S: RS-485 model
A: CAN model
⑤
Braking unit
B: With the braking unit
Blank: N/A
③
Voltage level (V)
2S: Single-phase 200 V to 240 V
4T: Three-phase 380 V to 480 V
-
Nameplate description
Product Information
‑23‑
Description of serial number
①
Internal code
Product material code
④
Month
1: January
2: February
3: March
...
C: December
②
Manufacturer code
4: Suzhou Inovance
⑤
Lot number
00001: First
00002: Second
00003: Third
...
Range: 00001 to 99999
③
Year
R: 2023
S: 2024
Note: I/L/O/Q are skipped.
-
2.3 Product Model List
The following tables list mappings between the product model and structure.
Table 2–1 Relationship between the product model and structure (RS-485 version)
Struc
ture
Three-phase 380 V to 480 V Single-phase 200 V to 240 V
Power (kW)
Product model
Power (kW)
Product model
T1 0.37
MD600S-4T1R6(B)
0.37
MD600S-2S2R8(B)
0.75
MD600S-4T2R3(B)
0.75
MD600S-2S4R6(B)
1.5
MD600S-4T4R8(B)
1.5
MD600S-2S7R5(B)
2.2
MD600S-4T5R5(B)
T2 4
MD600S-4T9R5(B)
2.2
MD600S-2S010(B)
5.5
MD600S‑4T013(B)
Product Information
‑24‑
Table 2–2 Relationship between the product model and structure (CAN version)
Struc
ture
Three-phase 380 V to 480 V Single-phase 200 V to 240 V
Power (kW)
Product model
Power (kW)
Product model
T1 0.37
MD600A-4T1R6(B)
0.37
MD600A-2S2R8(B)
0.75
MD600A-4T2R3(B)
0.75
MD600A-2S4R6(B)
1.5
MD600A-4T4R8(B)
1.5
MD600A-2S7R5(B)
2.2
MD600A-4T5R5(B)
T2 4
MD600A-4T9R5(B)
2.2
MD600A-2S010(B)
5.5
MD600A‑4T013(B)

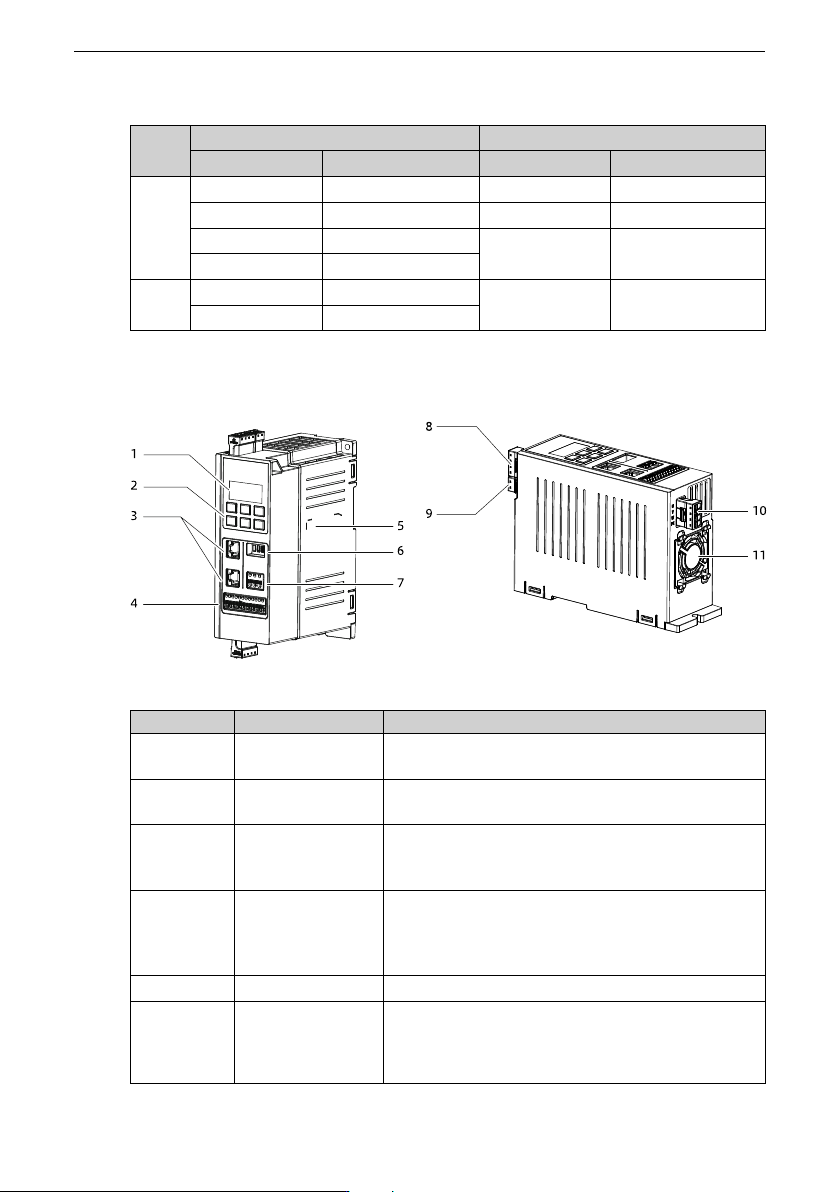

2.4 Components
Figure 2‑2 Components
No. Name
Remarks
1
LED display on the
operating panel
It displays the axis number, status, unit, and data.
2
Keys on the
operating panel
It is used for operations through the operating
panel.
3
Communication
terminal (CN1/
CN2)
-
4
Control circuit
terminal (CN4)
It integrates the Modbus RTU communication,
analog input, analog output, digital input, digital
output, 24 V power supply output, and 10 V power
supply output signals.
5
Product nameplate It displays the product information.
6
DIP switch for
termination
resistor
DIP switch for the Modbus communication
termination resistor in CN1
DIP switch for the CAN communication termination
resistor in CN1 and CN2
