Technical Data
‑93‑
11.2 Selection Instance
Selection flow

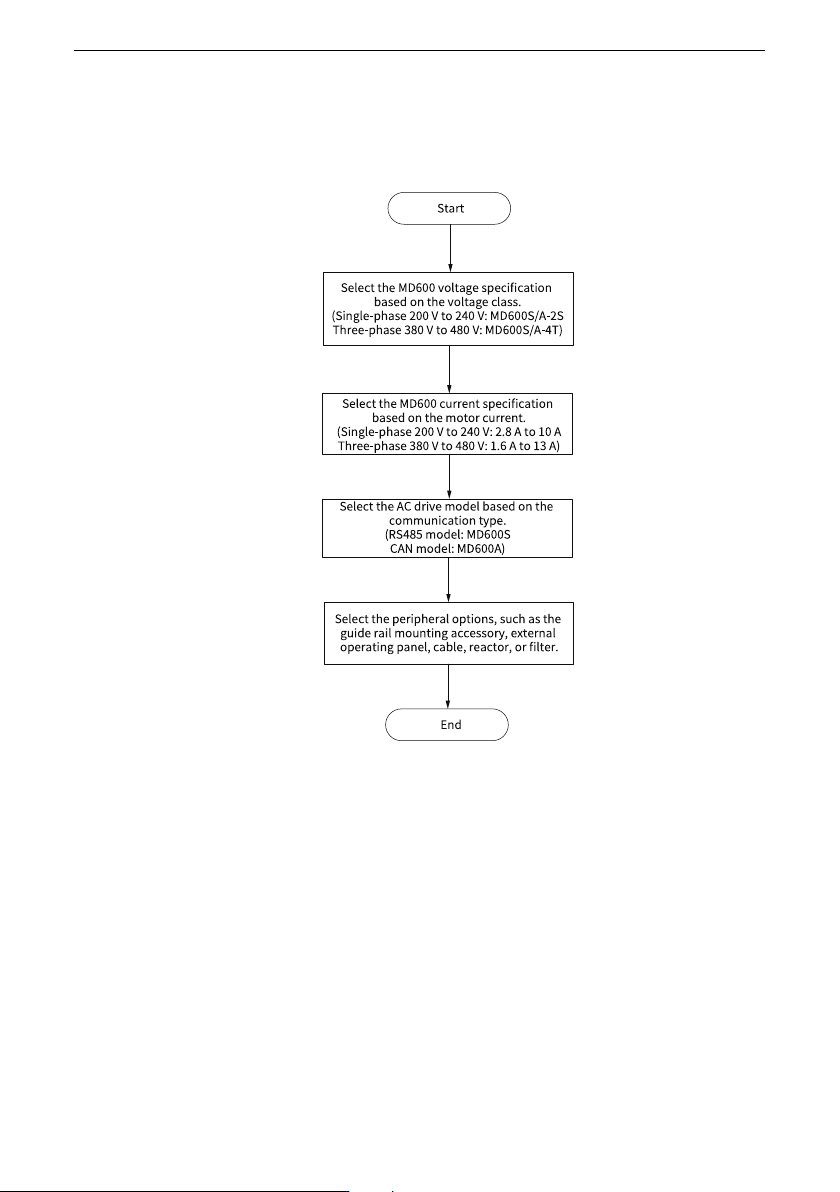

The following figure shows the AC drive selection flow.
Figure 11‑1 Selection flow
Example
The following part takes MD600S-4T1R6 as an example.
1. The voltage of MD600S-4T1R6 is three-phase 380 V to 480 V.
2. The current of the MD600S-4T1R6 is 1.6 A.
3. The MD600S-4T1R6 supports RS485 communication.
4. The peripheral devices of the MD600S-4T1R6 include the AC input reactor MD-ACL-10-
5-4T, output reactor MD-OCL-5-1.44, and EMC filter FN 3287-10-44-C28-R65.
Technical Data
‑94‑
11.3 Electrical Specifications
Note
In the following tables, the rated power of the drive is measured under the following
conditions.
● For single-phase 200 V to 240 V models, the rated power is measured at the
input voltage of 230 VAC.
● For three-phase 380 V to 480 V models, the rated power of the drive is measured
at an input voltage of 400 VAC.
Single-phase 200 V to 240 V
Table 11–2 Electrical specifications for T1 to T2 models (single-phase 200 V to 240 V)
Item
Specification
Model: MD600S/A-2Sxxxxx(B) 2R8 4R6 7R5B
010 B
Structure T1 T2
Input Rated input current (A) 6.2 10.2 16.6 22.2
Rated voltage/Rated
frequency
Single-phase 200 VAC to 240 VAC, 50/60 Hz
Allowable voltage
fluctuation range
-15% to +10%, or 170 VAC to 264 VAC
Allowable frequency
fluctuation range
±5%; actual allowable range: 47.5 Hz to 63 Hz
Power capacity (kVA) 1.5 2.4 4 5.3
Output Power (kW) 0.37 0.75 1.5 2.2
Rated output current (A) 2.8 4.6 7.5 10
Output voltage Three-phase 0 V to input voltage
Maximum output frequency 599 Hz
Carrier frequency 0.5 kHz to 16.0 kHz (automatically adjusted according to the load)
Overload capacity overload: 60s at 150% of the rated current continuously
Thermal
design
Thermal Loss (W) 22 36 55 77
Exhaust flow (CFM) - 12 12 19
Technical Data
‑95‑
Three-phase 380 V to 480 V
Table 11–3 Electrical specifications for T1 to T2 models (three-phase 380 V to 480 V)
Item
Specification
Model: MD600S/A-4Txxxxx(B)
1R6 2R3 4R8 5R5B 9R5B
013B
Structure T1 T2
Input Rated input current (A) 1.9 2.8 5.9 6.7 11.6 15.8
Rated voltage/Rated
frequency
Three-phase 380 VAC to 480 VAC, 50/60 Hz
Allowable voltage
fluctuation range
–15% to +10%; allowed voltage range: 323 VAC to 528 VAC
Allowable frequency
fluctuation range
±5%; actual allowable range: 47.5 Hz to 63 Hz
Power capacity (kVA) 1.6 2.3 4.9 5.6 9.6 13.1
Output Power (kW) 0.37 0.75 1.5 2.2 4 5.5
Rated output current (A) 1.6 2.3 4.8 5.5 9.5 13
Output voltage Three-phase 0 V to input voltage
Maximum output frequency
599 Hz
Carrier frequency 0.5 kHz to 16.0 kHz (automatically adjusted according to the load)
Overload capacity overload: 60s at 150% of the rated current continuously
Thermal
design
Thermal Loss (W) 25 31 57 65 100 149
Exhaust flow (CFM) ‑ ‑ 12 12 19 19
