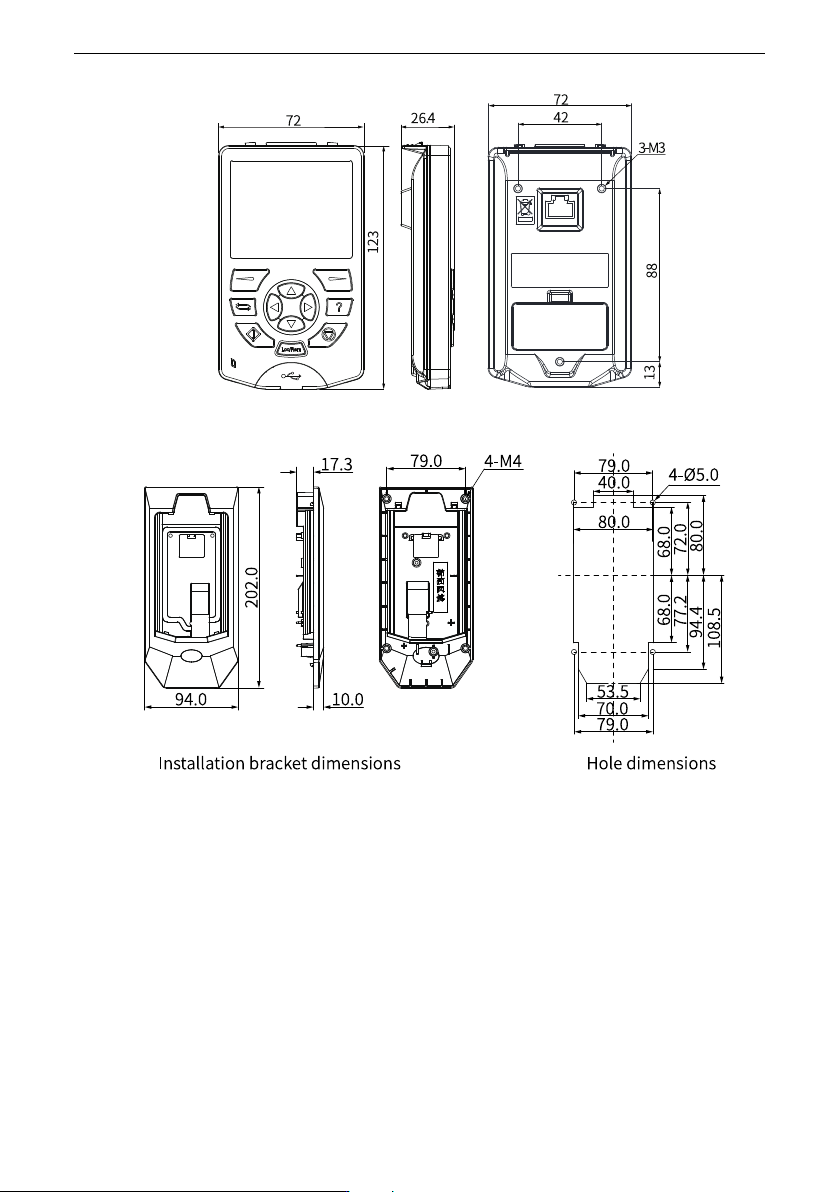

Option ‑105‑ Figure 12‑1 Dimensions (unit: mm) of the SOP-20-810 Figure 12‑2 Mounting bracket dimensions and hole sizes (mm) of the SOP-20-810
Option
‑104‑
12.2 Operating panel
Model
Description
Appearance
SOP-20-810
It is an optional LCD operating
panel that supports parameter
copy, download, and
modification and supports
English and Chinese.
For dimensions, see
"Figure 12–1
Dimensions (unit: mm) of the
SOP-20-810
"
on page 105
and
"Figure 12–2 Mounting bracket
dimensions and hole sizes (mm)
of the SOP-20-810
"
on page 105
.
MD-BP-M
It is an optional LED operating
panel that supports parameter
setting, parameter modification,
and status monitoring. It can
display digits and English letters
for easy operation.

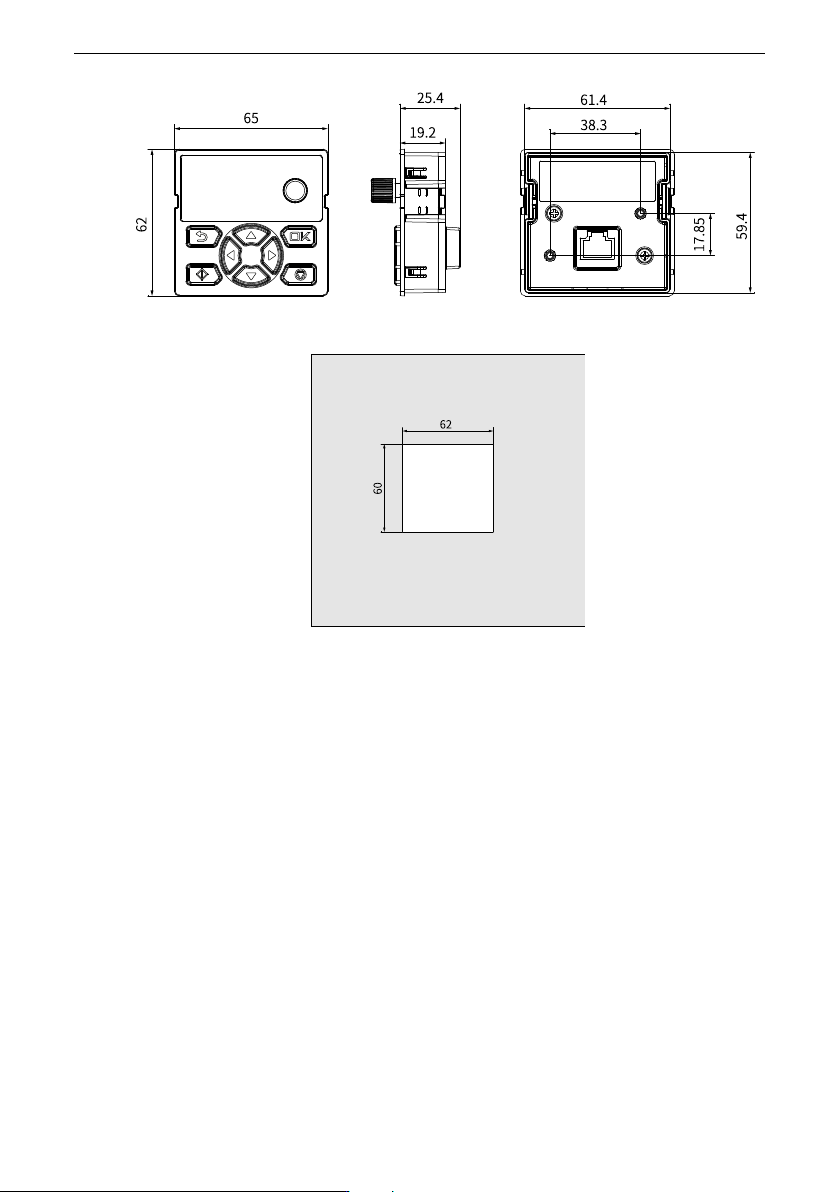

For dimensions, see
"Figure 12–3
Dimensions (unit: mm) of the
MD-BP-M
"
on page 106
,
"Figure
12–4 Dimensions (unit: mm) of
the cabinet door opening for
mounting the MD-BP-M through
the snap-fit joint
"
on page 106
,
and
"Figure 12–5 Dimensions
(unit: mm) of the cabinet door
opening for mounting the MD-
BP-M with screws
"
on page 107
.
