Option
‑128‑
To ensure that I/O signal cables are not affected by peripheral interference and noise,
use shielded cables as signal cables. Install the signal shield bracket at each end of the
shield to bond the shield to the drive 360 degrees. Use separate shielded cables for
different analog signals. It is recommended to use shielded twisted pair (STP) cables for
digital signals.

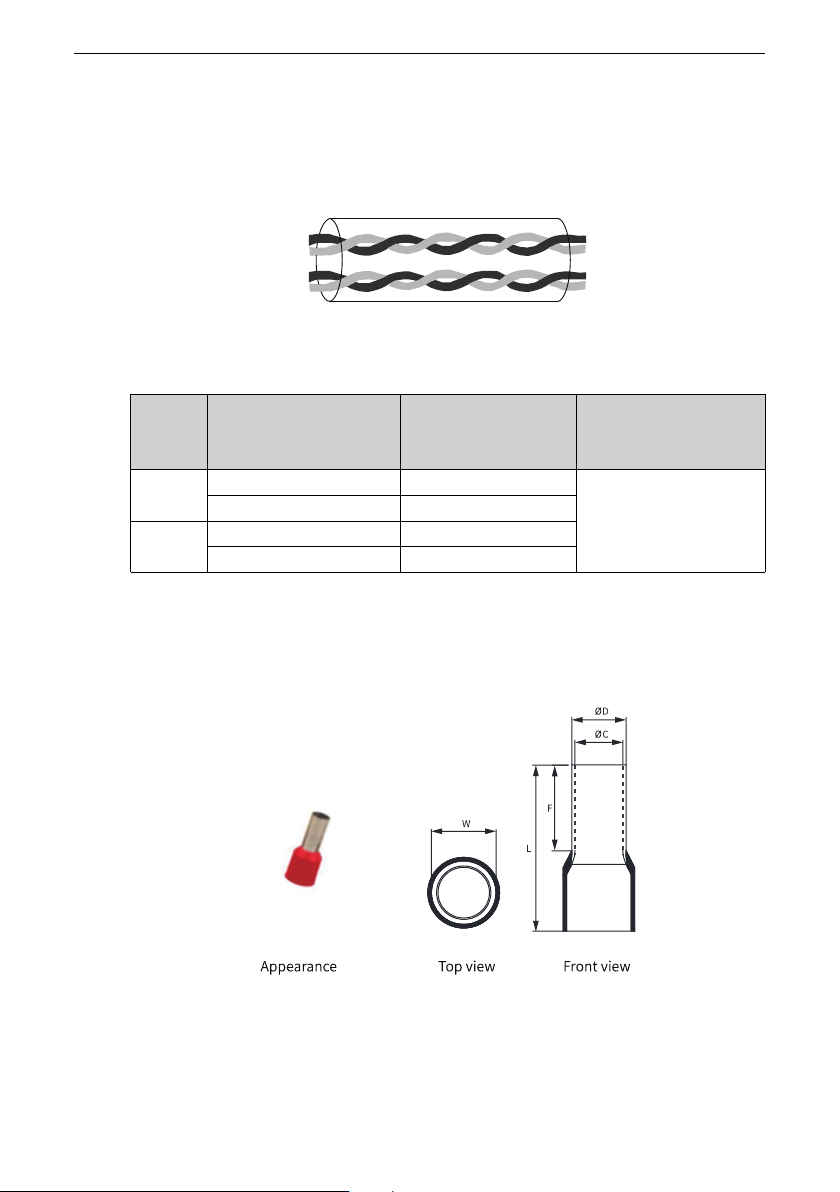

Figure 12‑17 Shielded twisted pair cables
Table 12–22 Specifications of the control circuit cable
Structure Type
Recommended IEC
Cable Specification
(mm
2
)
Recommended cable lug
specifications
T1
Control signal terminal
0.5–1.0 IEC:
● 0.5 mm
2
(E0510)
● 0.75 mm
2
(E7510)
● 1 mm
2
(E1010)
Relay terminal
0.5–1.0
T2
Control signal terminal
0.5–1.0
Relay terminal
0.5–1.0
12.9.3Terminal
It is recommended to use the terminals produced by Zhejiang KISE Terminal Co., Ltd., that
is, the tube pre-insulated terminal (TG-JT type).
Figure 12‑18 Appearance and dimensions of the tube-type pre-insulated terminal (TG-JT)
Option
‑129‑
Table 12–23 Specifications and dimensions of the tube-type pre-insulated terminal (TG-JT)
Cross-sectional
area
Model Dimension (mm) Insulation
sheath color
(1) For Germany
(2) For France
Crimping tool
F L W DØ CØ
A.W.G.22
0.5 mm
2
E0510 10.0 16.0 2.7 1.3 1.0 (1) Orange
(2) White
OPT AN-04WF
A.W.G.20
0.75 mm
2
E7510 10.0 16.0 2.8 1.5 1.2 (1) White
(2) Blue
OPT AN-04WF
A.W.G.18
1.0 mm
2
E1010 10.0 16.5 2.9 1.7 1.4 (1) Yellow
(2) Red
OPT AN-04WF
A.W.G.16
1.5 mm
2
E1510 10.0 16.5 3.5 2.0 1.7 (1) Red
(2) Black
OPT AN-04WF
E1512 12.0 18.5 3.5 2.0 1.7 (1) Red
(2) Black
OPT AN-04WF
14AWG
2.5 mm
2
E2510 10.0 17.5 4.1 2.6 2.3 (1) Blue
(2) Gray
OPT AN-04WF
E2512 12.0 19.5 4.1 2.6 2.3 (1) Blue
(2) Gray
OPT AN-04WF
12AWG
4.0 mm
2
E4012 12.0 19.5 4.5 3.15 2.8 (1) Gray
(2) Orange
OPT AN-10WF
Requirements for Certification and Standards Compliance
‑130‑
13 Requirements for Certification and Standards
Compliance
13.1 Compliance List
The following table lists the certifications, directives, and standards that the product may
comply with. For details about the acquired certificates, see the certification marks on the
product nameplate.
Certification Directive Standard
CE
EMC Directive 2014/30/EU EN IEC 61800-3
LVD Directive 2014/35/EU
EN 61800-5-1
RoHS directive
2011/65/EU /
13.2 CE Certification
13.2.1Precautions for Compliance with EU Standards
Figure 13‑1 CE mark
● The "CE mark" indicates compliance with the Low Voltage Directive (LVD),
Electromagnetic Compatibility (EMC), and Restriction of Hazardous Substances (RoHS)
directives for commercial trades (production, import, and sales) in the EU.
● The CE mark is mandatory for engaging in commercial business (production,
importation, and distribution) in the EU.
● The drive complies with LVD, EMC, and RoHS directives and carries the CE mark.
● Machines and devices integrated with this drive must also comply with CE
requirements for distribution in EU.
● The integrator who integrates this drive into other products and attaches CE mark to
the final assembly has the responsibility of ensuring compliance with CE certification.
13.2.2Requirements for Compliance with EMC Directive
● This drive, which is applicable to the First environment and Second environment,
complies with EMC Directive 2014/30/EU and standard EN IEC 61800-3.
