3.5.4.7 MultiStar in mixed mode with complete rotation
The MultiStar processes small to medium sized components in this mode.
3

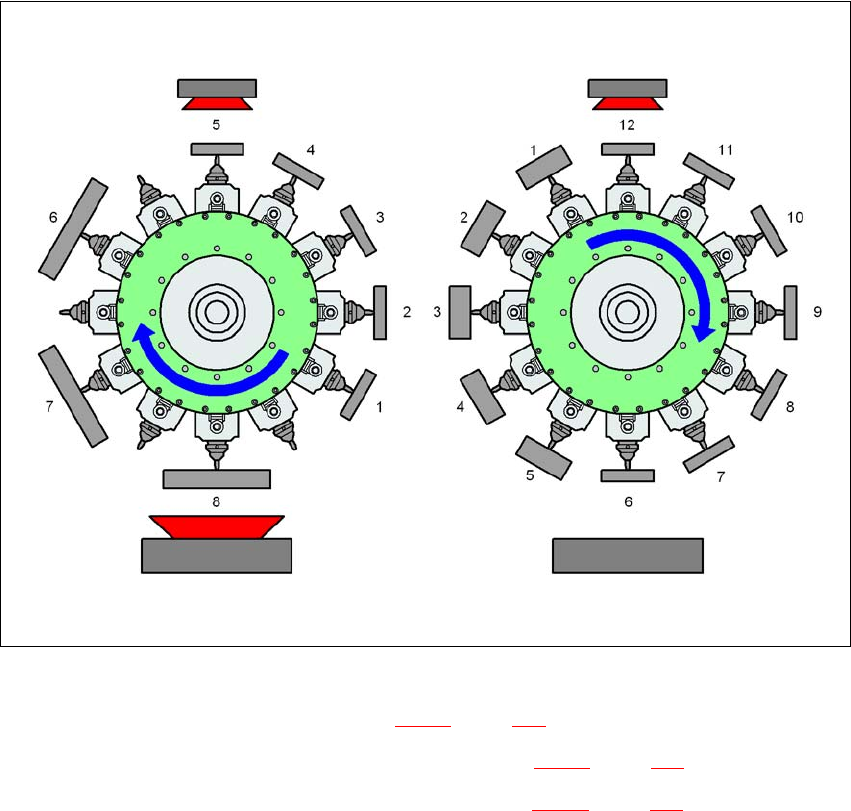

Fig. 3.5 - 7 MultiStar - mixed mode
K_BE Small component (see table 3.5 - 1, page 115)
M_BE_1 Medium sized component, type 1 (see table 3.5 - 1
, page 115)
M_BE_2 Medium sized component, type 2 (see table 3.5 - 1
, page 115)
Type 30 Component camera, type 30
Type 33 Stationary component camera, type 33
1 ... 8 Order of components taken up
1 ... 12 Order of components taken up
3
Neighboring segments of the CPP head are not able to take up components of type M_BE_2 if the
diagonal length of the medium sized component, type 2 (M_BE_2) is longer than 39.8 mm.
Type 30 Type 30
Type 33 Type 33
K_BE
M_BE_2
M_BE_1
K_BE
User manual SIPLACE SX1/SX2 3 Technical data and assemblies
From software version SC 706.1 SP1 Version 10/2014 3.5 Placement head
119

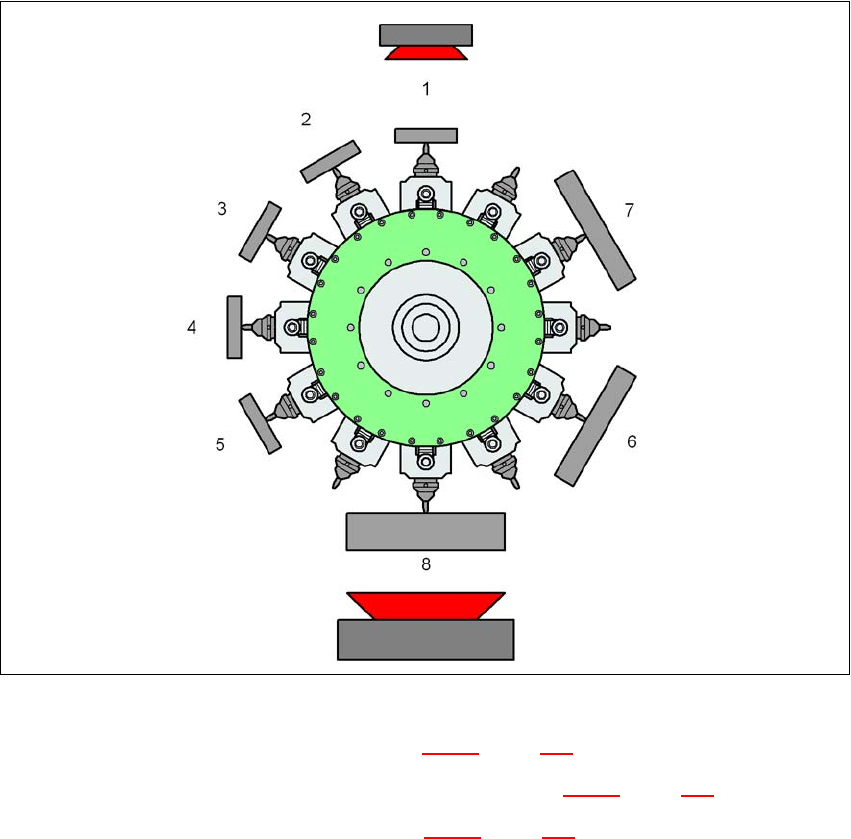

3.5.4.8 MultiStar in advanced Pick&Place mode with limited rotation
The MultiStar can place the entire component range from 03015 to 50 mm x 40 mm in this mode.
The large components are picked up last, optically centered and then placed as first components.
3
Fig. 3.5 - 8 MultiStar - mixed mode
K_BE Small component (see table 3.5 - 1, page 115)
M_BE_2 Medium sized component, type 2 (see table 3.5 - 1
, page 115)
G_BE Large component (see table 3.5 - 1
, page 115)
Type 30 Component camera, type 30
Type 33 Stationary component camera, type 33
1 ... 8 Order of components taken up
3
Neighboring segments of the CPP head are not able to take up components of types M_BE_2 and
G_BE if the diagonal length of these components is longer than 39.8 mm.
Type 30
K_BE
G_BE
Type 33
M_BE_2
3 Technical data and assemblies User manual SIPLACE SX1/SX2
3.5 Placement head From software version SC 706.1 SP1 Version 10/2014
120

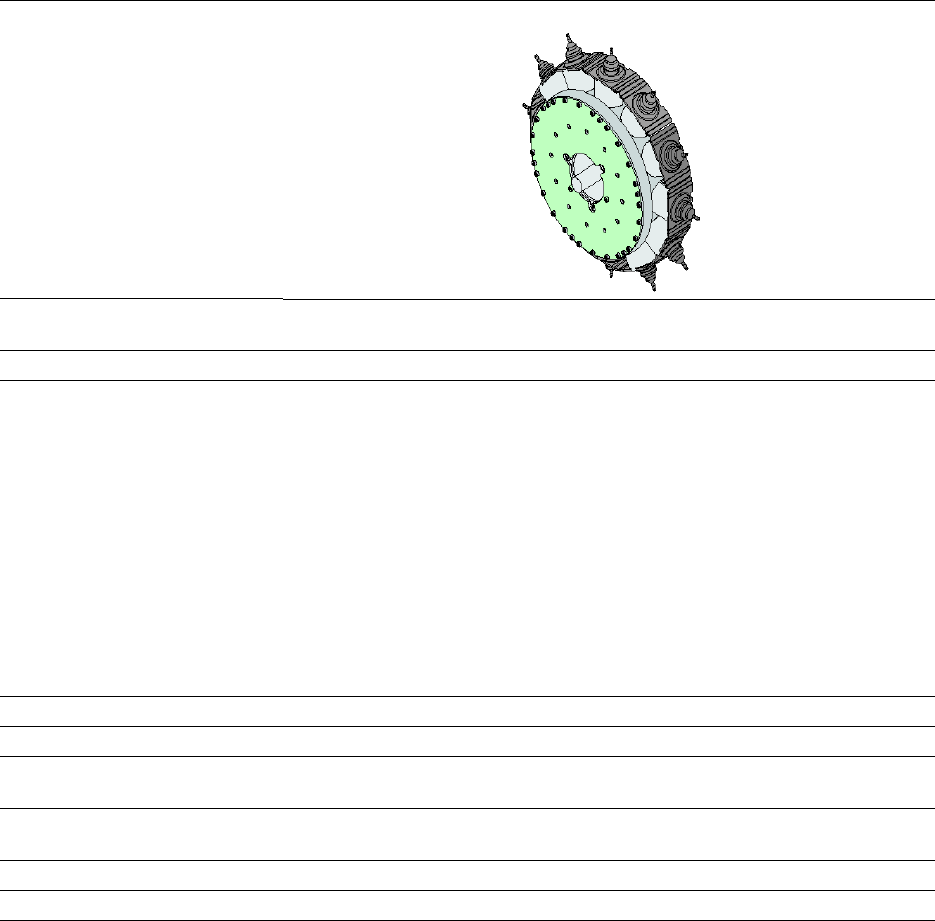

3.5.4.9 Technical data for SIPLACE MultiStar (CPP)
3
SIPLACE MultiStar (CPP)
with component camera type 30 with component camera type 33
(stationary camera)
Component range
*a
01005 mm to 27 mm x 27 mm 0402 to 50 mm x 40 mm
*b
Component spec.
Max height
*c
Max. height
*d
Min. lead pitch
Min. lead width
Min. ball pitch
Min. ball diameter
Min. dimensions
Max. dimensions
Max. weight
6.0 mm
8.5 mm
0.3 mm
0.15 mm
0.25 mm
*e
0.35 mm
*f
0.14 mm
e
0.20 mm
f
0.4mm x 0.2mm
27 mm x 27 mm
4 g
11.5 mm
0.3 mm
0.15 mm
0.35 mm
0.2 mm
1.0 mm x 0.5 mm
50 mm x 40 mm
b
8 g
Programmable set-down force 1.0 - 10 N 1.0 - 10 N
Nozzle types 20xx, 28xx 20xx, 28xx
X/Y accuracy
*g
± 41 µm/3σ
± 55 µm/4σ
± 34 µm/3σ
± 45 µm/4σ
Angular accuracy ± 0.4° / 3σ
*h
, ± 0.5° / 3σ
*i
± 0.5° / 4σ
h
, ± 0.7° / 4σ
i
± 0.2° / 3σ
± 0.3° / 4σ
Illumination level 5 6
Possible illumination level settings 256
5
256
6
*)a Please note that the placeable component range is also affected by the pad geometry, the customer-specific standards,
the component packaging tolerances and the component tolerances.
*)b A diagonal of 69 mm is possible during multiple measurements (e.g. 64 mm x 10 mm).
*)c CPP head: in low installation position (stationary component camera not possible).
*)d CPP head: in high installation position
*)e For components < 18 mm x 18 mm
*)f For components ≥ 18 mm x18 mm
*)g The SIPLACE benchmark value is measured during the machine acceptance tests. It corresponds to the conditions set
out in the SIPLACE scope of service and supply.
*)h Component dimensions between 6 mm x 6 mm and 27 mm x 27 mm.
*)i Component dimensions smaller than 6 mm x 6 mm.
