4.2.3.5 Connecting the power supply cable
4

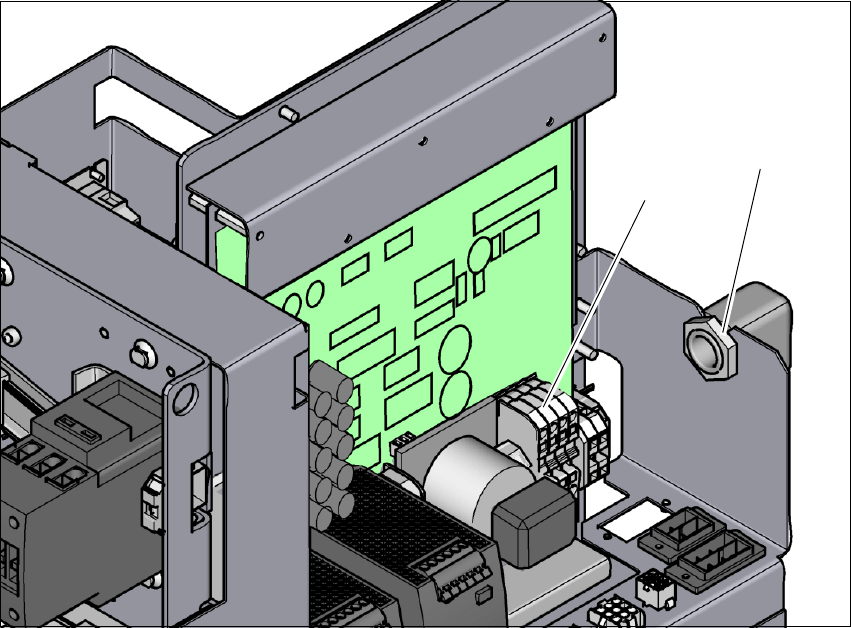

Fig. 4.2 - 5 Terminal panel for connecting the power cable
(1) Terminal panel (X99)
(2) Cable fixtures
Crimp a ferrule onto each end of the wire.
Loosen the nuts on the cable fixture (2).
Run the mains power cable through the cable fixture (2) to the terminal panel X99 (1).
Fasten the cable to the terminal panel X99 (item 1).
(L1): three-phase 4
(L2): three-phase 4
(L3): three-phase 4
(N): neutral conductor 4
(PE): PE conductor 4
Make sure that the bending radius is adequate. The wires must not be kinked.
Manually tighten the cable fixture.
(1)
(2)
User manual SIPLACE SX1/SX2 4 Setting up and commissioning
From software version SC 706.1 SP1 Version 10/2014 4.2 Infrastructure at the installation location
197
4.2.3.6 Checking connections to the primary side of the three-phase transformer T1
The primary side of the three-phase transformer must be configured for the relevant supply volt-
age.
Check the terminal panel (1) to make sure that the primary end of the three-phase transformer
(cable in item 2 ) is correctly connected for the relevant supply voltage.
4

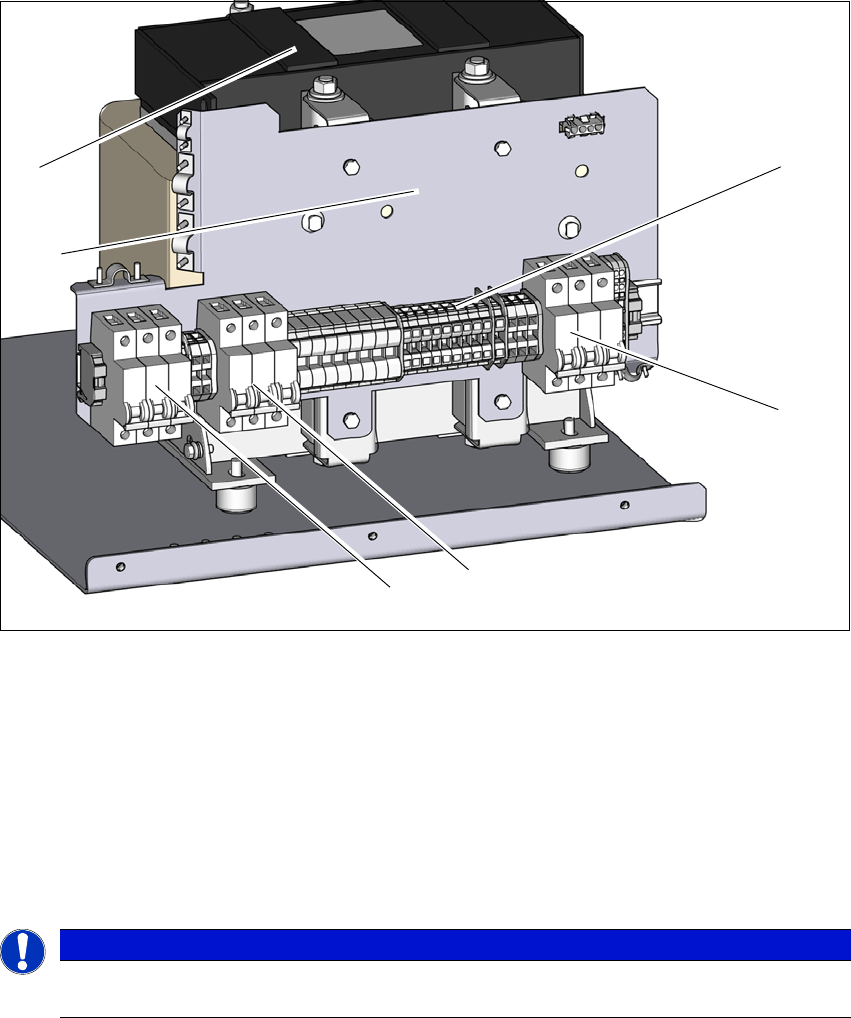

Fig. 4.2 - 6 Terminal panel for the primary side of the three-phase transformer T1
(1) Terminal panel with primary connections for the three-phase transformer T1
(2) Fuse F5; 16A , characteristic C; for AC/DC converter and vacuum pump option
(3) Fuse F4; 25A , characteristic C; for cutter and PCB conveyor
(4) Fuse F3; 25A , characteristic C; for gantry axes (250 V-) and head axes (150 V-)
(5) Installation point for the electrics of the vacuum pump option
(6) Three-phase transformer
4
PLEASE NOTE
The supply networks for North Japan (3 x 200 V~) and for the USA (
3 x 208 V~) are connected to the terminals for 3 x 204 V~.
(1)
(2)
(3)
(4)
(6)
(5)
4 Setting up and commissioning User manual SIPLACE SX1/SX2
4.2 Infrastructure at the installation location From software version SC 706.1 SP1 Version 10/2014
198
The following overview shows the connection options for the primary voltages of the three-phase
transformer.
4
Terminal
panel
Voltage
1U1 415 VAC
1V1 415 VAC
1W1 415 VAC
3U3 400 VAC
3V3 400 VAC
3W3 400 VAC
4U4 380 VAC
4V4 380 VAC
4W4 380 VAC
5U5 230 VAC
5V5 230 VAC
5W5 230 VAC
6U6 220 VAC
6V6 220 VAC
6W6 220 VAC
7U7 204 VAC
7V7 204 VAC
7W7 204 VAC
