User manual SIPLACE SX1/SX2 3 Technical data and assemblies
From software version SC 706.1 SP1 Version 10/2014 3.9 X feeder modules for SIPLACE SX1/SX2
167
3

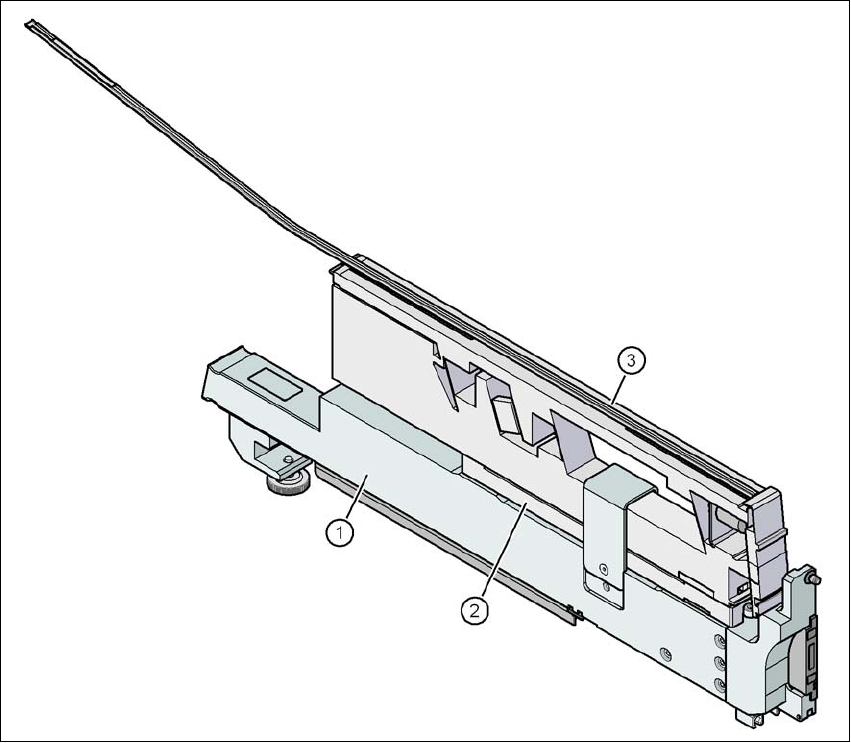

Fig. 3.9 - 18 Feeder module adapter for the X-Series with linear vibratory feeder
(1) Adapter for X-Series feeder modules (item no. 00141305-xx)
(2) Adapter plate 16.5 mm (in the deliverables)
(3) Linear vibratory feeder, type 3 (item no. 00142031-xx)
Width 34.4 mm
Tracks per feeder module 1, 2 or 3 3
Occupied feeder module locations 3 3
Stock of components Up to 150 per steel stick magazine, 3
depending on the component length 3
Specific data for stick magazines 9.5 mm wide / x 3 3
15 mm wide / x 2 3
> 15 mm wide / x 1 3
30 mm wide / 1 x 3
Vibrating time: variable setting with SIPLACE Pro from 400 to
over 1000 msec 3
3 Technical data and assemblies User manual SIPLACE SX1/SX2
3.9 X feeder modules for SIPLACE SX1/SX2 From software version SC 706.1 SP1 Version 10/2014
168
3.9.5.3 Feeder module adapter for the X-Series with reject conveyor
3
Fig. 3.9 - 19 Feeder module adapter for the X-Series with reject conveyor
(1) Adapter for X-Series feeder modules (item no. 00141305-xx)
(2) Adapter plate for reject conveyor (item no. 00141308-xx)
(3) Reject conveyor (reject module)
User manual SIPLACE SX1/SX2 3 Technical data and assemblies
From software version SC 706.1 SP1 Version 10/2014 3.9 X feeder modules for SIPLACE SX1/SX2
169
3.9.6 Energy and data interface (EDIF) for X feeder modules
Item no. 00141247-xx Energy and data interface for X feeder modules
3
Fig. 3.9 - 20 Energy and data interface for X feeder modules
(1) Unlocking button for locking latch
(2) Operator panel
(3) Data cable
(4) Power supply cable
(5) Electronics housing
(6) Fold-out feet
(7) Omega profile for guiding feeder modules
(8) Locking latch
(9) Locating hole for front centering pin of feeder module
(10) Base plate
(11) Tape reel holder
