4 Setting up and commissioning Us er ma nual SIPLACE SX1/SX2 4.5 Adjusting the empty tape duct to the component height From software version SC 706.1 SP1 Version 10/2014 220 4.5 Adjusting the empty t ape duct to the comp…

User manual SIPLACE SX1/SX2 4 Setting up and commissioning

From software version SC 706.1 SP1 Version 10/2014 4.4 Adjusting the component trolley to the PCB conveyor height

219

4.4.1 Warning instructions

4.4.2 Tools and equipment

You will need the following tools and equipment to adjust the height of the component trolley:

– Mounting device (item no. 03015976-xx)

– Lifting device for raising the component trolley table, carrying capacity at least 80 kg

4.4.3 Changing the component trolley height

 Fix the fit-up aid to the changeover table with the two M8 x 50 hexagon socket head screws.

There are two different holes available for the changeover table 60 and the changeover table

30.

 Hook the leverage device into the eyelet.

 Loosen the fastening screws and lift the changeover table into the required position.

 Fit and tighten the fastening screws.

WARNING

Adjustment of component trolley height by certified persons!

Only ASM engineers or qualified personnel are permitted to adjust the component trolley

height.

 Always follow the applicable accident prevention regulations.

 Remove all the feeder modules from the changeover table, if you want to adjust the

height of the changeover table.

WARNING

Risk of damage!

Lifting and lowering the changeover table can lead to deformation of it.

 Remove all the feeder modules from the changeover table.

 Fit the mounting device to the changeover table in order to adjust the height.

4 Setting up and commissioning User manual SIPLACE SX1/SX2

4.5 Adjusting the empty tape duct to the component height From software version SC 706.1 SP1 Version 10/2014

220

4.5 Adjusting the empty tape duct to the component

height

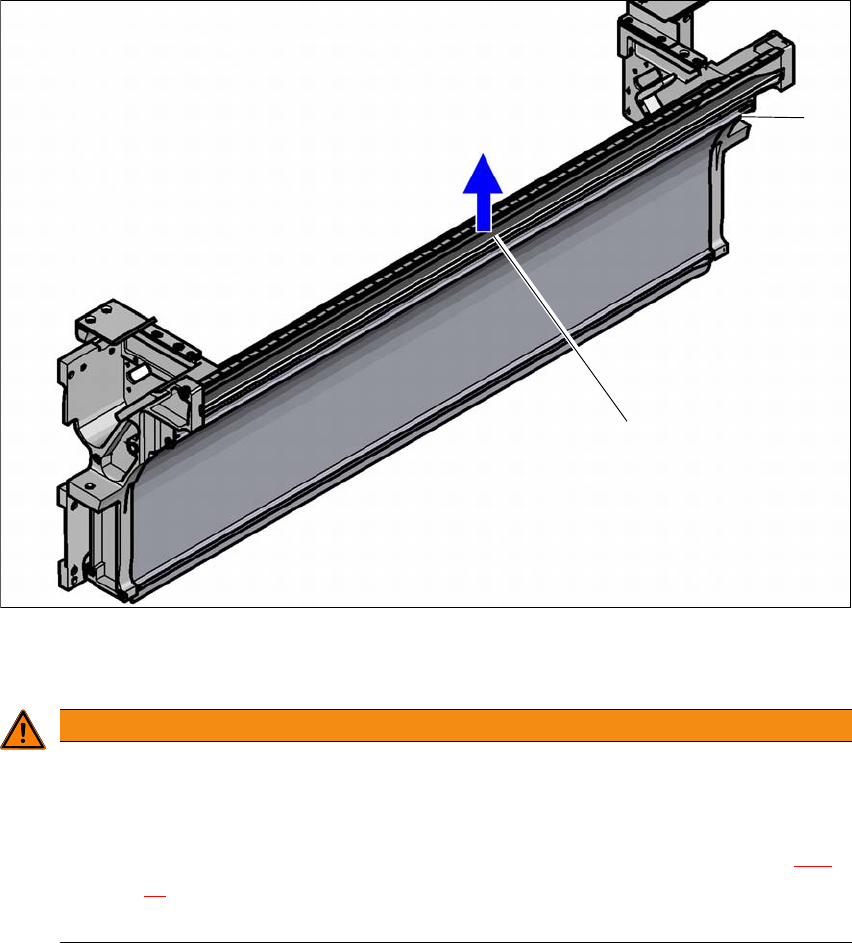

If feeder modules which use tapes with a pocket height of > 12 mm are used, remove the sepa-

rating plate (1).

(1) separating plate for tapes > 12 mm, removable

(2) Fastening screws

 Loosen the fastening screws.

 Pull out the separating plate.

WARNING

Removing the dividing plate!

 Switch the machine off at the main switch to remove the dividing plate.

 Disconnect the machine from the power and compressed air supply.

 Lock the machine to prevent unauthorized reactivation, as described in section 2.11,

page 87

 Wait until the operating pressure for the tape cutter has dropped to 0 MPa.

(1)

(2)

User manual SIPLACE SX1/SX2 4 Setting up and commissioning

From software version SC 706.1 SP1 Version 10/2014 4.6 Commissioning the machine

221

4.6 Commissioning the machine

4.6.1 Commissioning the machine at the customer's premises

 Check all modules for correct seating.

 Wipe off the linear guide rails with a lint-free cloth before removing the shipping braces for the

X/Y axis. Do not use any solvents (see section 4.3.11

, page 217).

 Switch on the machine and perform a reference run.

 Copy the placement program onto the computer and test it.

 Check the machine zero point after a period of warming up of 3 - 4 h.

 Get the customer's operating personnel to equip the feeder modules according to the cus-

tomer's placement program.

 Instruct them in handling the feeder modules using the JobGuide.

 Check all customer-specific installed options (in particular software) for good functioning and

order any necessary spare parts using the order form or by fax.

 After installing the machine, perform Y mapping.

4.6.2 Instructing the customer's personnel

 Explain all customer-specific installed options, in particular software / software compatibility.

 Explain programming of the program editors on the line computer / SIPLACE Pro.

 Instruct the operators and line engineers in using the station software.

 Explain about password protection.

 Instruct the customer's personnel according to the user manual and the preventive mainte-

nance.

4.6.3 A test run or starting production

 Test the line using the test PCB or a PCB provided by the customer.

 Record the customer product and performance data, prepare the data and document the data

in the installation report.

 Secure the data and give the customer security copies.
