5 Working with the machine User manual SIPLACE SX1/SX2 5.5 The user interface From software version SC 706.1 SP1 Version 10/2014 242 5.5.5 Settings The "Settings" view allows you to change the vari ous user set…
User manual SIPLACE SX1/SX2 5 Working with the machine
From software version SC 706.1 SP1 Version 10/2014 5.5 The user interface
241
The following view will open:
5

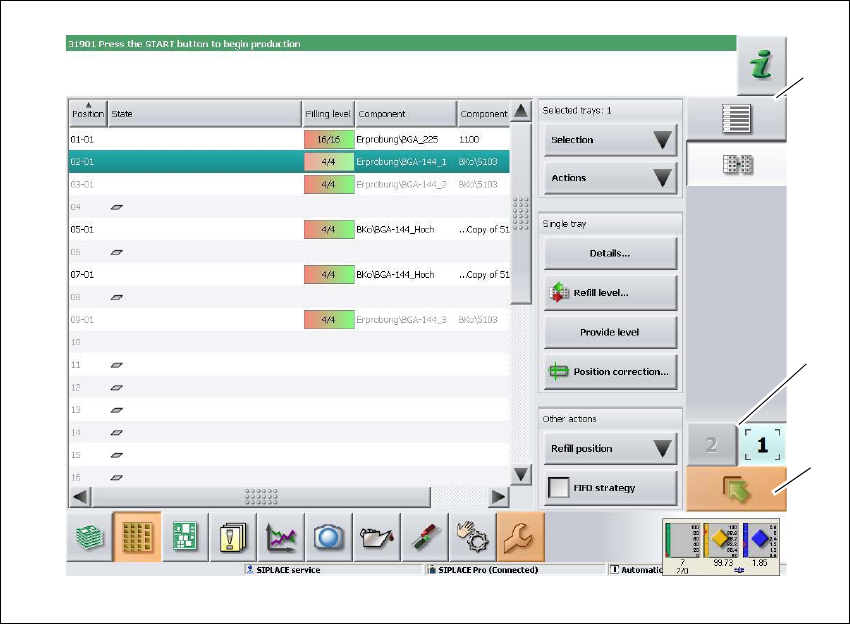

Fig. 5.5 - 4 User interface in the "WPC" view (example of SIPLACE SX shown)
Legend
(1) Vertical toolbar "WPC"
(2) "Up one level" button, to return to previous view (here: "Feeder modules, components and
nozzles" view, see previous diagram)
(3) Buttons for changing directly to a different gantry
(1)
(2)
(3)
5 Working with the machine User manual SIPLACE SX1/SX2
5.5 The user interface From software version SC 706.1 SP1 Version 10/2014
242
5.5.5 Settings
The "Settings" view allows you to change the various user settings, software options and machine
options.
Click on "Settings" in the toolbar .
The right-hand side shows an additional toolbar. The following table briefly describes the icons
and settings.
Icon Settings Description
Machine settings Only for "Advanced production", "Service customer" or "Service
SIPLACE".
Allows you to set the operating mode and options (e.g. running
options).
Allows you to shut down the machine
Allows you to change over to the operating system.
User settings Allows you to set the operator level (see section 5.3.3
, page 231).
Allows you to set the language. As a default, English or German
can be selected. A language CD is provided for installation of other
languages.
Further options can be set from the "Advanced production" operator
level.
Machine options No options can be changed in the "Production" level.
Configuration of machine options.
Software options Only for "Advanced production", "Service customer" or "Service
SIPLACE".
Allows you to activate various test functions.
Overview of con-
nected external
systems
Shows all connected external systems (e.g. OIS, SetupCenter).
Shows the connection status and the memory used or deletes the
connected systems.
User manual SIPLACE SX1/SX2 5 Working with the machine
From software version SC 706.1 SP1 Version 10/2014 5.6 Alert information and online help
243
5.5.6 Application-oriented operation via color-coding markings
Icons, buttons and views can be highlighted in color. These color-coded highlights give you a clear
overview of when operator action is required or when warnings have been issued.
The station software uses the following color coded highlights:
5
5.6 Alert information and online help
If alerts occur during placement machine operations, the alert message in the status field of the
user interface will be shown in red. The icon for alert information will be active.
The button highlighted in red in the toolbar indicates that operator action is required.
Color State Meaning
Red Alert Operator action required.
Only in the view "Feeder modules, components and nozzles".
Orange Warning Operator notification is present.
Immediate operator action is not required.
Only in the view "Feeder modules, components and nozzles".
Green In progress Icon or button has machine under control and state is OK.
Only available in the views "Production", "Feeder Module,
Components and Nozzles", "Board", "Check Sensors and
Functions" and "Service".
Flashes green Waiting for board Replaces the "Busy" state if the machine is ready in production
operations but unable to process because there is no board
present.
Insert a board.
Only in the "Production" view.
