5 Working with the machine User manual SIPLACE SX1/SX2 5.10 Setting up the feeder modules From software version SC 706.1 SP1 Version 10/2014 266 5 Fig. 5.10 - 5 Pickup window on the tape feeder module (1) T ape support, …
User manual SIPLACE SX1/SX2 5 Working with the machine
From software version SC 706.1 SP1 Version 10/2014 5.10 Setting up the feeder modules
265
5.10.4.3 Inserting the tape into the X feeder module
5

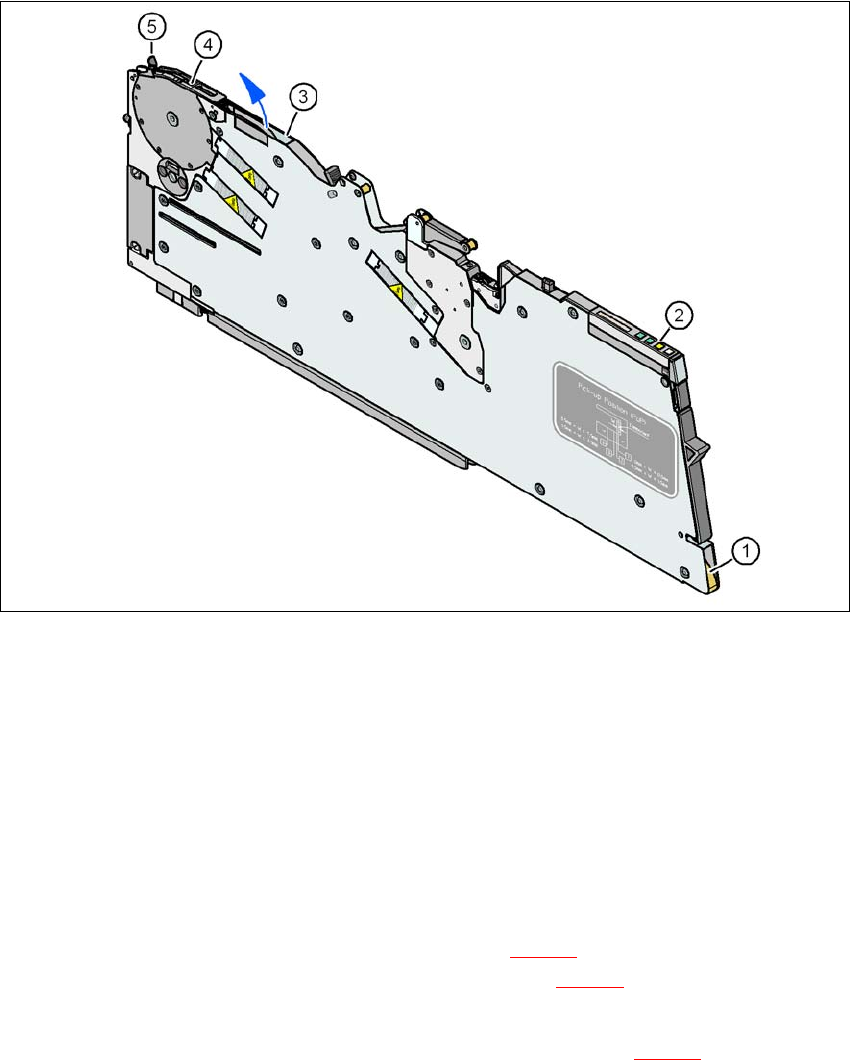

Fig. 5.10 - 4 Inserting the component tape
(1) Entry to the tape guide channel
(2) Operator panel
(3) Tape guide channel outlet
(4) Pickup window
(5) Lever for raising the pickup window
5
Hold the component tape so that the transport holes are on the left-hand side viewed in the
direction of travel.
Push the component tape into the entry (item 1 in fig. 5.10 - 4) to the tape guide channel and
further until it emerges from the exit opening (item 3 in fig. 5.10 - 4
).
Pull the component tape up and out, and fold the cover foil back against the top of the tape.
Guide the start of the tape beneath the pickup window (item 2 in fig. 5.10 - 5) and further until
the component tape is touching the sprocket wheel.
5 Working with the machine User manual SIPLACE SX1/SX2
5.10 Setting up the feeder modules From software version SC 706.1 SP1 Version 10/2014
266
5

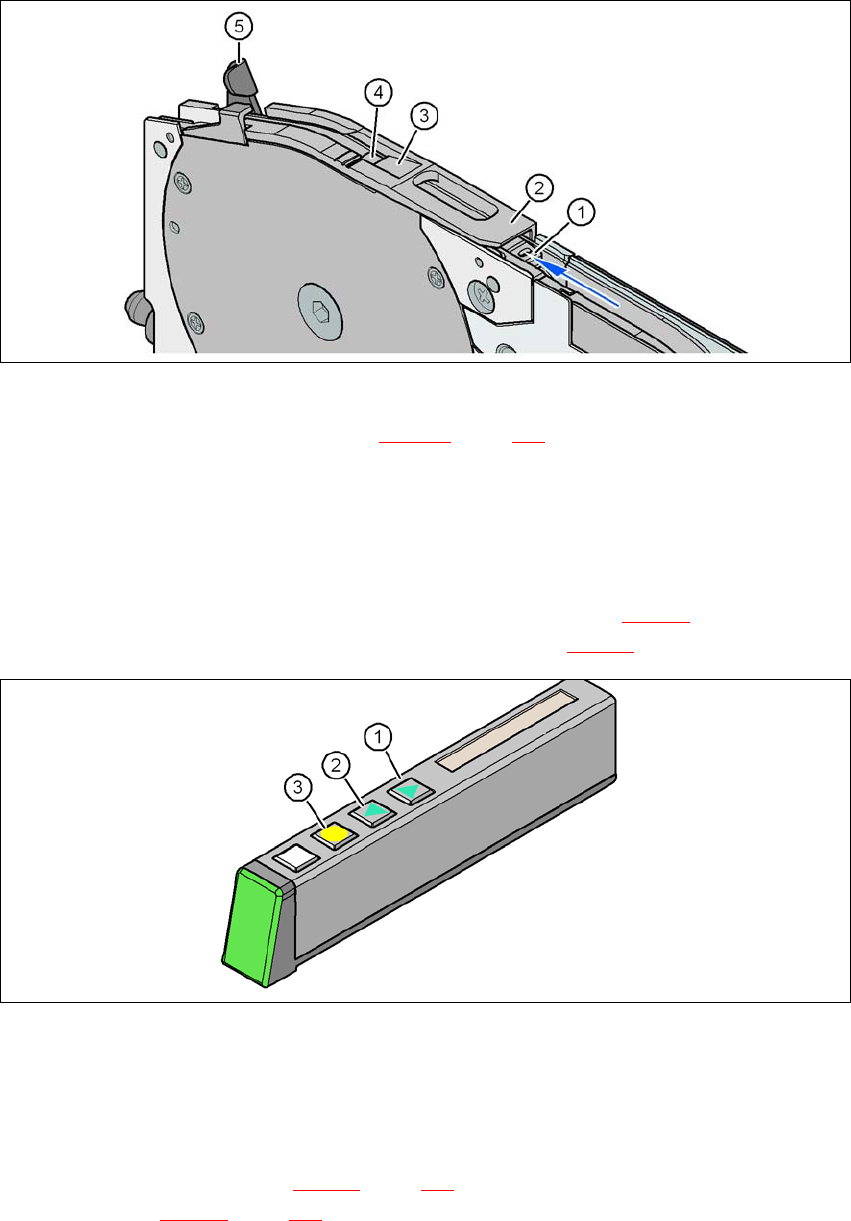

Fig. 5.10 - 5 Pickup window on the tape feeder module
(1) Tape support, removable (see section 5.10.4.4, page 268)
(2) Pickup window
(3) Removal edge for the cover foil
(4) Component pickup area
(5) Lever for raising and latching the pick-up window
On the operator panel, press the FORWARD button (item 1 in fig. 5.10 - 6) until the bend of
the cover foil is in the component pickup area (item 4 in fig. 5.10 - 5
).
5
Fig. 5.10 - 6 Feeder module operator panel (8 mm X to 88 mm X)
(1) FORWARD button for moving the component tape forward
(2) BACK button for moving the component tape back
(3) FOIL button for tensioning the cover foil
Push the lever (item 5 in fig. 5.10 - 5, page 266) forward in order to raise the pickup window
(item 2 in fig. 5.10 - 5
, page 266) into the first latching position.
User manual SIPLACE SX1/SX2 5 Working with the machine
From software version SC 706.1 SP1 Version 10/2014 5.10 Setting up the feeder modules
267
Pull the cover foil at the side of the pick-up window forward and out underneath the pick-up
window.
Fold the cover foil back until it lies against the pull-off edge (item 3 in fig. 5.10 - 5, page 266).
5
Push the lever (item 5 in fig. 5.10 - 5, page 266) back to lower the pickup window.
Guide the cover foil over the cover foil rocker (item 2 in fig. 5.10 - 7) until it reaches the foil
packing wheels (item 1 in fig. 5.10 - 7
).
5

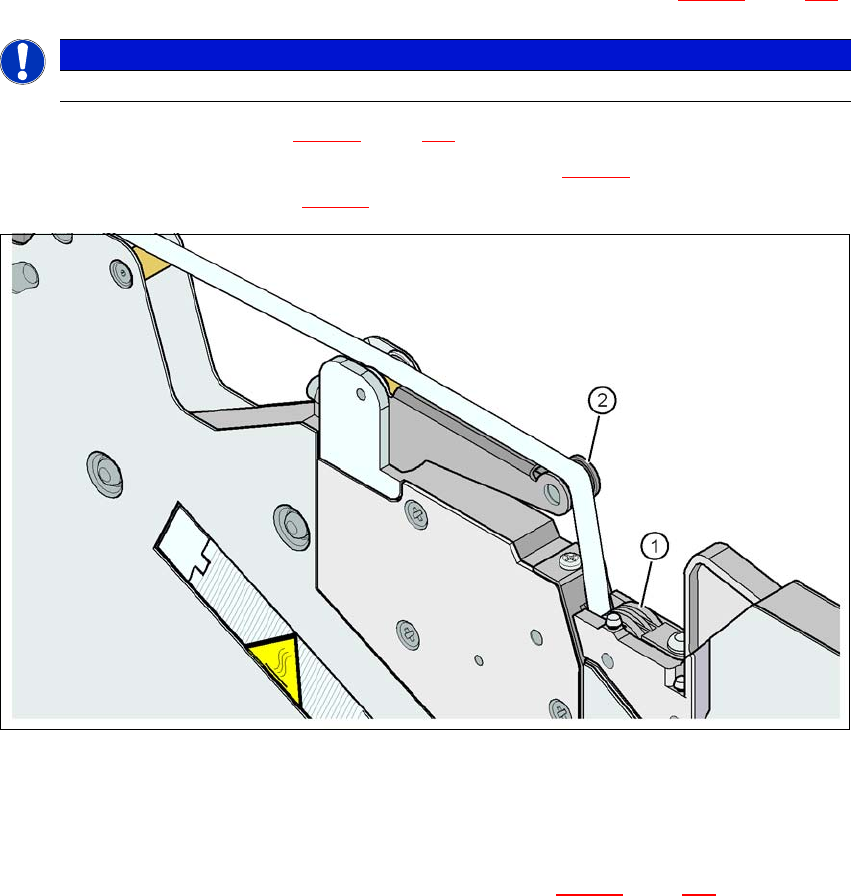

Fig. 5.10 - 7 Guiding the cover foil to the foil packing wheels
(1) Cover foil packing wheels
(2) Cover foil
5
On the operator panel, press the FOIL button (item 3 in fig. 5.10 - 6, page 266) until the cover
foil is tensioned. The cover foil rocker points down and stops the drive motor.
Cut the component tape flush with the front end of the feeder module.
PLEASE NOTE
Do not lower the pick-up window until the cover foil is lying against the pull-off edge.
