5 Working with the machine User manual SIPLACE SX1/SX2 5.10 Setting up the feeder modules From software version SC 706.1 SP1 Version 10/2014 268 5.10.4.4 T ape support for 8 mm X t ape feeder module 5 Fig. 5.10 - 8 8 mm …
User manual SIPLACE SX1/SX2 5 Working with the machine
From software version SC 706.1 SP1 Version 10/2014 5.10 Setting up the feeder modules
267
Pull the cover foil at the side of the pick-up window forward and out underneath the pick-up
window.
Fold the cover foil back until it lies against the pull-off edge (item 3 in fig. 5.10 - 5, page 266).
5
Push the lever (item 5 in fig. 5.10 - 5, page 266) back to lower the pickup window.
Guide the cover foil over the cover foil rocker (item 2 in fig. 5.10 - 7) until it reaches the foil
packing wheels (item 1 in fig. 5.10 - 7
).
5
Fig. 5.10 - 7 Guiding the cover foil to the foil packing wheels
(1) Cover foil packing wheels
(2) Cover foil
5
On the operator panel, press the FOIL button (item 3 in fig. 5.10 - 6, page 266) until the cover
foil is tensioned. The cover foil rocker points down and stops the drive motor.
Cut the component tape flush with the front end of the feeder module.
PLEASE NOTE
Do not lower the pick-up window until the cover foil is lying against the pull-off edge.
5 Working with the machine User manual SIPLACE SX1/SX2
5.10 Setting up the feeder modules From software version SC 706.1 SP1 Version 10/2014
268
5.10.4.4 Tape support for 8 mm X tape feeder module
5

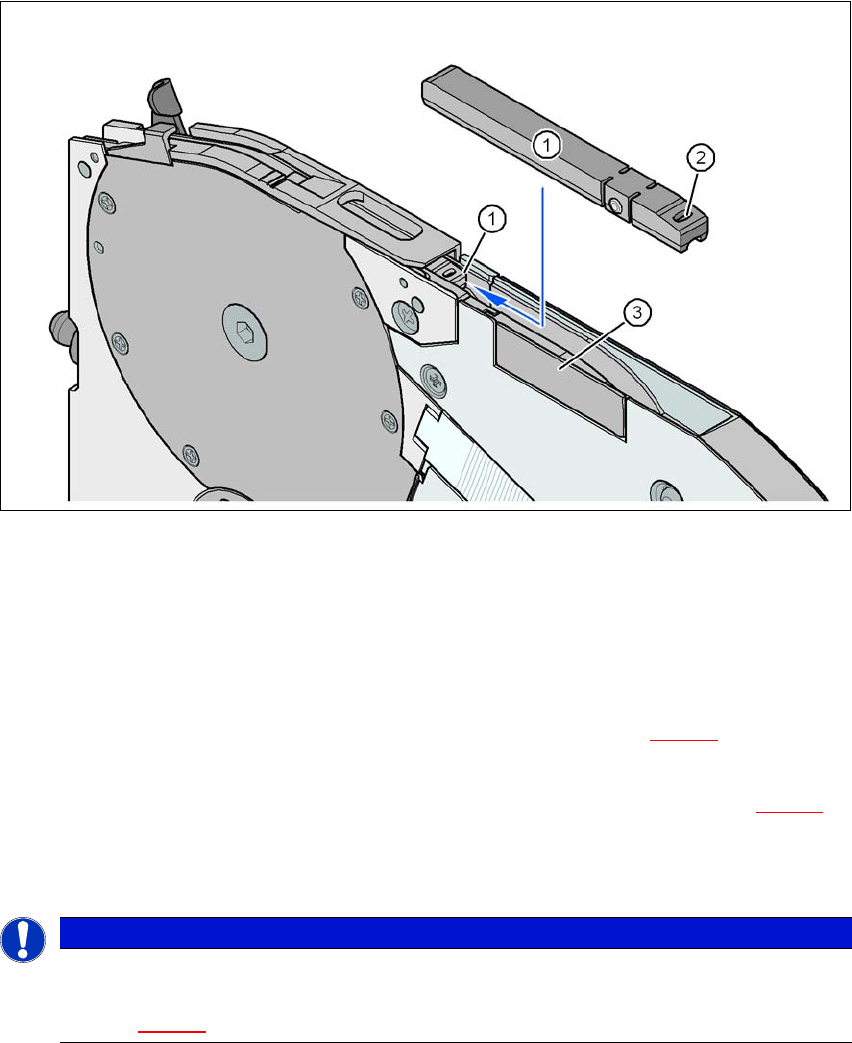

Fig. 5.10 - 8 8 mm X feeder module - tape support and splice sensor
(1) Tape support, removable
(2) Oval opening in the tape support
(3) Splice sensor installation location
The 8 mm X feeder module is equipped with a tape support (item 1 in fig. 5.10 - 8
). It can easily
be removed if necessary.
Insert the tang of a watchmaker's screwdriver into the oval opening (item 2 in fig. 5.10 - 8) in
the tape support and pull the tape support out against the direction of travel of the tape.
When you insert the tape support, make sure that it engages in its desired position.
5
PLEASE NOTE
Constant Z pickup height and reduction of time used to correct pickup heights
For all components size 0402 and smaller, always insert the tape support (item 1 in
fig. 5.10 - 8
) into the 8 mm X feeder module.
User manual SIPLACE SX1/SX2 5 Working with the machine
From software version SC 706.1 SP1 Version 10/2014 5.10 Setting up the feeder modules
269
5.10.4.5 Splice sensors for X tape feeder modules
Splice sensors can be retrofitted to the X tape feeder modules. There are two versions of the sen-
sor:
Splice sensor for 8 mm and 12 mm X tape feeder modules
Splice sensor for 16 mm to 88 mm X tape feeder modules 5
The splice sensor is installed at the position indicated by item 3 in fig. 5.10 - 8
, page 268.
Tape feeder modules with a splice sensor already installed can also be supplied (see section
3.9.2
, from page 148).
5.10.5 Configuring components on the 2x8 mm tape feeder module
The operation and configuration of 2x8 mm feeder modules is described in the "Tape Feeder Mod-
ule 2x8 mm X / Smart Feeder 12 mm X /16 mm X Job Guide".
Item number, German 00197216-01
Item number, English 00197217-01
5.10.6 Configuring components on the SIPLACE Smart Feeder
The operation and configuration of the SIPLACE Smart Feeder is described in the "Tape Feeder
Module 2x8 mm X / Smart Feeder 12 mm X /16 mm X Job Guide".
Item number, German 00197216-01
Item number, English 00197217-01
