User manual SIPLACE SX1/SX2 3 Technical data and assemblies From software version SC 706.1 SP1 Version 10/2014 3.9 X feeder modules for SIPLACE SX1/SX2 159 3.9.2.12 T ape feeder module 88 mm X 3 Fig. 3.9 - 14 T ape feede…
3 Technical data and assemblies User manual SIPLACE SX1/SX2
3.9 X feeder modules for SIPLACE SX1/SX2 From software version SC 706.1 SP1 Version 10/2014
158
3.9.2.11 Tape feeder module 72 mm X
3

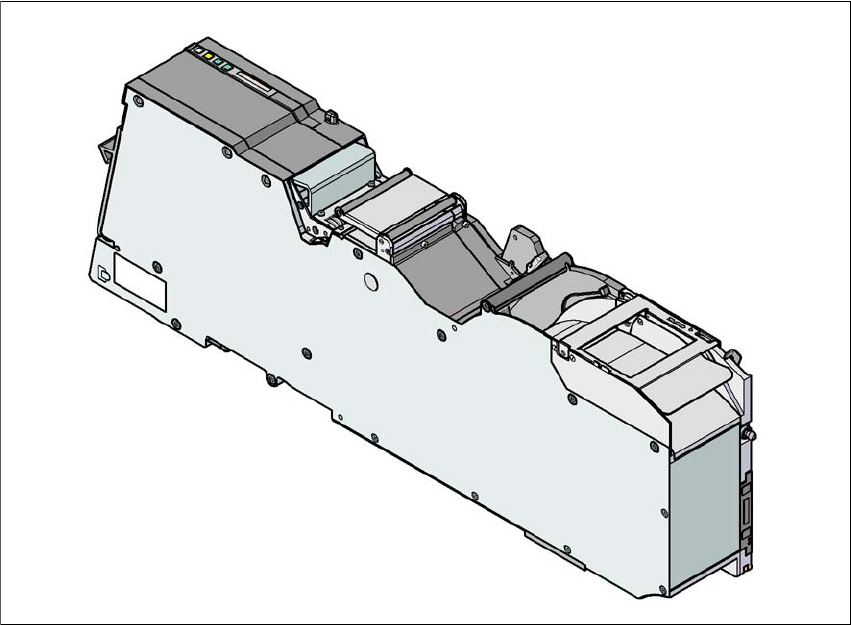

Fig. 3.9 - 13 Tape feeder module 72 mm X
3
3
3
72 mm X tape feeder module with splice sensor Item no. 00141297-xx
Width 81,6
Feeder module locations filled 7
Conveyor increment From 4 mm to 80 mm in 4 mm increments
Changeover time for the component tape < 45 s
Changeover time for the preset feeder module
on the machine
≤ 8 s
User manual SIPLACE SX1/SX2 3 Technical data and assemblies
From software version SC 706.1 SP1 Version 10/2014 3.9 X feeder modules for SIPLACE SX1/SX2
159
3.9.2.12 Tape feeder module 88 mm X
3
Fig. 3.9 - 14 Tape feeder module 88 mm X
3
3
88 mm X tape feeder module with splice sensor Item no. 00141298-xx
Width 105.2 mm
Feeder module locations filled 9
Conveyor increment From 4 mm to 96 mm in 4 mm increments
Changeover time for the component tape < 45 s
Changeover time for the preset feeder module
on the machine
≤ 8 s
3 Technical data and assemblies User manual SIPLACE SX1/SX2
3.9 X feeder modules for SIPLACE SX1/SX2 From software version SC 706.1 SP1 Version 10/2014
160
3.9.3 SIPLACE Glue Feeder
Item no. 03088129-xx SIPLACE Glue Feeder
3
Fig. 3.9 - 15 SIPLACE Glue Feeder
3.9.3.1 Description
The SIPLACE Glue Feeder allows you to position dots of adhesive on a component, before it is
placed. These dots of adhesive can then be checked by the SIPLACE Vision system. The required
glue dots can be defined in the Component Shape Editor in SIPLACE Pro and you can also define
whether individual dots of adhesive are to be excluded from inspection or not. This adhesive func-
tion can be enabled and disabled in the Component Editor in SIPLACE Pro. The SIPLACE Glue
Feeder is a special feeder module which needs to be configured by you as a fixed feature on a
specific table track. For a detailed description, see the "SIPLACE Glue Feeder User Manual, Ger-
man [item no. 00197218-01-xx.],
English [item no. 00197219-xx]
