6.1.3.5 Component reject bin for the SIPLACE TwinStar
A component reject bin can be installed for the SIPLACE TwinStar. This is positioned next to the
fine pitch Vision module.
6.1.3.6 Grippers and special nozzles
The SIPLACE machines can process components based on through hole technology and odd-
shaped (OSC) components, in addition to the standard SMT spectrum. ASM also continuously de-
velops special nozzles and grippers.
Special nozzles are available for all placement heads in order to process placement jobs with max-
imum speed, precision and flexibility. The use of automatic nozzle changers also reduces the
setup times that occur at a product change.
ASM can provide mechanical grippers for Pick&Place heads. If a component's surface is not suit-
able for sucking up with nozzles, then it can be picked up and placed with mechanical grippers.
There are two types of gripper and their functions can be divided into two groups:
– Grippers that grip the component at its outer edges and
– Grippers that grip the component at its inner edge.
Information on special nozzles and grippers is available from ASM. For the production of special
magazines and grippers, again contact ASM.
User manual SIPLACE SX1/SX2 6 Station extensions
From software version SC 706.1 SP1 Version 10/2014 6.1 Nozzle changer
307
6.1.4 Nozzle changer for the 12 segment Collect&Place head
Item no. 00120604-xx Nozzle changer SX12 V2, C&P12 for position 1 or 2
6

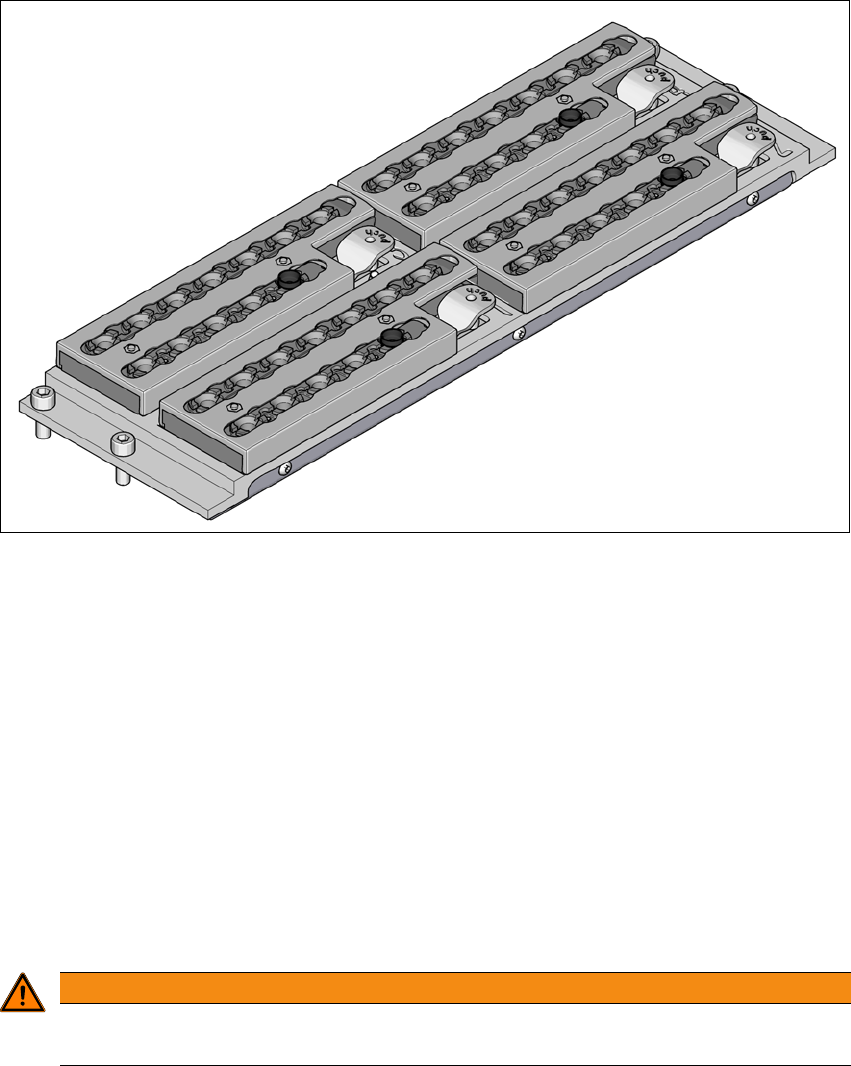

Fig. 6.1 - 17 Nozzle changer for the 12 segment C&P head
6.1.4.1 Description
This nozzle changer can accommodate 4 magazines, each with 12 nozzle garages.
The magazines are seated on a common support. They are centered with two parallel pins and
fixed in place with 4 push buttons. The exact position is determined with two fiducials on each
magazine. The correct seat of the magazines on the basic nozzle changer body is monitored by
microswitches, to prevent a collision of the placement head with any magazines projecting up-
wards. All magazine locations must be filled since the safety circuit stops the machine in response
to missing magazines or magazines that are not seated correctly.
At the installed nozzle station, components can be blown off the nozzles of the SpeedStar and noz-
zles stripped off and rejected.
6
WARNING
The magazine for the 12 segment C&P head may only be used together with the 12
segment C&P head.
6 Station extensions User manual SIPLACE SX1/SX2
6.1 Nozzle changer From software version SC 706.1 SP1 Version 10/2014
308
6.1.4.2 Technical data
6
6.1.4.3 Position of nozzle changer for the 12 segment C&P head in the SX machine
6
Fig. 6.1 - 18 Position of nozzle changer for the 12 segment C&P head - example of SX2 shown
6
Nozzle changer for the SIPLACE 12 segment C&P head
Dimensions (length x width x height) 314 mm x 94.5 mm x 68.6 mm
Number of nozzle holders 48
Number of nozzle magazines 4
Nozzle types 3xxx
Nozzle changeover time Approx. 2s per nozzle
Compressed air connection 0.45 MPa (4.5 bar)
(1) Component trolley (PA) Placement area
(NC) Nozzle changer
(1)
(1)
