6 Station extensions User manual SIPLACE SX1/SX2
6.1 Nozzle changer From software version SC 706.1 SP1 Version 10/2014
288
6.1.1 Nozzle changer for the SIPLACE SpeedStar
Item no. 00519715-xx Nozzle changer SX, C&P20 for position 1 or 2
Item no. 00519843-xx Nozzle changer SX, C&P20 for position 3 or 4
or 6
Item no. 03103649-xx nozzle changer basic assembly CP/all - short
6

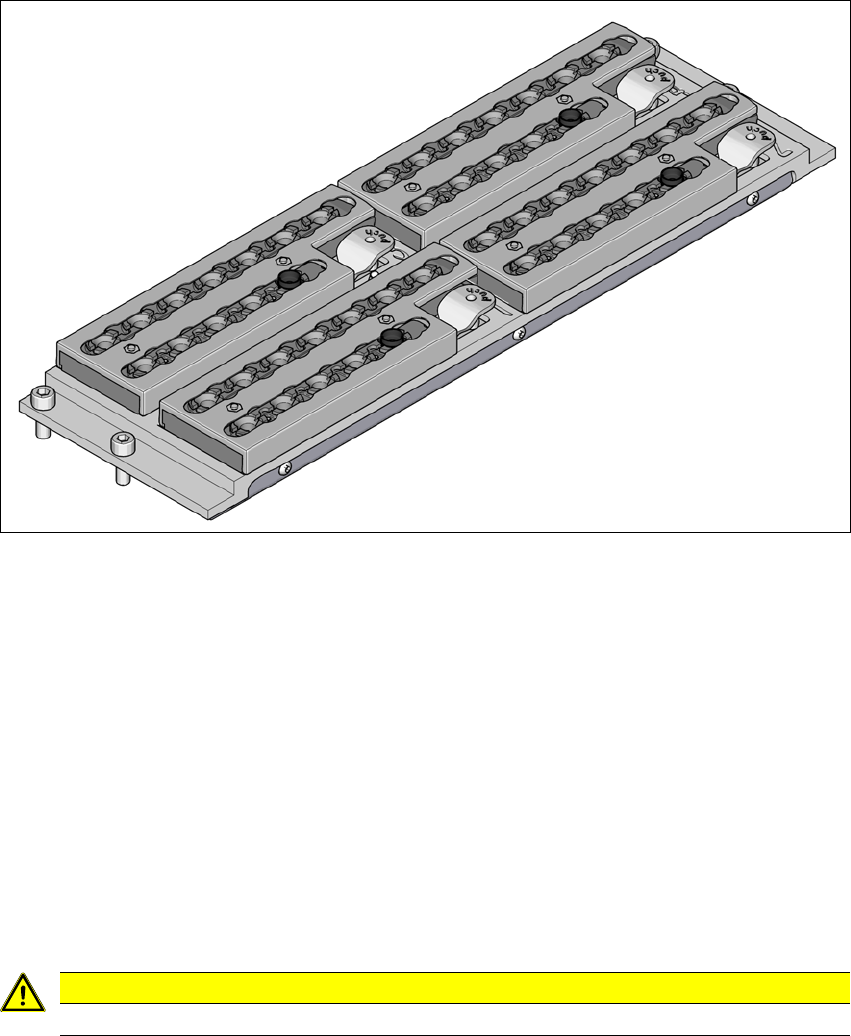

Fig. 6.1 - 1 Nozzle changer for the SIPLACE SpeedStar
6.1.1.1 Description
This nozzle changer can accommodate 4 magazines, each with 12 nozzle garages.
The magazines are seated on a common support. They are centered with two parallel pins and
fixed in place with 4 push buttons. The exact position is determined with two fiducials on each
magazine. The correct seat of the magazines on the basic nozzle changer body is monitored by
microswitches, to prevent a collision of the placement head with any magazines projecting up-
wards. All magazine locations must be filled since the safety circuit stops the machine in response
to missing magazines or magazines that are not seated correctly.
At the installed nozzle station, components can be blown off the nozzles of the SpeedStar and noz-
zles stripped off and rejected.
6
CAUTION
Only use the magazine for the SIPLACE SpeedStar together with the SpeedStar.
User manual SIPLACE SX1/SX2 6 Station extensions
From software version SC 706.1 SP1 Version 10/2014 6.1 Nozzle changer
289
6.1.1.2 Technical data
6
6.1.1.3 Position of nozzle changer for the SIPLACE SpeedStar in the SX2 machine
6

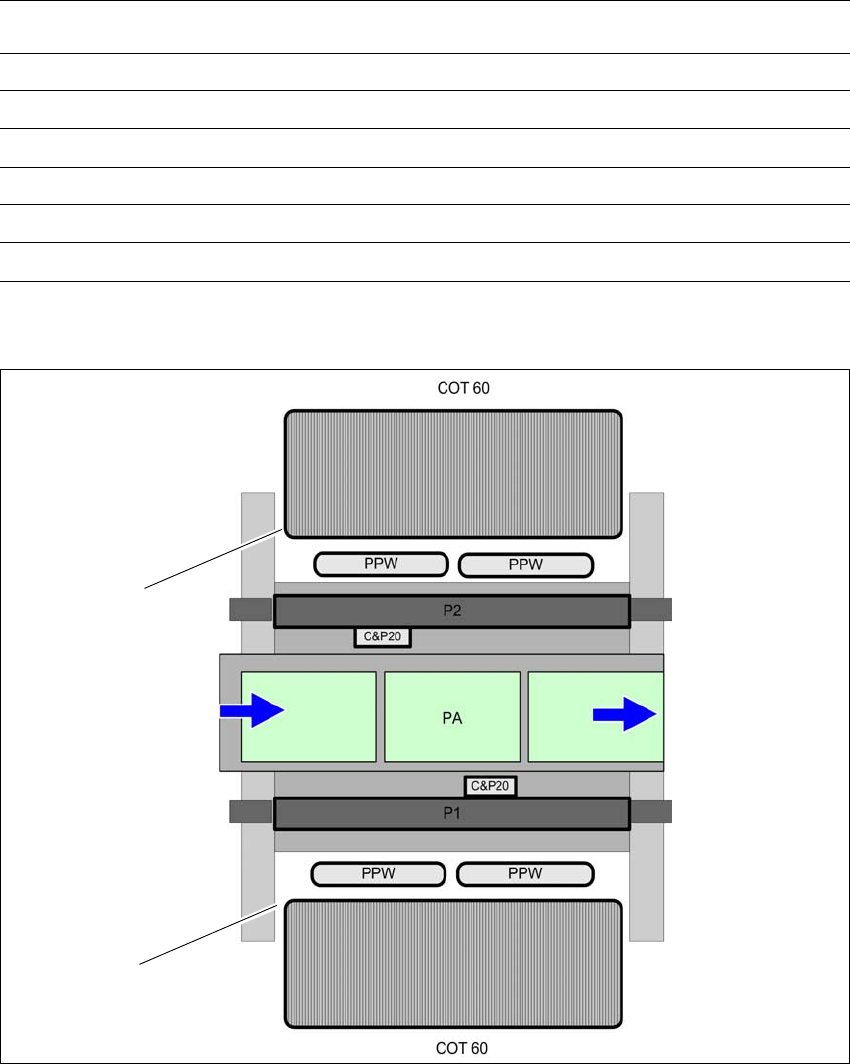

Fig. 6.1 - 2 Position of nozzle changer for the SIPLACE SpeedStar - example
Nozzle changer for the SIPLACE SpeedStar
Dimensions (length x width x height) 314 mm x 94.5 mm x 68.6 mm
Number of nozzle holders 48
Number of nozzle magazines 4
Nozzle types 10xx, 11xx and 12xx
Nozzle changeover time Approx. 2s per nozzle
Compressed air connection 0.45 MPa (4.5 bar)
(1) Component trolley in the inner position
(NC) Nozzle changer
(PA) Placement area
(1)
(1)
6 Station extensions User manual SIPLACE SX1/SX2
6.1 Nozzle changer From software version SC 706.1 SP1 Version 10/2014
290
6.1.1.4 Assembly
In SX machines, the nozzle changers are fixed to the component trolley COT insert.
6

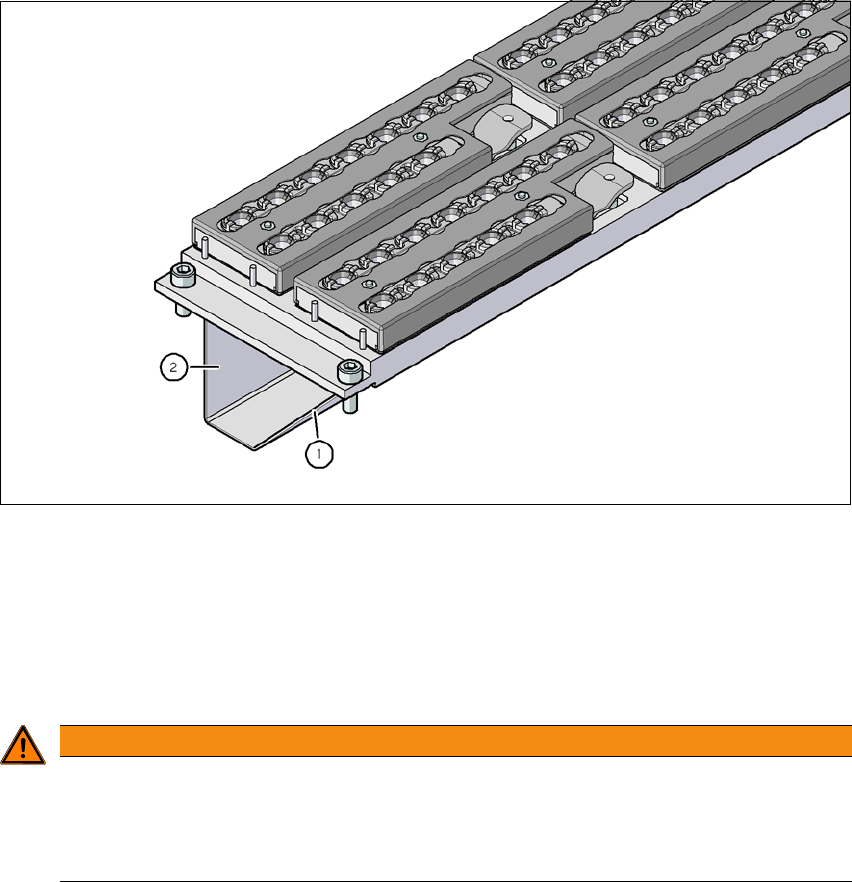

Fig. 6.1 - 3 Assembly position
(1) Sloping side points towards the component trolley COT insert
(2) Vertical side points towards the PCB conveyor
Align the nozzle changer so that the sloping side points towards the component trolley COT
insert.
6
WARNING
Risk of head crashes with mixed configurations!
There is a risk of head crashes with mixed configurations.
Only install the associated nozzle changer for each placement head, with the nozzle
magazines for the respective placement head.
