User manual SIPLACE SX1/SX2 5 Working with the machine From software version SC 706.1 SP1 Version 10/2014 5.6 Alert information and online help 245 5.6.2 Viewing information about the selected alert Click on the button…
5 Working with the machine User manual SIPLACE SX1/SX2
5.6 Alert information and online help From software version SC 706.1 SP1 Version 10/2014
244
5

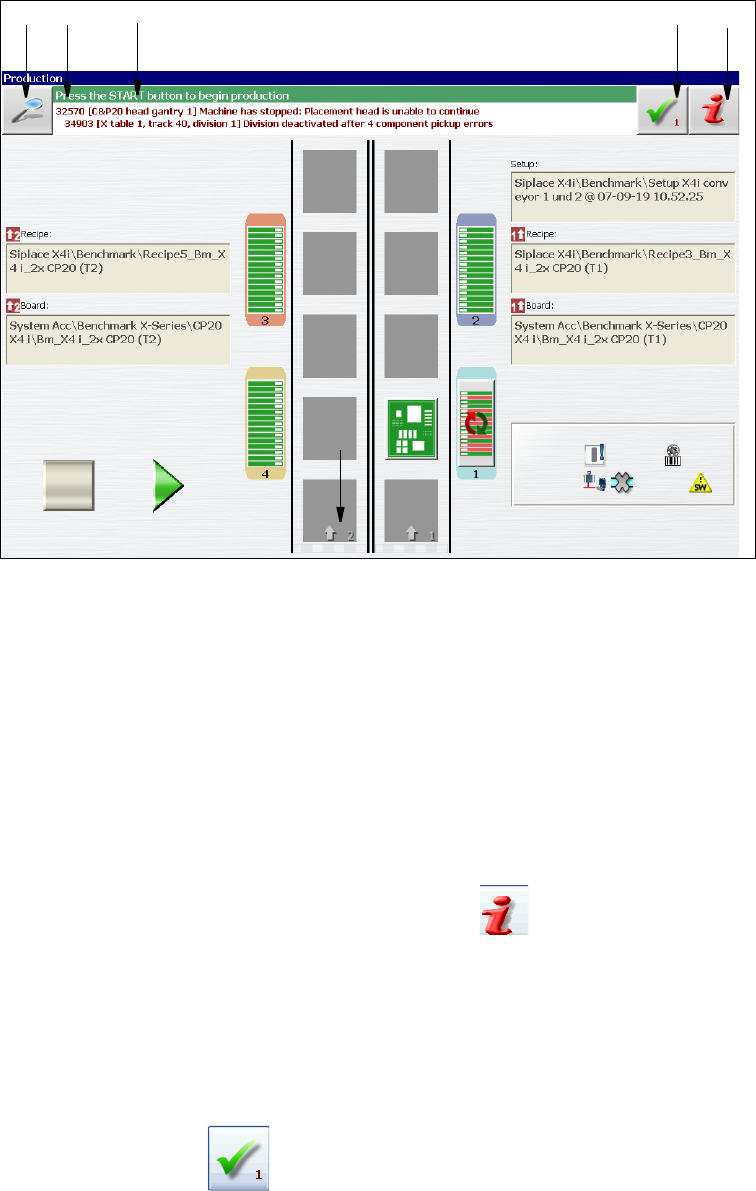

Fig. 5.6 - 1 "Production" view with alert message (example of SIPLACE X4i shown)
Legend for fig. 5.6 - 1
(1) Alert number
(2) Alert message: brief information about the alert
(3) "Details" icon: for opening detailed information (e.g. error source, time of occurrence)
(4) "Acknowledge alert" icon: for deleting the alert display
(5) "Alert information" icon: for opening the help function for the current alert
5.6.1 Viewing information about the current alert
To view information about the current alert, click on the icon to start the help system for the
station computer. The main window of the help system will open with alert information. The infor-
mation refers to the alert currently shown and from which the help function was started.
Once an alert has been resolved and the solution has been automatically determined by the ma-
chine, this alert will be automatically removed from the status field.
If the solution is not recognized automatically, the alert can also be manually deleted from the sta-
tus field.
To do this, click on the icon; the alert message will no longer be shown in the status field.
12
3
4
5
User manual SIPLACE SX1/SX2 5 Working with the machine
From software version SC 706.1 SP1 Version 10/2014 5.6 Alert information and online help
245
5.6.2 Viewing information about the selected alert
Click on the button in the toolbar (1).
All the alerts which occurred will be listed.
Click on the "Show message report" (2) button.
Click through the menu tree of the alert list (3), to open detailed alert messages.
. 5

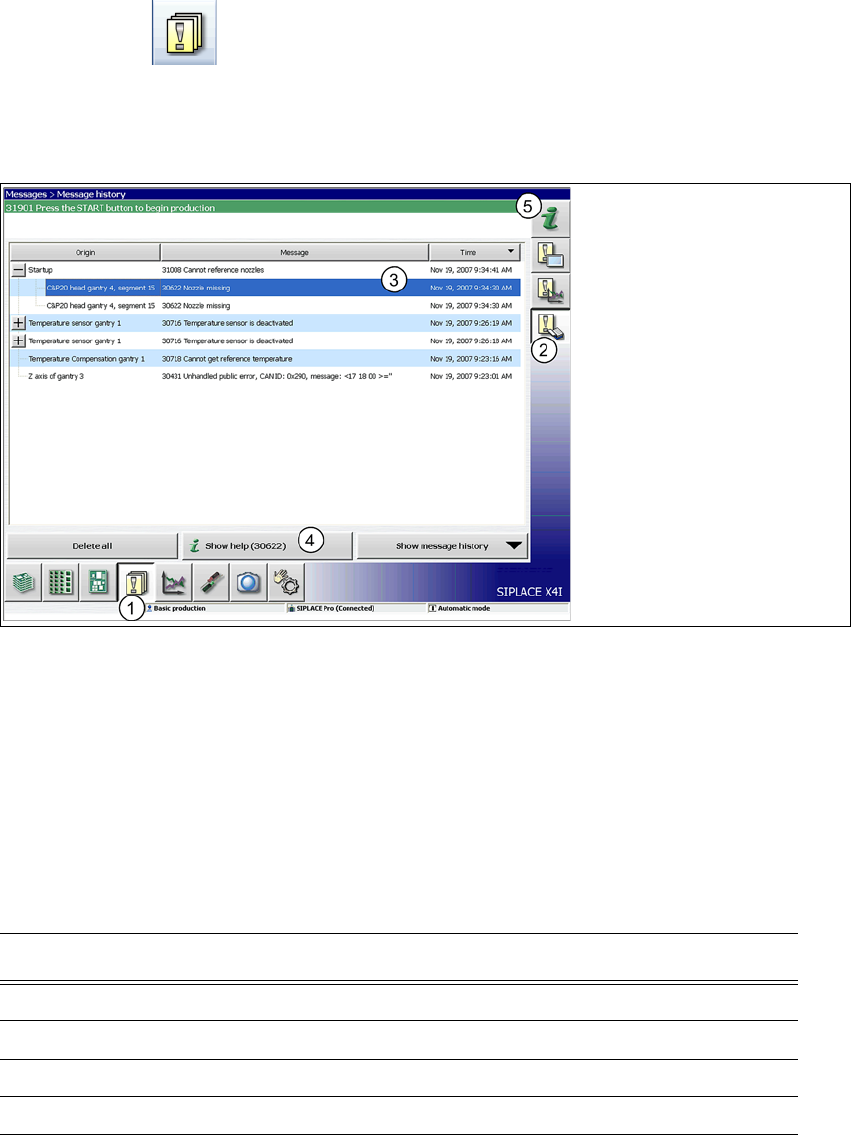

Fig. 5.6 - 2 Example:alert list (example of SIPLACE X4i shown)
Select the alert display for which you want to view information from the list of alerts.
Click on the "Show Help" (4) button to view the information.
To view information about a different alert, search the index of the help system (5) by entering the
alert number.
5.6.3 Color coding in the online help alert information
5
Text highlight Meaning
Red text Alert number and message
Black text Possible cause(s) of alert
Green text Instructions for solving the alert
Blue underlined text Open additional information
5 Working with the machine User manual SIPLACE SX1/SX2
5.6 Alert information and online help From software version SC 706.1 SP1 Version 10/2014
246
5.6.4 Context-sensitive online help
To see information about the current view, click on the icon to start the help system for the
station computer. The main window of the help system will open with alert information. The infor-
mation refers to the view currently shown and from which the help function was started. Use the
list of contents, index and the search function to view the contents of the Online Help.
