5.9.3 Checking the support pins
Check the position of the support pins on the lifting table:
– Make sure that the support pins do not collide with components on the underside of the
PCBs.
– In addition, make sure that the support pins do not collide with the PCB conveyor panels.
– To ensure safe and automatic positioning of the support pins, we recommend that you
use the Smart Pin Support option. See also section 6.15
, page 346.
5.9.4 Mount of additional tape reel
5

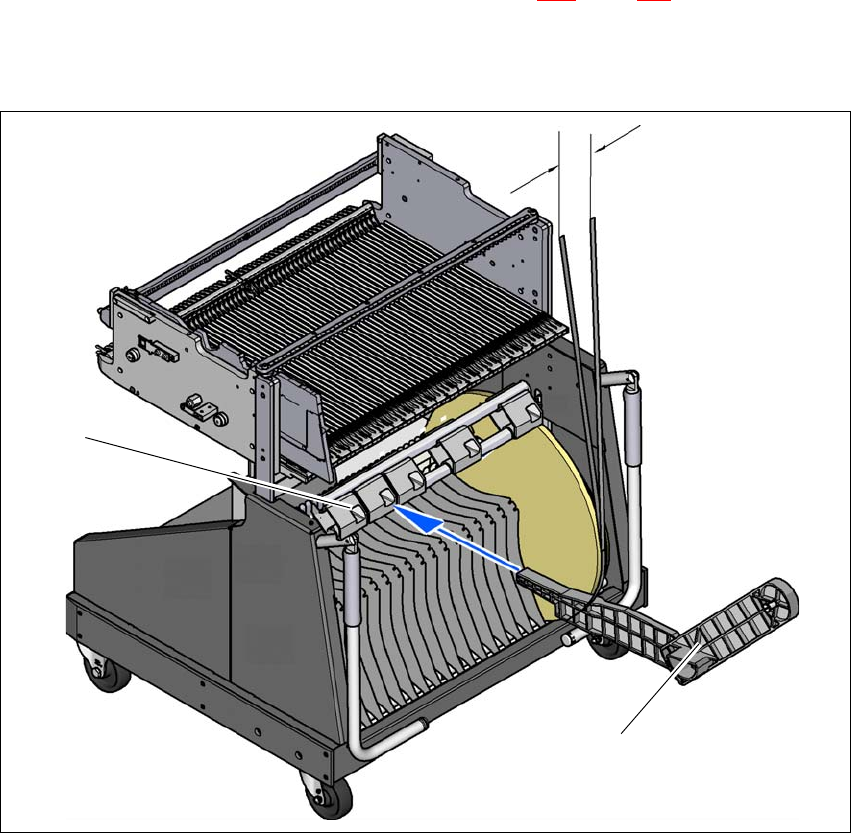

Fig. 5.9 - 2 Mount of additional tape reel
(1) Mount of additional tape reel, item no. 00141217-xx
(2) Mounting device for the support
5
Max. 60 mm
(1)
(2)
User manual SIPLACE SX1/SX2 5 Working with the machine
From software version SC 706.1 SP1 Version 10/2014 5.9 Carrying out a sight check
257
X-Series feeder modules can process component tapes without problems if the lateral offset be-
tween the feeder module and the tape reel does not exceed 60 mm. If a predefined setup means
that the maximum permitted offset cannot be maintained, we recommend that you use the mount
for an additional tape reel (item 1). Simply insert the mount into the holder (item 2) and push it until
the offset is less than the maximum permitted value of 60 mm. The component trolley has 5 hold-
ers in total. Each tape reel mount can hold 2 tape reels, which means that up to ten 15" (381 mm)
tape reels can be positioned above the tape container.
5.9.5 Inserting separating plates into the tape container
The separating plate has different edges and can be inserted into the tape container in two
ways. If spindles are used, the recesses for the spindles in the separating plate point upwards
(see item 4 in fig. 5.9 - 3
). If you do not use spindles, the rounded edge of the separating
plate points up (see item 5 in fig. 5.9 - 3
).
Insert the separating plates as shown in fig. 5.9 - 3 and remember that the smallest division
of the tape container is a 2x division. This will help avoid placement errors.
Check that the separating plates engage in the same positions on the three guide rails. Oth-
erwise the separating plate will be offset or bent.
5 Working with the machine User manual SIPLACE SX1/SX2
5.9 Carrying out a sight check From software version SC 706.1 SP1 Version 10/2014
258
5

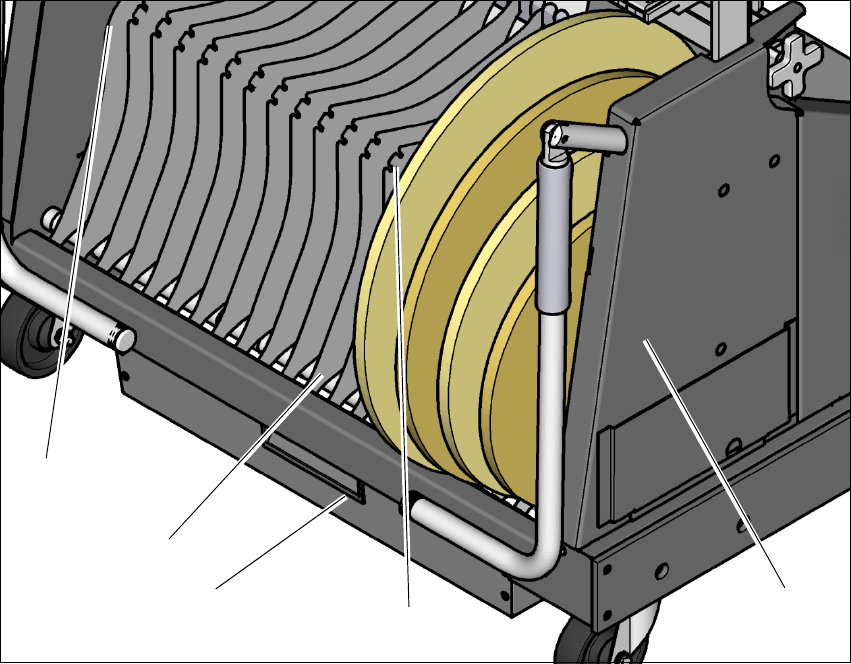

Fig. 5.9 - 3 Separating plates in the tape container
(1) Position of the separating plate if no spindles are used
(2) Guide rail for the separating plates
(3) Waste tape container
(4) Position of the separating plate if spindles are used
(5) Tape container
(1)
(5)
(2)
(3)
(4)
