2 Operational safety User Manual SIPLACE 80S-20/F4
2.8 ESD guidelines Software version SR.406.xx 02/2000 Issue US
108
Do not allow modules with chargeable and highly insulating materials to touch one another, e.g.
plastic films, insulating table surfaces or items of clothing made from synthetic fibers. 2
Always place the modules on a conductive surface (table with an ESD coating, conductive ESD
foam, ESD bag or container). 2
Do not bring modules near visual display units, monitors or televisions. Keep them at least 10 cm
away from the screen. 2
2.8.4 Measurements and modifications to ESD modules
Do not take measurements on such modules unless
Å the measuring device is earthed (e.g. via PE conductors) or
Å you discharge the measuring head just before taking measurements with a potential-free mea-
suring device (e.g. by touching an unpainted metal part of the controller casing).
Å Always use an earthed soldering iron if you carry out any soldering work.
2.8.5 Dispatching ESD modules
Å Always store modules and components in conductive packaging (e.g. metallized plastic bags
or metal sleeves) and dispatch them in conductive packaging.
If the packaging is not conductive, place the modules in a conductive envelope before pack-
aging. (Use ESD bags, domestic aluminum foil or paper, for example. NEVER use plastic bags
or film). 2
Å If the module has integral batteries, ensure that the conductive packaging does not touch or
short-circuit the battery terminals and, if necessary, first cover the terminals with insulating tape
or material.
2
User Manual SIPLACE 80S-20/F4 3 Introduction and basic concepts
Software Version SR.406.xx 02/2000 Issue US
109
3 Introduction and basic concepts
This chapter describes the machine displays and controls together with the components of the
graphic user interface.
3
It also provides a basic understanding of the use of the user interface and its functions. 3
NOTE
It is essential for operators who are not yet familiar with the user interface of the station computer
software (SC software) to read this chapter. 3
3 Introduction and basic concepts User Manual SIPLACE 80S-20/F4
3.1 Machine displays and controls Software Version SR.406.xx 02/2000 Issue US
110
3.1 Machine displays and controls
3.1.1 Overview
3

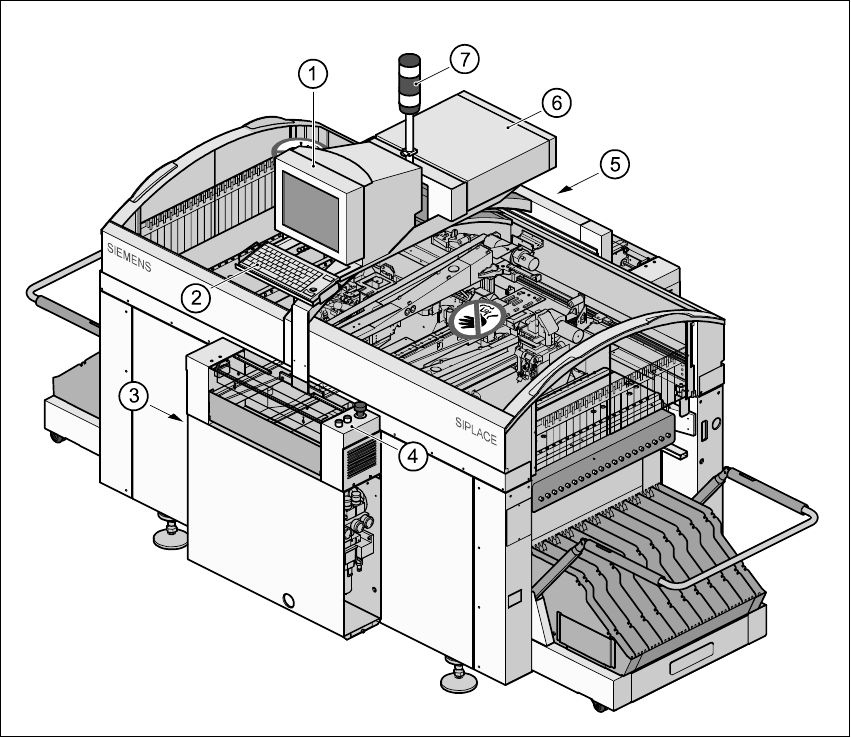

Fig. 3.1 - 1 Overview
Key to Fig. 3.1 - 1
(1) Monitor
(2) Keyboard
(3) Main power switch
(4) Front control panel
(5) Rear control panel
(6) Computer
(7) Main fault indicator
