10 Component handling User Manual SIPLACE 80S-20/F4 10.2 Technical data for the feeder mo dules Softwa re version SR.406.xx 02/00 US Edition 426 10.2.9 72mm S module (80F 4 ) 10 Fig. 10.2 - 9 72 mm S module Item no. 0014…
User Manual SIPLACE 80S-20/F4 10 Component handling
Software version SR.406.xx 02/00 US Edition 10.2 Technical data for the feeder modules
425
10.2.8 56 mm S module (80F
4
)
10

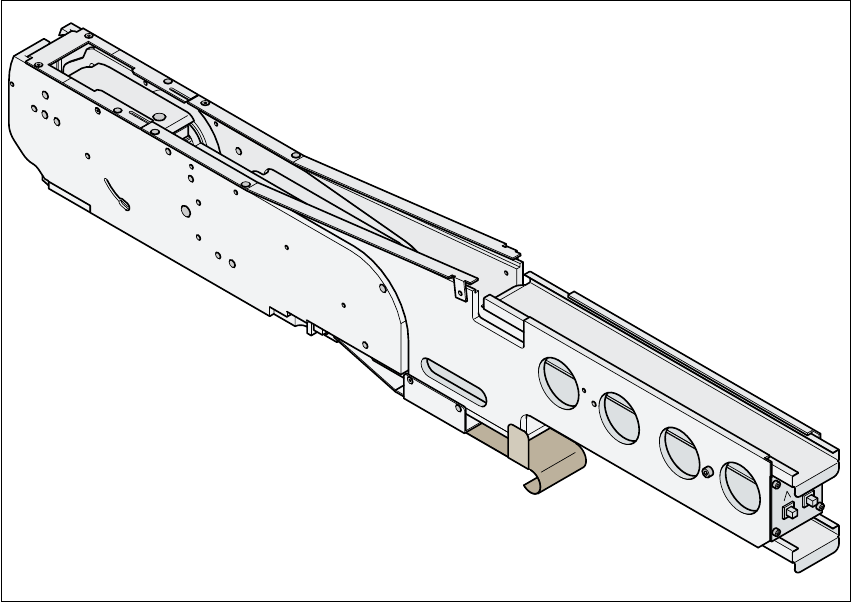

Fig. 10.2 - 8 56 mm S module
Item no. 00141095-xx
Width 75 mm
Tracks per module 1
Maximum number of modules 2 x 8
Magazine capacity for 7" reels Approx. 2000
Reel diameter Up to 381 mm
Feeding stroke (variable) 4 to 56mm (in 4 mm increments)
Cycle time 60 ms ± 5 ms for a feeding interval of 8 mm
Main power supply 30 VDC
10 Component handling User Manual SIPLACE 80S-20/F4
10.2 Technical data for the feeder modules Software version SR.406.xx 02/00 US Edition
426
10.2.9 72mm S module (80F
4
)
10
Fig. 10.2 - 9 72 mm S module
Item no. 00141097-xx
Width 90 mm
Tracks per module 1
Maximum number of modules 2 x 6
Magazine capacity for 7" reels Approx. 2000
Reel diameter Up to 381 mm
Feeding stroke (variable) 4 to 72 mm (in 4 mm increments)
Cycle time 60 ms ± 5 ms for a feeding interval of 8 mm
Main power supply 30 VDC
User Manual SIPLACE 80S-20/F4 10 Component handling
Software version SR.406.xx 02/00 US Edition 10.2 Technical data for the feeder modules
427
10.2.10 Component disposal module (80F
4
)
10
Fig. 10.2 - 10 Component disposal module
10
Article number 00141200-xx
Width 54mm
Tracks per module 1
Feeder locations occupied 2
Component range up to 27mmx27mm for a 30mmx30mm pocket size
up to 13mmx13mm for a 15mmx30mm pocket size
Maximum component height 14mm
Transport distance (adjustable) 20mm for a 15mmx30mm pocket size
36mm for a 30mmx30mm pocket size
Power supply 30 V-
