1 Introduction User Manual SIPLACE 80S-20/F4
1.4 Revision index Software version SR.406.xx 02/2000 Issue US
28
1.4.5 Overview of the revisions in the 03/98 issue
1.4.6 Overview of the revisions in the 05/99 issue
Manual nozzle change 9.5; 9.7
Maintenance of the camera systems 9.9
New nozzle type 8 with contour diagram 17
Revised functions Affected Chapter / Section
New functions Affected Chapter / Section
Component vision system for the
6-nozzle revolver head
0; 5
User Interface 2
Empty Tape Cutter on SIPLACE 80F
5
Automatic Place-
ment Machines
10.8
Surf tape feeder module 10.10
Revised functions Affected Chapter / Section
Introduction 0
Operational safety 1
On-line help 8
New coplanarity laser module 1; 5; 9
New nozzles, nozzle contour diagrams 17
Revised functions Affected Chapter / Section
Introduction 0
Operational safety 1
Vision system 5
Component table, mobile 6, 9, 10
New nozzles 17
User Manual SIPLACE 80S-20/F4 1 Introduction
Software version SR.406.xx 02/2000 Issue US 1.4 Revision index
29
1.4.7 Overview of the revisions in the 02/00 issue
New or modified Chapter/Section
SIPLACE on the World Wide Web (WWW) 1.1.1
Safety instructions for the PCB barcode reader (option) 2.1.9
Safety instructions for coupling and uncoupling the mobile
changeover table
2.1.10
Safety instructions for changing the height of component tables 2.1.11
Safety instructions for the changeable component feeder table 2.1.12
"Mode" menu6WDUW6,3/$&( 2,6 3.3.2.1
"Mode" menu6WDUWSIPLACE Pro 3.3.2.1
"Mode" menu&RQILJXUHSIPLACE PRO connection 3.3.2.1
"Options" menu&RQWUROPRGH6,3/$&(3UR 3.3.2.3
"Options" menu, Cluster for fine calibration
3.3.2.3
Printing a help topic 9.1.2.2
Vision functions 6
What should you do ... 7
3 x 8 mm S module 10.2.2
Component disposal module (80F4) 10.2.10
PCB barcode 11.4
Coplanarity laser module (80F4) 11.8
Fine calibration 11.12
1 Introduction User Manual SIPLACE 80S-20/F4
1.5 Description of the machine Software version SR.406.xx 02/2000 Issue US
30
1.5 Description of the machine
1.5.1 SIPLACE 80S-20 functional description
The S-20 automatic placement system is a high-performance placement system with two gantry
axis systems. A PCB vision system and a star-shaped 12-segment revolver head are mounted on
each gantry. Revolver placement heads equipped with a component vision system pick up the
components from stationary feeder modules and place them onto the PCB clamped in the PCB
conveyor. 1

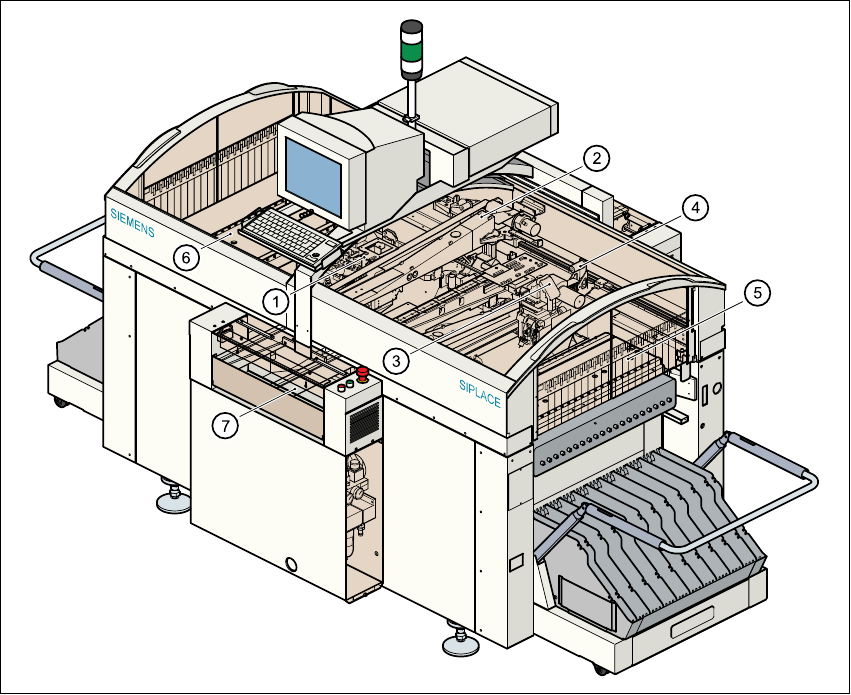

Fig. 1.5 - 1 Functional description of the 80S-20 placement system
(1) 12-segment revolver head with component vision module (gantry 1)
(2) Gantry 1 with PCB vision module
(3) 12-segment revolver head with component vision module (gantry 2)
(4) Gantry 2 with PCB vision module
(5) Stationary component supply (location 1)
(6) Stationary component supply (location 3)
(7) PCB conveyor (dual conveyor option)
