10 Component handling User Manual SIPLACE 80S-20/F4 10.2 Technical data for the feeder mo dules Softwa re version SR.406.xx 02/00 US Edition 420 10.2.3 12/16 mm S module 10 Fig. 10.2 - 3 12/16 mm S module Item no. 001410…
User Manual SIPLACE 80S-20/F4 10 Component handling
Software version SR.406.xx 02/00 US Edition 10.2 Technical data for the feeder modules
419
10.2.2 3 x 8 mm S module
10

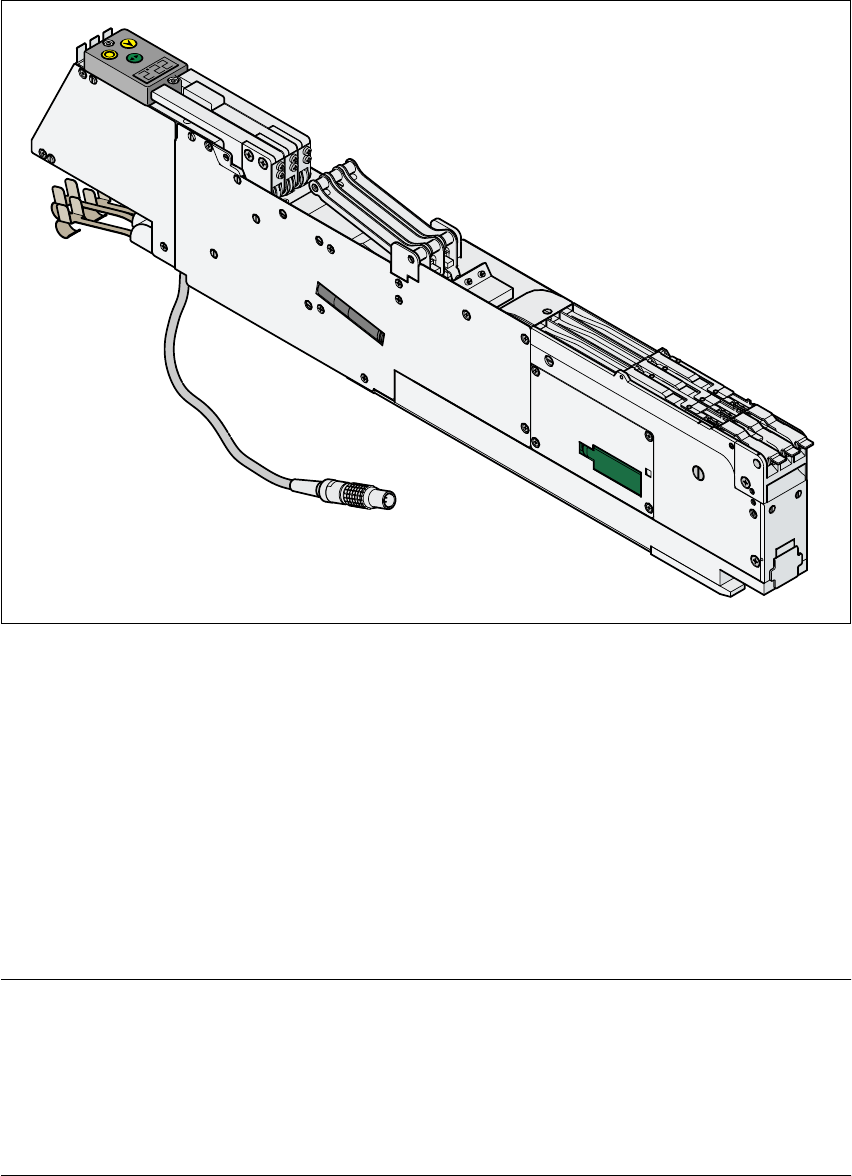

Fig. 10.2 - 2 3 x 8 mm S module
Item no. 00141098-xx
Width 30 mm
Tracks per module 3
Maximum number of modules 2 x 20
Magazine capacity for 7" reels Approx. 10,000
Reel diameter 7" - 15" (up to 381 mm)
Feeding stroke (variable) 2mm / 4mm
Cycle time 60 ms
Main power supply 30 VDC
LIMITED COMPONENT PICK-UP OPTIONS:
If the following combination of track, location and conveyor track is used, components cannot be
picked up from triple conveyors.
Location/Track Conveyor track
1/115 3
3/1 1 10
10 Component handling User Manual SIPLACE 80S-20/F4
10.2 Technical data for the feeder modules Software version SR.406.xx 02/00 US Edition
420
10.2.3 12/16 mm S module
10

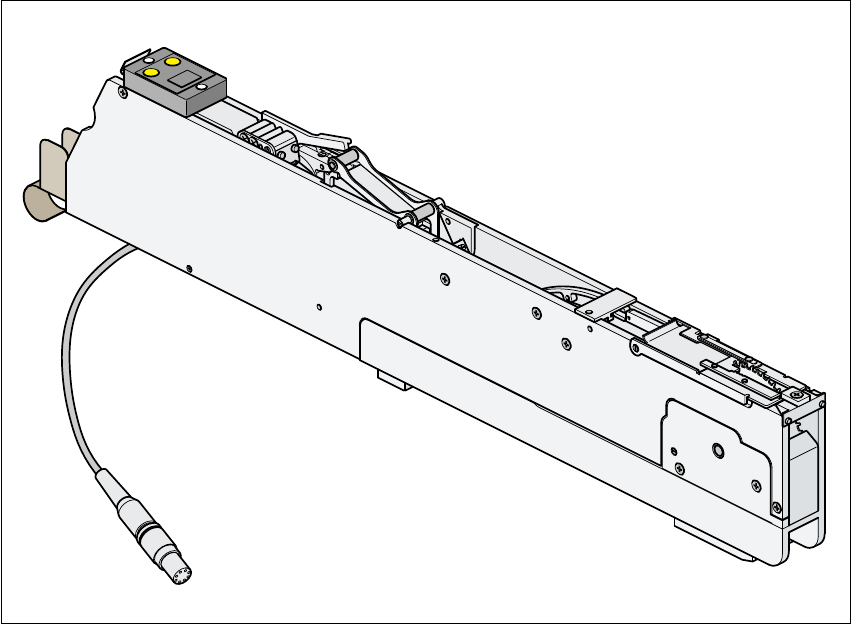

Fig. 10.2 - 3 12/16 mm S module
Item no. 00141092-xx
Width 30 mm
Tracks per module 1
Maximum number of modules 2 x 20
Magazine capacity for 7" reels Approx. 4000
Reel diameter 7" - 15" (up to 381 mm)
Feeding stroke (variable) 4 mm, 8 mm, 12 mm, 16 mm
Cycle time 60 ms ± 5 ms for a feeding interval of 8 mm
Main power supply 30 VDC
User Manual SIPLACE 80S-20/F4 10 Component handling
Software version SR.406.xx 02/00 US Edition 10.2 Technical data for the feeder modules
421
10.2.4 24/32 mm S module
10

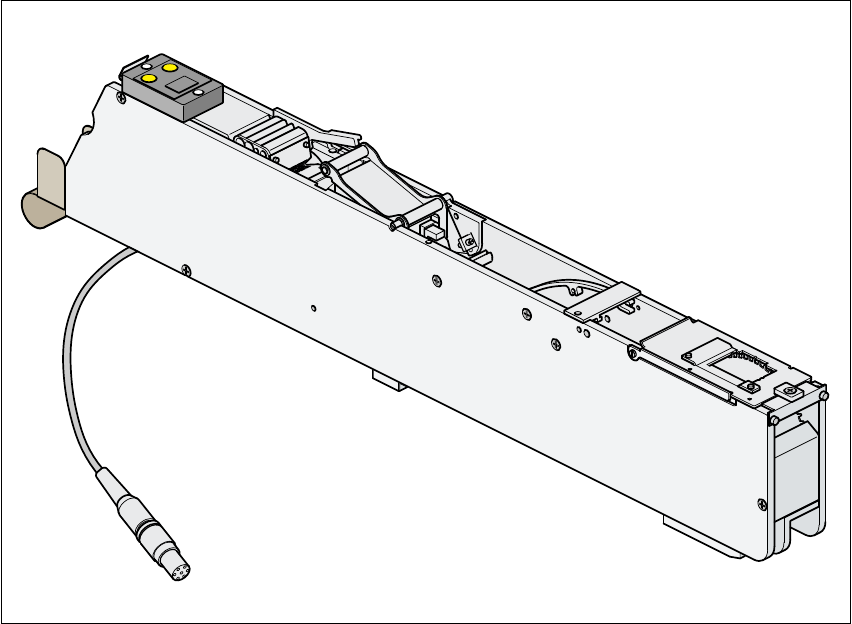

Fig. 10.2 - 4 24/32 mm S module
Item no. 00141093-xx
Width 45 mm
Tracks per module 1
Maximum number of modules 2 x 13
Magazine capacity for 7" reels Approx. 2000
Reel diameter Up to 381 mm
Feeding stroke (variable) 4 to 32 mm (in 4 mm increments)
Cycle time 60 ms ± 5 ms for a feeding interval of 8 mm
Main power supply 30 VDC
