User Manual SIPLACE 80S-20/F4 1 Introduction Software vers ion SR.406.xx 0 2/2000 Issue US 1.9 Dimensions an d weight of the machine 41 1.9 Dimensions an d weight of the mach ine 1.9.1 Dimens ions of the m achine Fig. 1.…
1 Introduction User Manual SIPLACE 80S-20/F4
1.8 Technical data – ratings Software version SR.406.xx 02/2000 Issue US
40
1.8 Technical data – ratings
1.8.1 Technical data – electrical ratings
1.8.2 Technical data – compressed air supply
1.8.3 Technical data – compressed air specification
Maximum particle size by density, based on ISO/DIS 8573-1 (class 1) 1
1.8.4 Technical data – noise emissions
1.8.5 Technical data – permissible ambient factors
Supply voltage 3 x 400 VAC ± 5 %; 50/60 Hz (Europe)
3 x 208 VAC ± 5 %; 50/60 Hz (U.S.A.)
Fuses 3 x 16 A (3 x 400 VAC, 3 x 208 VAC)
Total connected load 5 kVA
Total power 2,9 kW (S-20), 1,9 kW (F
4
)
Power failure up to 20 msec
Compressed air pressure Min. 5.5 bar (S-20), min 6 bar (F
4
), max. 8 bar
Compressed air consumption 400 Nl/min.
Operating pressure 5.2 bar (fixed)
Particle size 0.1 µm
Particle density 0.1 mg/m³
Maximum oil content (class 1) Particle density 0.01 mg/m³
Pressure dewpoint (class 4) Dewpoint +3°
Emission value at a workstation (L
pAc
) 71 dB (A) DIN EN ISO 11204 (i)
Sound power level (L
WAc
) 85 dB (A) E-DIN EN ISO 3744 (i) 001-0307
Room temperature Between 15°C and 35°C
Atmospheric humidity 30 to 75%
(but no higher than 45% on average in order to prevent
any possibility of condensation on the machine).
User Manual SIPLACE 80S-20/F4 1 Introduction
Software version SR.406.xx 02/2000 Issue US 1.9 Dimensions and weight of the machine
41
1.9 Dimensions and weight of the machine
1.9.1 Dimensions of the machine
Fig. 1.9 - 1 Dimensions of the machine
1.9.2 Technical data – dimensions, weight
Length 1587 mm with conveyor belts
Width 2455 mm with brackets
Height with warning lamp 1836 mm standard height
Ground clearance 120 mm standard height
Weight of basic module 1500 kg
Weight fully equipped approx. 2000 kg
Permissible load per unit area on foundation Min. 1000 kg/m²
Load per unit area on mounting feet 4.42 kg/cm²
1 Introduction User Manual SIPLACE 80S-20/F4
1.9 Dimensions and weight of the machine Software version SR.406.xx 02/2000 Issue US
42

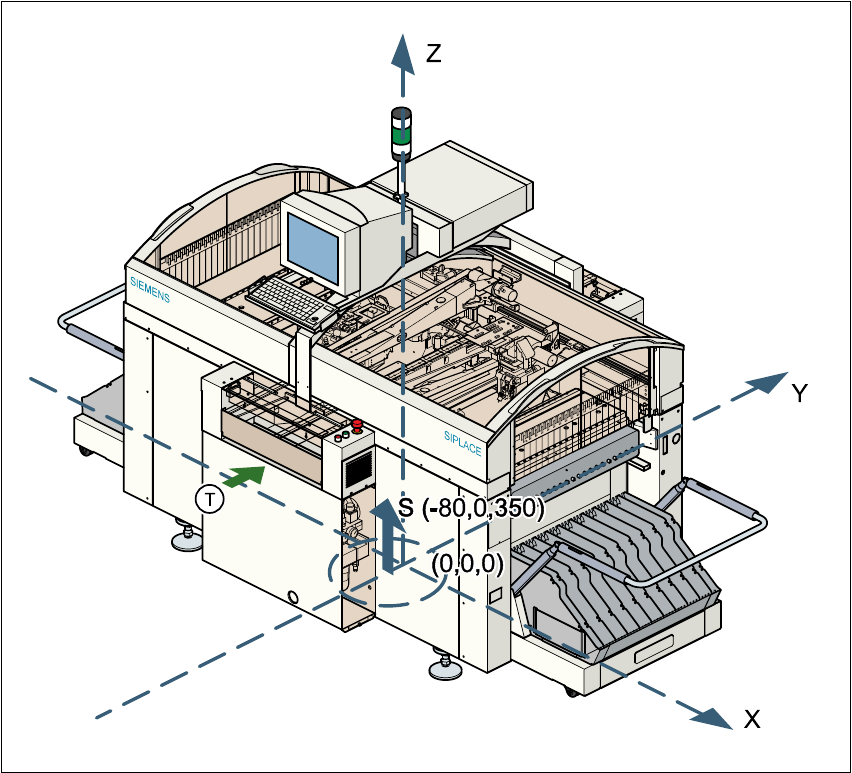

1.9.3 Center of gravity of the machine
1
Fig. 1.9 - 2 Center of gravity of the machine
X coordinate - 80 mm
Y coordinate 0 mm
Z coordinate 350 mm high
T PCB transport direction 1
1
These center of gravity coordinates relate to machines with a PCB transport height of 830 mm. 1
